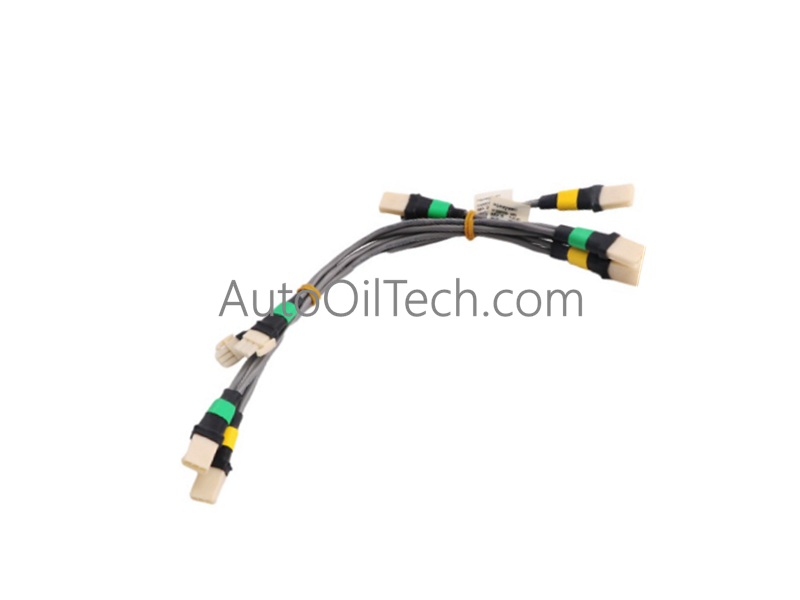

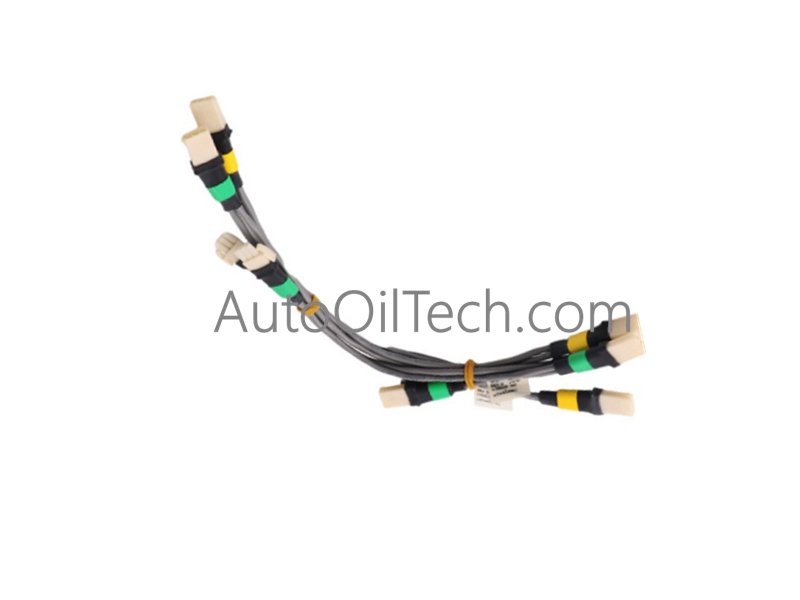

Honeywell 51202329-601 I/O Link Cable

The Honeywell 51202329-601, also cataloged as the 51202329-601 I/O Link Gray Header Cable, operates as a dedicated hardware component for localized data routing and subsystem connection within Honeywell distributed control system architectures.

Hardware Specifications

Process Control System Specifications

• 4-20 mA HART Loop Protocol Network Arbitration Alignment The I/O link header cable functions as the high-speed physical layer that routes synchronized digital input/output data between card racks and primary processing modules. By preserving signal edge definition across its interface conductors, it supports uncorrupted macrocycle execution rates for upstream 4-20 mA HART analog input cards and related safety infrastructure modules.
• Channel-to-Channel Isolation Performance and Signal Integrity The assembly features high-density protective shielding designed to limit electromagnetic interference (EMI) and capacitive cross-talk within the cable bundle. This architecture maintains strict signal isolation parameters between processing channels, protecting the fieldbus communications from high-frequency electrical spikes generated by adjacent cabinet switching components.

Frequently Asked Questions

Q: What is the primary functional deployment of a gray-jacketed I/O link header cable within a redundant node configuration?

A: In Honeywell distributed control architectures, the gray jacket color is used to designate and route primary data links within the panel layout. It isolates the standard communication paths from alternative or specialty network links, ensuring clean physical identification during maintenance routines.

Q: Can this cable assembly be hot-swapped while the adjacent I/O modules are fully energized?

A: No. Disconnecting an active I/O link header cable breaks the serialized communication bus path instantly, causing immediate loss of data tracking for all downstream modules. The associated control loops must be placed in manual or the node safely de-energized before removing the header interface.

Field Installation Guidelines

• Chassis Alignment and Minimum Bend Radius Controls Run the gray header cable through the internal panel wiring trays, verifying that the connectors align cleanly with the target module backplane ports. Maintain standard industrial bend radius constraints to avoid mechanical tension and prevent deformation of the internal shielding material.
• Physical Interconnection and Retention Locking Align the pre-terminated connectors with the matching I/O link interface ports on the module backplanes. Press straight inward until the connectors snap firmly into place, checking that the physical connection is secure to prevent intermittent data faults caused by low-frequency plant vibrations.
