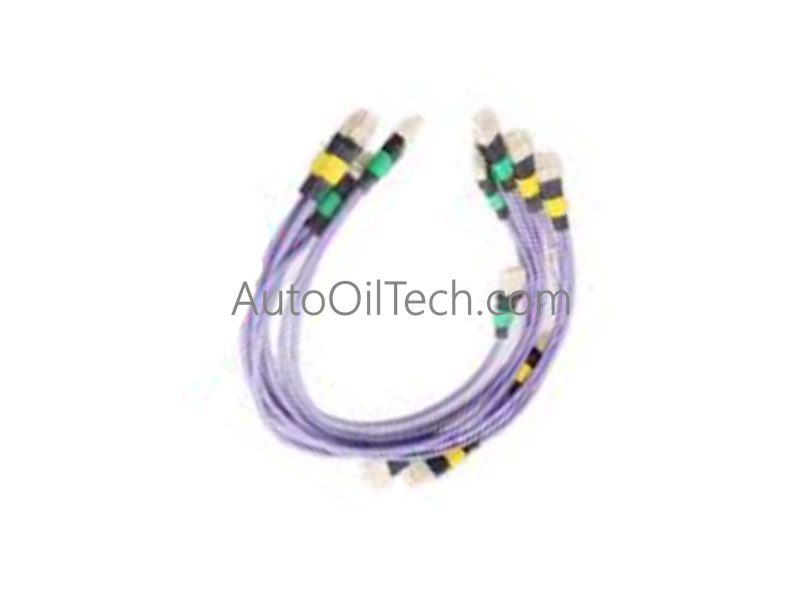

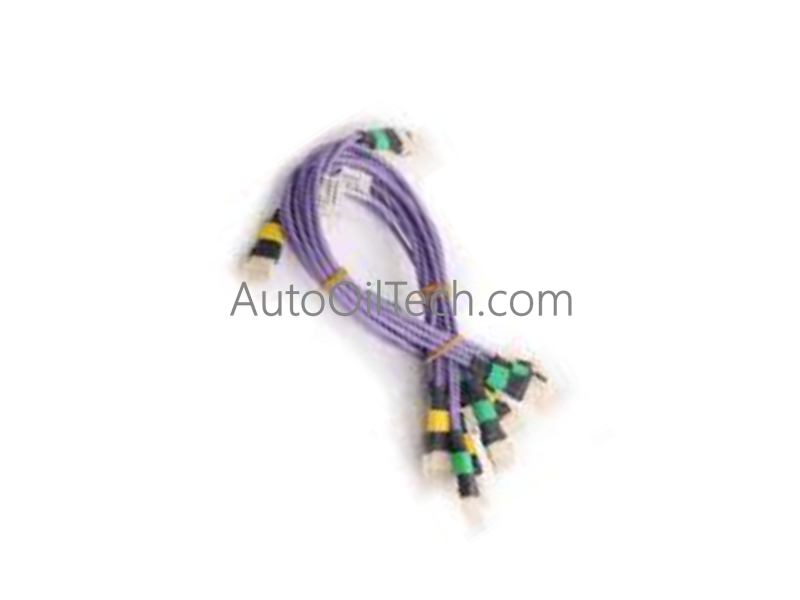

Honeywell 51202329-111 Network Drop Cables

The Honeywell 51202329-111, also cataloged as the 51202329-111 Violet Drop Cable, operates as a dedicated hardware component for localized data routing and multi-drop communication within Honeywell distributed control system architectures.

Hardware Specifications

Process Control System Specifications

• 4-20 mA HART Loop Protocol Network Arbitration Alignment The multi-drop cable acts as the high-speed physical link layer that routes serialized digital I/O data back to the primary system controllers. By preserving signal edge definition across the 6 network drops, it supports uncorrupted macrocycle execution rates for upstream 4-20 mA HART analog input cards and related safety infrastructure modules.
• Channel-to-Channel Isolation Performance and Signal Integrity The multi-drop assembly features high-density protective shielding designed to limit electromagnetic interference (EMI) and capacitive cross-talk within the cable bundle. This architecture maintains strict signal isolation parameters between processing channels, protecting the fieldbus communications from high-frequency electrical spikes generated by adjacent cabinet switching components.

Frequently Asked Questions

Q: What is the specific engineering purpose of the "Yellow Label (Cable A)" and "Violet" color designation?

A: The violet jacket color paired with the yellow label identifies the primary data path of a redundant I/O link topology. It must be installed in parallel with a corresponding "Cable B" assembly to establish fully isolated, redundant communication routing.

Q: How does the fixed 6-inch pitch affect the mounting alignment of the I/O modules?

A: The 6-inch (152 mm) pitch matches the physical layout of standard input/output terminal blocks. This pre-engineered spacing allows plug-and-play installation straight down the vertical card rack, minimizing installation complexity and preventing excess cable loop accumulation.

Field Installation Guidelines

• Chassis Alignment and Minimum Bend Radius Restrictions Run the violet drop cable through the internal panel wiring trays, verifying that the multi-drop branches align with the target module connectors. Maintain standard industrial bend radius constraints to avoid mechanical strain and prevent deformation of the internal shielding material.
• Physical Interconnection and Retention Locking Align the pre-terminated connectors with the matching I/O link interface ports on the module backplanes. Press straight inward until the connectors snap firmly into place, checking that the physical connection is secure to prevent intermittent data faults caused by low-frequency plant vibrations.
