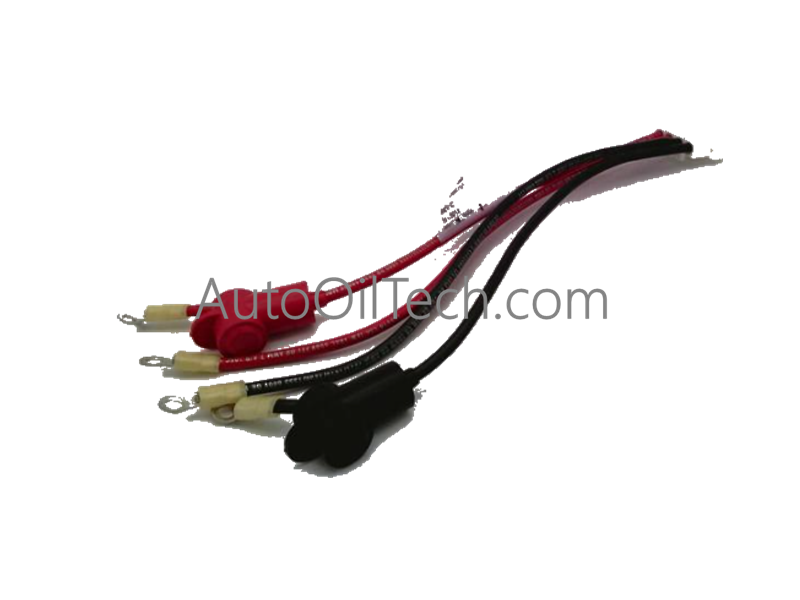

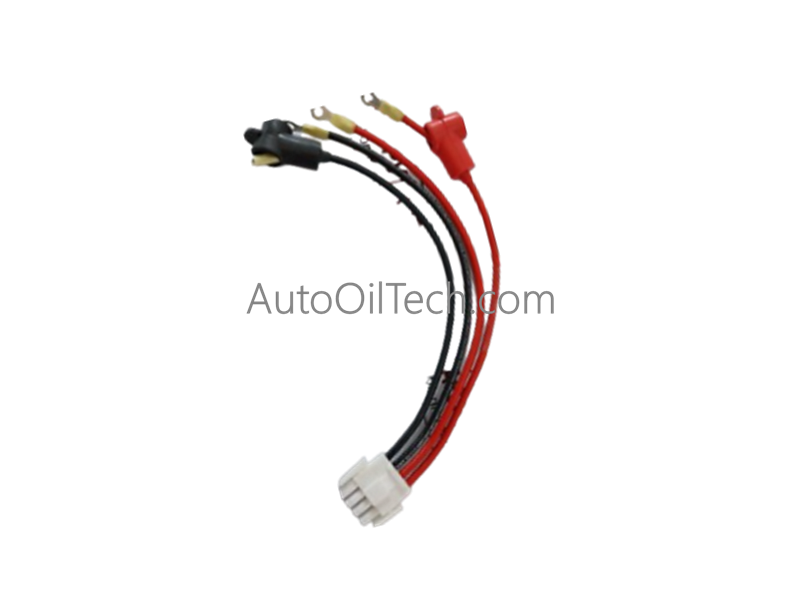

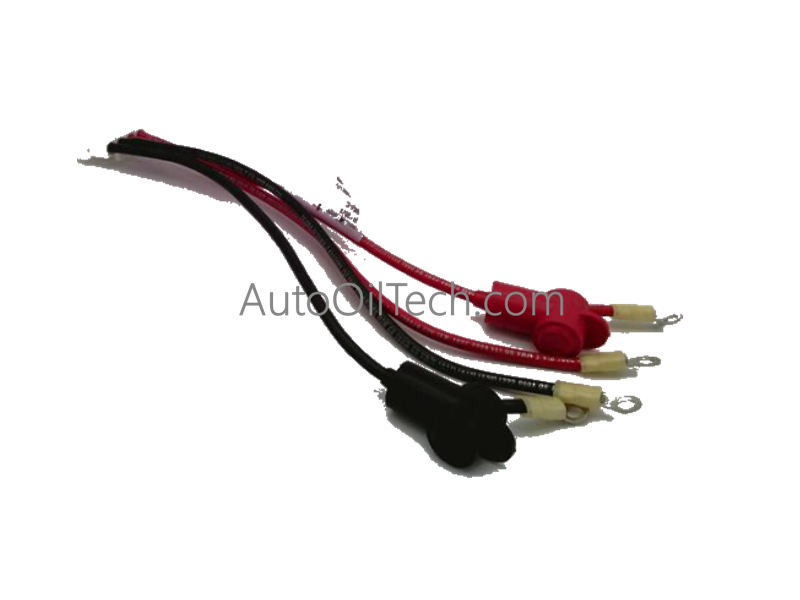

Honeywell 51202324-110 Wire Harness

The Honeywell 51202324-110, also cataloged as the 51202324-110 Wire Harness w/Connector, operates as a dedicated hardware component for localized data routing and internal signal distribution within Honeywell control system enclosures.

Hardware Specifications

Process Control System Specifications

• 4-20 mA HART Loop Protocol Network Arbitration Alignment The 4-wire harness provides internal point-to-point electrical pathways that transfer low-voltage analog signals from interface backplanes to terminal blocks. By maintaining low contact resistance across its integrated connector pins, it ensures accurate millivolt and milliamp signal transmission for adjacent 4-20 mA HART loop variables and analog I/O sub-circuits.
• Channel-to-Channel Isolation Performance Support The internal copper conductors are bound by high-dielectric protective insulation sleeves that limit stray capacitive cross-talk between the active wires. This physical design minimizes noise coupling and preserves signal integrity when routed adjacent to high-density digital or analog control structures.

Frequently Asked Questions

Q: Can the 51202324-110 wire harness be split or modified to connect to third-party terminal bars?

A: No. Modification or manual cutting of the factory-molded 4-pin connector housing compromises the electrical contact alignment and nullifies continuity properties. The wire harness must be installed as a factory-assembled unit into compatible Honeywell backplane headers.

Q: Is this wire harness assembly rated for external field conduit runs across plant areas?

A: No. The light mechanical construction and low-weight profile of this harness are intended strictly for internal cabinet interconnection or short-run deployment inside localized industrial computer housings, isolated from harsh external environments.

Field Installation Guidelines

• Chassis Alignment and Wire Management Tracking Route the 4-wire harness cleanly through internal panel wireways, keeping its length separated away from heavy AC power cables or relay switching rails. Avoid tight physical pulling that introduces structural tension to the connector strain relief boots.
• Connector Mating and Pin Interconnection Power down the host panel before installation. Align the keyed connector housing directly with the matching backplane header pins, press straight inward until the mechanical lock seats completely, and verify a rigid physical contact to resist localized plant equipment vibrations.
