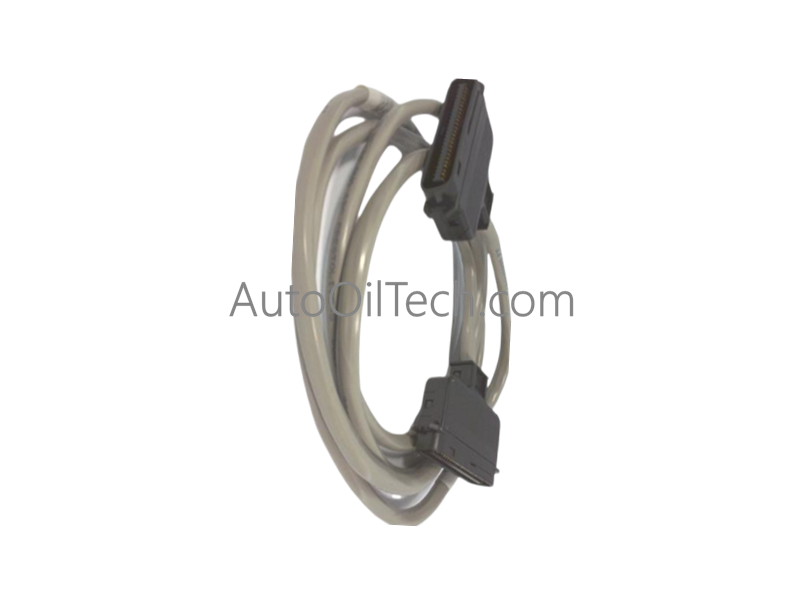

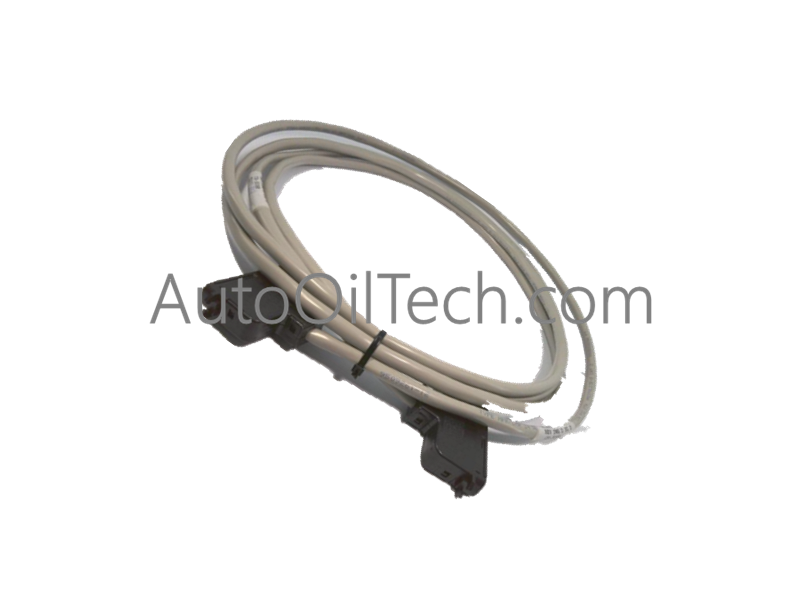

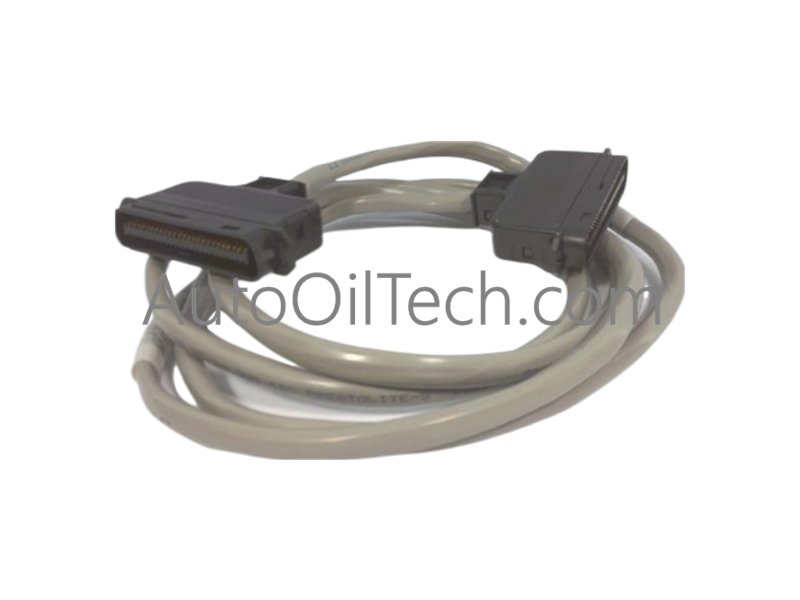

The Honeywell 51201420-005, also cataloged as the 51201420-005 Power Cable, operates as a dedicated hardware component for power transmission within PLC and machine control architectures.
Suffix Breakdown & Model Matrix
The catalog designation 51201420-005 defines a specific hardware assembly and length specification. The base model number 51201420 identifies the power cable configuration, while the -005 suffix indicates the standard length of 5 meters.
Hardware Specifications
Parameter
Specification
Model
51201420-005
Brand
Honeywell
Origin
Global Manufacturing Facility
Weight
1.79 lbs
Dimensions
Standard Length: 5 meter
Operating Temp
Not Specified
Power Consumption
Passive Component (0 W)
Category
PLCs/Machine Control, PLC Module/Rack
Status
Discontinued by Manufacturer
4-20 mA HART Loop Protocol and Channel Isolation
The power cable assembly provides reliable electrical interconnection across control hardware environments. Key operational behaviors include:
Maintaining stable physical power delivery paths across a 5-meter span to support connected PLC modules and rack components.
Ensuring secure physical termination to prevent intermittent electrical connections under standard industrial operating conditions.
Providing durable shielding and insulation appropriate for machine control applications.
Frequently Asked Questions
Q: What is the length of the 51201420-005 power cable?
A: The cable has a standard length of 5 meter.
Q: Is this part currently active or discontinued by the original manufacturer?
A: This component has been discontinued by the manufacturer, though distributor warranties may apply.
Q: What category of industrial equipment does this part belong to?
A: It belongs to the PLCs/Machine Control and PLC Module/Rack categories.
Field Installation Guidelines
Verify that all associated power supplies and system racks are fully de-energized and locked out before installing or routing the power cable.
Route the 5-meter cable carefully through control enclosures, avoiding sharp edges and heavy mechanical pinch points.
Secure the connector ends firmly to their designated PLC module or rack power ports to ensure proper electrical contact.
Confirm circuit continuity and verify voltage levels prior to restoring power to the control system.
