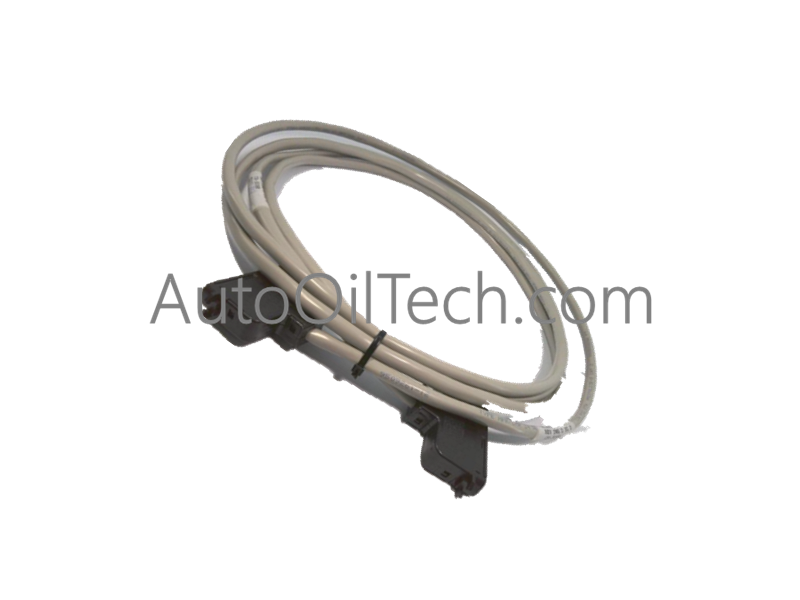

Honeywell 51201420-004 Power Cable

The Honeywell 51201420-004, also cataloged as the 51201420-004 Power Cable, operates as a dedicated hardware component for power distribution between system modules within Honeywell distributed control system architectures.

Hardware Specifications

Process Control and DCS Characteristics

• 4-20 mA HART loop protocol: While primarily a power distribution component, the cable is engineered to maintain low-impedance paths, minimizing voltage drops that could otherwise interfere with the signal stability of HART-enabled instrumentation loops.
• FOUNDATION Fieldbus / Profibus PA connectivity: The cable construction ensures electrical continuity required for powering fieldbus segments, supporting the power requirements of field devices connected to the control rack.
• Channel-to-channel isolation: The physical design provides sufficient insulation to prevent electrical shorting between power conductors, contributing to the overall electrical integrity of the control system rack.
• Cold junction compensation (CJC): The cable material composition is designed to minimize thermal drift, ensuring that local power delivery does not introduce unintended temperature offsets in proximity to sensitive analog measurement modules.

Frequently Asked Questions

Q: Is the 51201420-004 cable rated for external field use?

A: No. This cable is designed for internal use within control cabinets or marshalling panels. It is not rated for exposure to environmental elements, UV radiation, or harsh industrial chemicals.

Q: Can this cable be trimmed to a shorter length?

A: Field modification of these cables is not recommended. Trimming may compromise the integrity of the factory-molded connectors and the safety rating of the power distribution assembly.

Field Installation Guidelines

• Mounting: Ensure both connectors are correctly oriented and fully seated into the corresponding power ports. Use the connector locking mechanisms to ensure a secure, vibration-resistant connection.
• Grounding: While this cable focuses on power delivery, ensure the associated system chassis and power supplies are correctly bonded to the cabinet’s protective earth (PE) bus to maintain safety standards.
• Wiring: Maintain clear segregation between this power cable and sensitive analog signal wiring. Avoid running the cable alongside high-frequency communication lines to prevent inductive noise injection into the control system.
