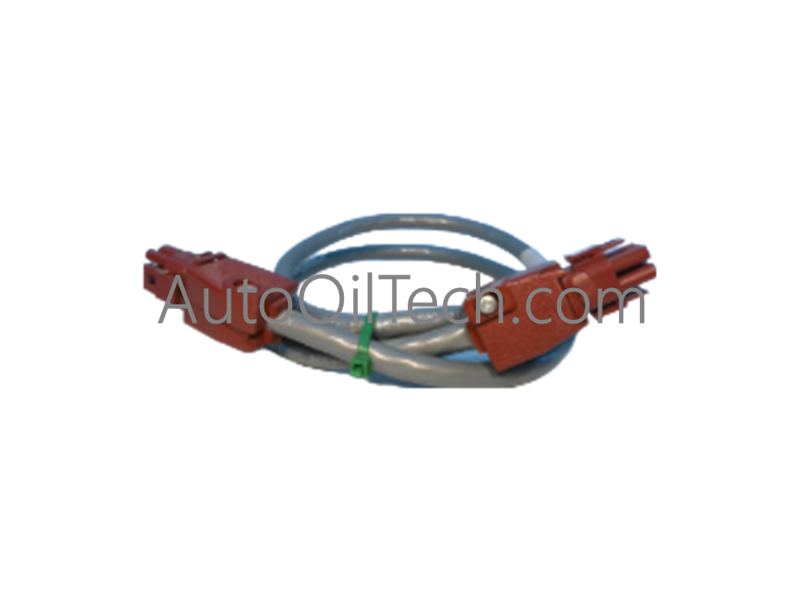

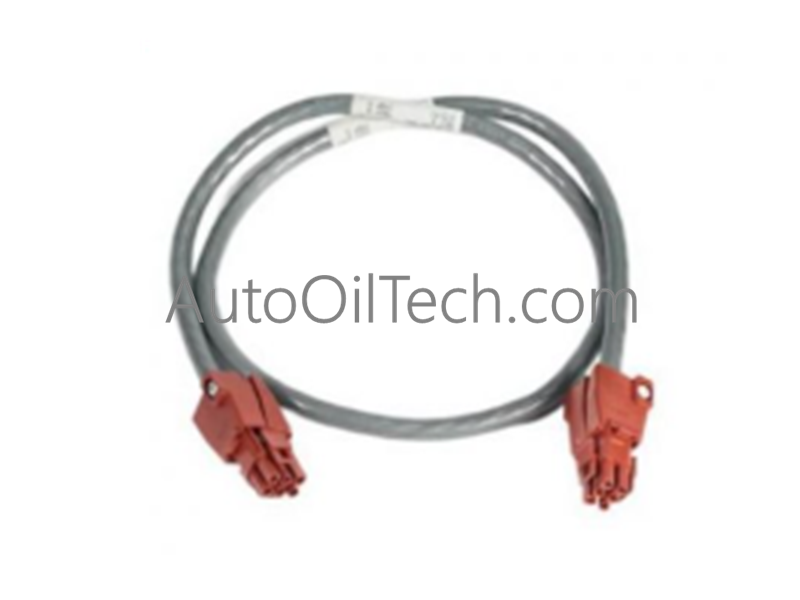

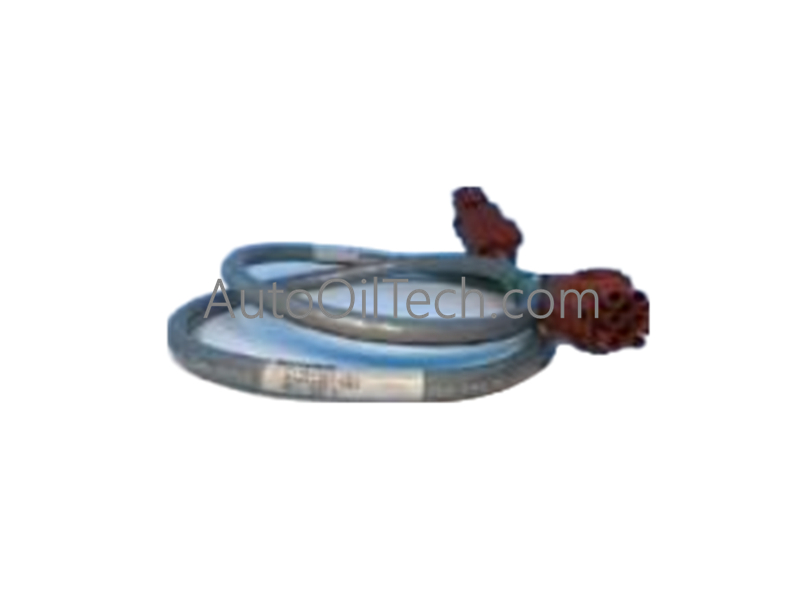

Honeywell 51201397-915 Power Cable Assembly

Configured for power distribution between control hardware in Honeywell distributed control and process automation platforms, the Honeywell 51201397-915 (51201397-915 Power Cable Assembly) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The catalog designation 51201397-915 defines a specific physical assembly variant. The base number 51201397 denotes the power cable configuration, while the -915 suffix designates the standard length of 1.5 meters and the male-to-male connector profile without an I/O Link Protection Module.

Hardware Specifications

Channel-to-Channel Isolation and Loop Integrity

The power cable assembly maintains reliable signal and power conditions across distributed control nodes via specialized electrical design. Key operational characteristics include:

• Utilizing high-conductivity annealed copper conductors optimized for low voltage drop across continuous-duty control cabinets.
• Incorporating braided copper shielding with full-length coverage to provide robust attenuation against electromagnetic and radio frequency interference.
• Employing a flame-retardant industrial PVC outer jacket to ensure insulation stability and environmental protection in enclosed industrial racks.

Frequently Asked Questions

Q: What are the connector configuration and standard length specifications for the 51201397-915?

A: It features a male-to-male connector configuration with a standard length of 1.5 meters.

Q: Is this power cable assembly compatible with configurations requiring an I/O Link Protection Module?

A: No. This assembly is specifically intended for installations where the I/O Link Protection Module is omitted.

Q: What are the voltage and current limits of this cable?

A: It is rated for up to 300 VAC and supports a typical continuous current capacity of up to 15 A depending on the installation environment.

Field Installation Guidelines

1. Ensure that all associated power supplies are fully de-energized and locked out (LOTO) prior to connecting or disconnecting the cable.
2. Route the assembly cleanly through control cabinets and equipment racks, avoiding sharp metallic edges or extreme thermal sources.
3. Verify that the operating voltage does not exceed 300 VAC and that current loads remain within the 15 A continuous rating before restoring system power.
4. Secure the factory-installed industrial connectors firmly into their designated controller rack or I/O module ports.
