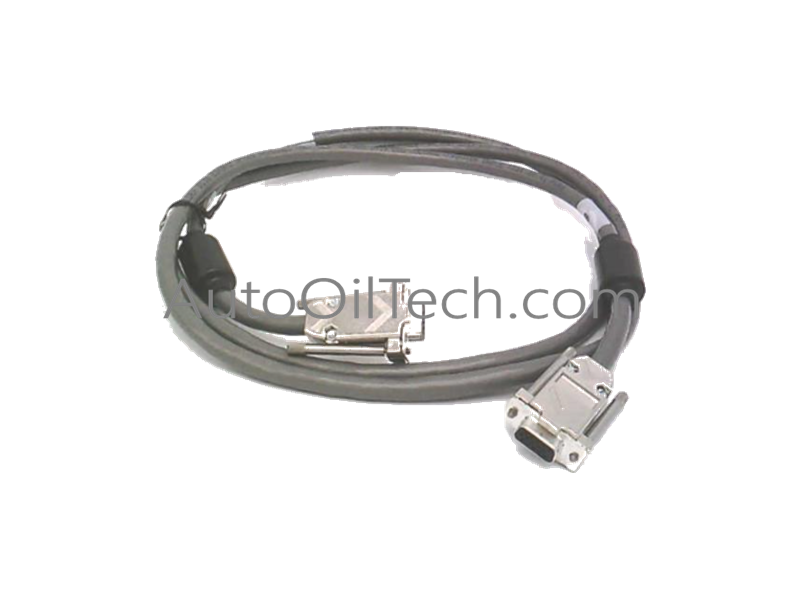

Honeywell 51201397-006 Power Cable Assembly

Configured for internal power distribution in Honeywell distributed control and process automation architectures, the Honeywell 51201397-006 (MU-KDPR06 Power Cable Assembly) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The catalog designation 51201397-006 incorporates specific revision and platform markers. The base core designation 51201397 identifies the OEM power cable assembly configuration, while the -006 suffix corresponds to revision level Rev. D and length-specific parameters for control panel and system rack installations.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

The power cable assembly maintains consistent electrical performance under continuous industrial load conditions. Key operational behaviors include:

• Delivering stable voltage transmission through high-quality industrial copper conductors to reduce the risk of voltage drops within control systems.
• Utilizing a noise-resistant construction that minimizes susceptibility to electrical interference when routed alongside control and signal wiring.
• Incorporating a flame-retardant PVC outer jacket that provides abrasion resistance and insulation stability for long service life inside industrial enclosures.

Frequently Asked Questions

Q: Can this power cable assembly be used in non-Honeywell automation platforms?

A: No. Use outside Honeywell-certified systems is not recommended due to connector and electrical specification differences.

Q: What systems are explicitly compatible with the 51201397-006 assembly?

A: It is designed specifically for use with Honeywell control platforms, including TDC 3000 systems, Experion PKS architectures, and associated power distribution or peripheral modules.

Q: What materials are used for the conductor and outer jacket?

A: The assembly uses industrial-grade copper conductors and a flame-retardant PVC insulation and jacket material.

Field Installation Guidelines

1. Ensure all associated power sources are completely de-energized and locked out before installing or disconnecting the cable assembly within control panels.
2. Route the cable carefully through system racks and control cabinets, leveraging its optimized length and flexibility for clean physical layouts.
3. Maintain adequate separation or follow standard routing practices to keep the assembly clear of severe thermal hazards, protecting the flame-retardant PVC jacket from mechanical damage.
4. Verify that the operating voltage does not exceed the 300 V rating prior to energizing the system.
