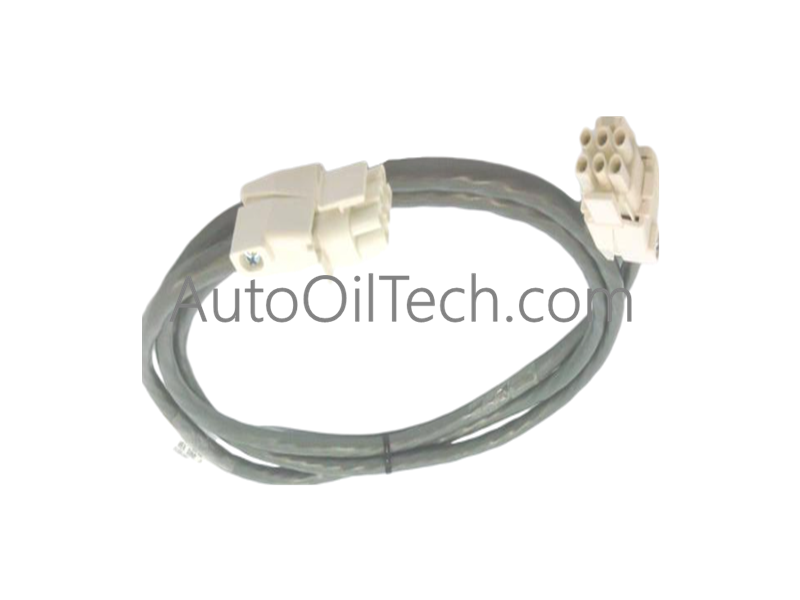

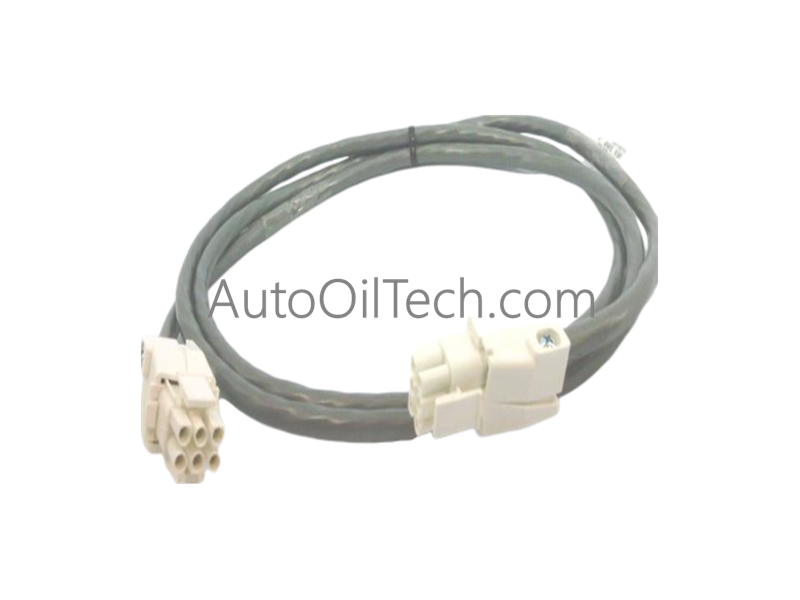

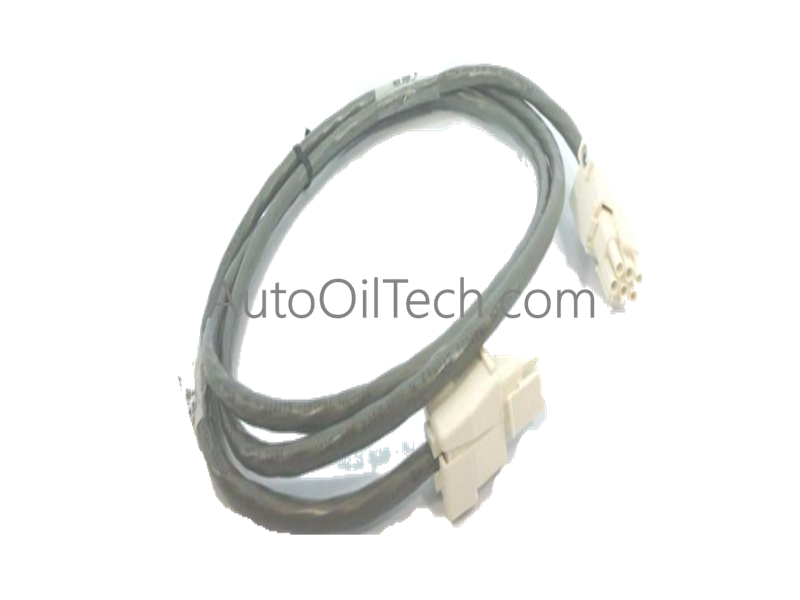

Honeywell 51201397-002 XPM Power Cable

The Honeywell 51201397-002, also cataloged as the 51201397-002 Power Cable, operates as a dedicated hardware component for localized DC power distribution and subsystem interconnection within Honeywell Process Manager architectures.

Hardware Specifications

Process Control System Specifications

• 4-20 mA HART Loop Protocol Network Arbitration Alignment The power cable delivers stable operational voltages from the Extension Process Manager (XPM) core sub-assembly down to the DI or GI Power Distribution Assemblies. By stabilizing the secondary power rails that feed loop-powered field barriers and isolation amplifiers, it ensures uncorrupted signal thresholds for adjacent 4-20 mA HART analog inputs and binary field sensors.
• Channel-to-Channel Isolation and Noise Immunity Support The heavy-gauge internal copper conductors are configured to provide low-impedance DC pathways, minimizing localized voltage drops across the 2-meter run. This layout prevents transient load switching on digital input channels from introducing ground bounce or common-mode electrical noise into nearby low-voltage analog-to-digital processing sub-circuits.

Frequently Asked Questions

Q: What is the significance of the "Without I/O Link Protector Module" specification for this cable?

A: This means the 51201397-002 is a direct power delivery cable that does not contain inline surge suppression or surge clamping networks. It is designed for standard power routing within or between enclosures where downstream surge protection is handled independently by the power distribution assembly.

Q: Can this power cable be deployed to span between different physical cabinet enclosures?

A: Yes. The structural insulation profile of the cable assembly is rated for both internal cabinet wiring and external conduit routing between adjacent panel enclosures, provided it is protected from mechanical shearing and fluid exposure.
