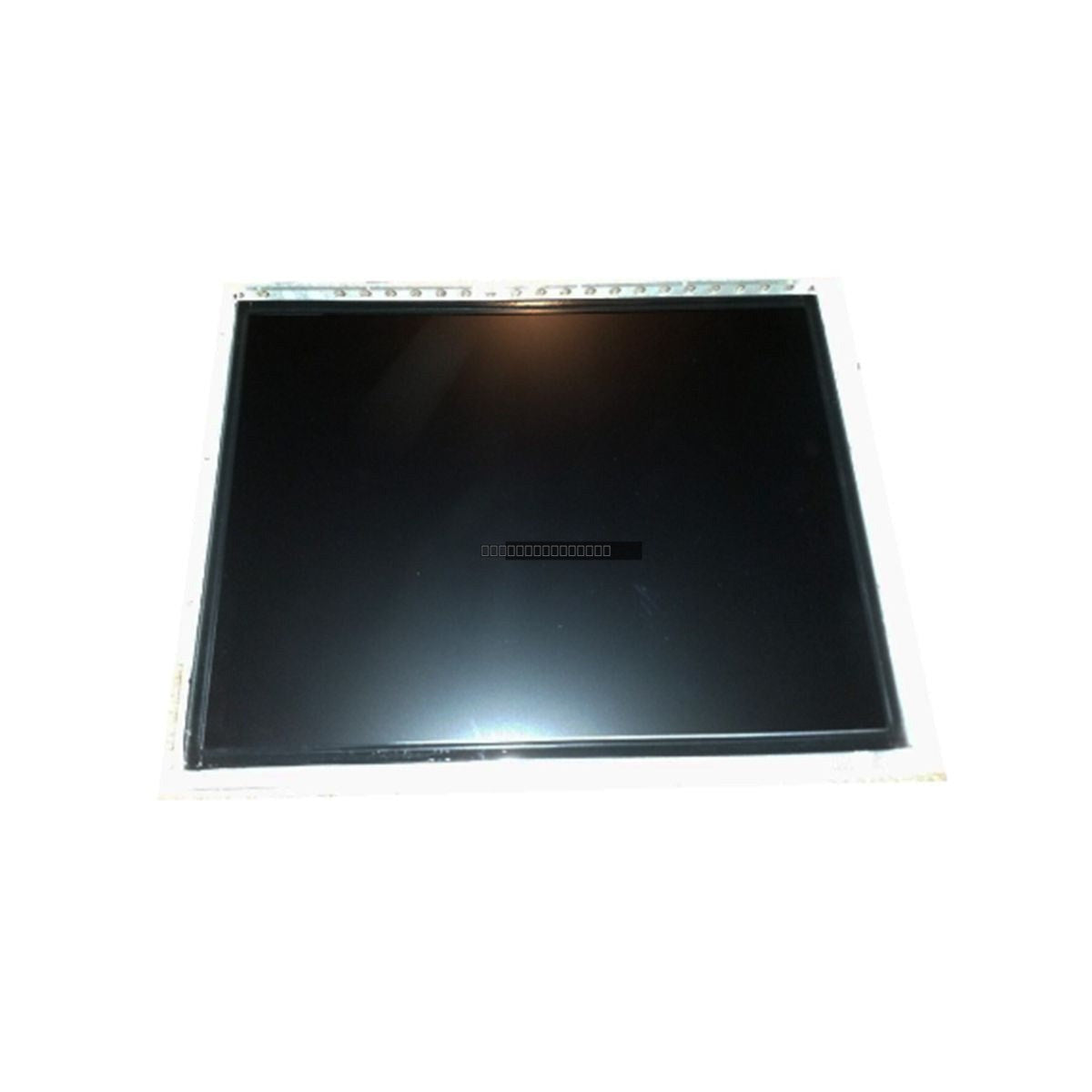

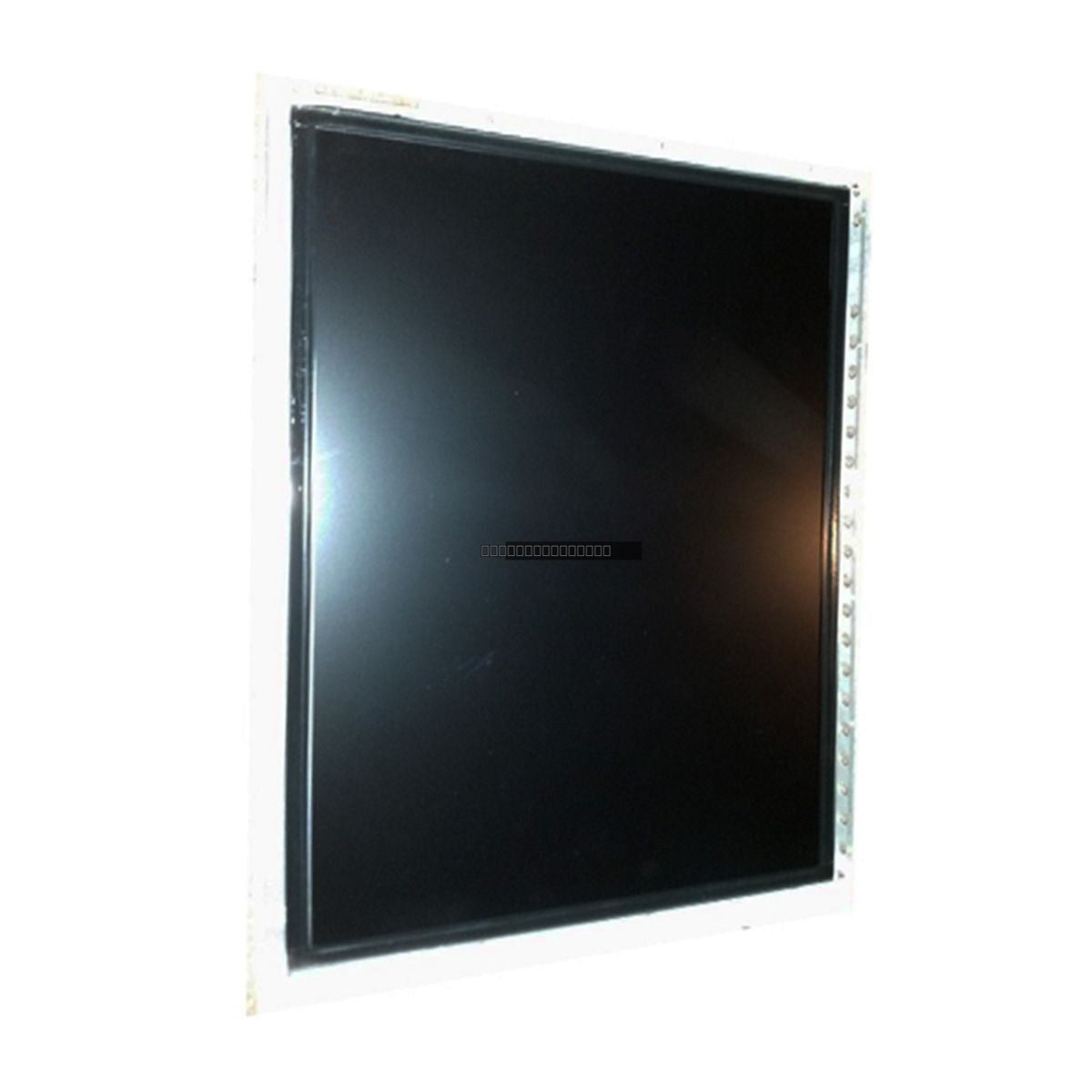

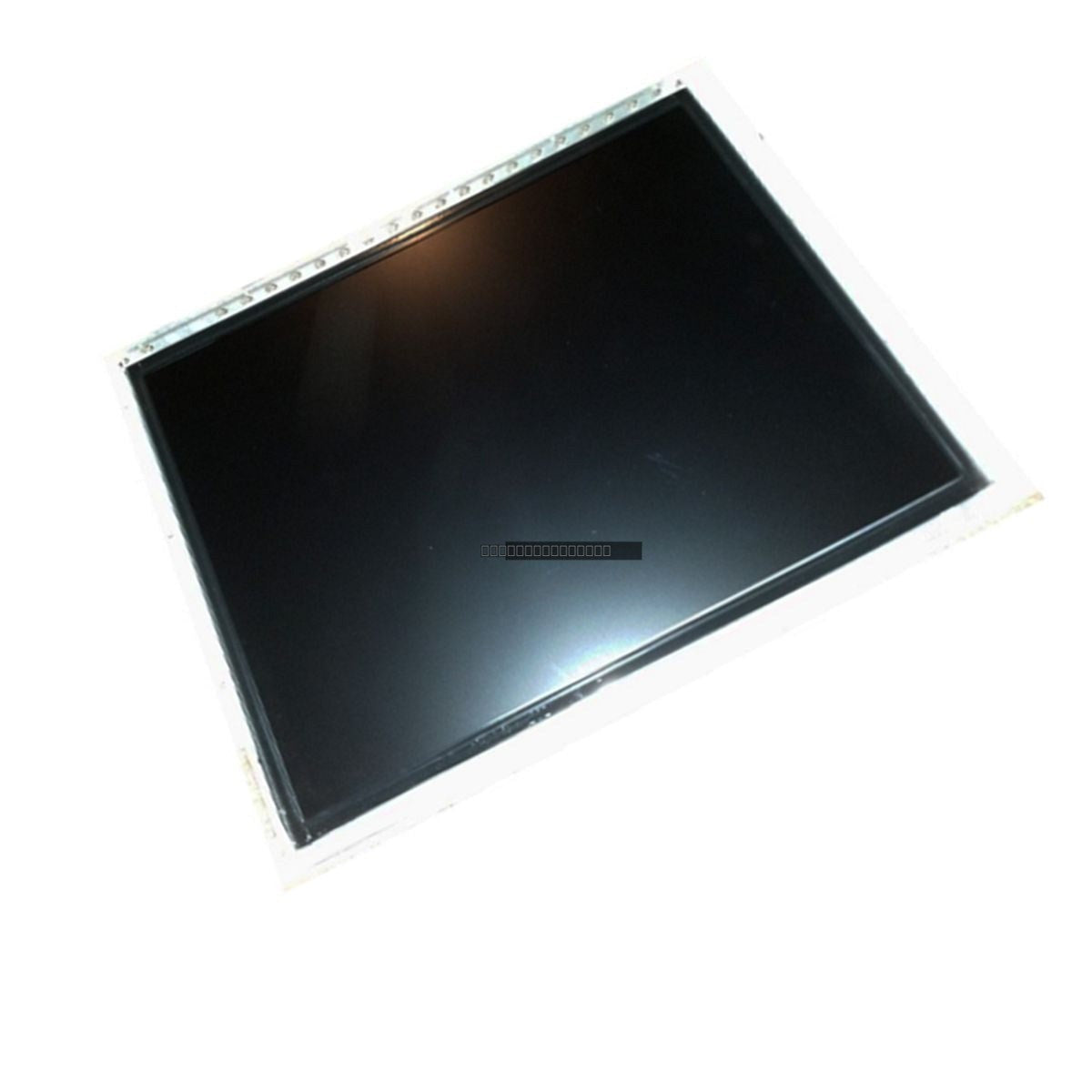

Honeywell 51199194-100 LCD Flat Panel Display Z Console Module

Description

The Honeywell 51199194-100 is a 20.1-inch industrial-grade LCD flat panel display engineered specifically for integration with Z-Console Universal Station environments. This unit serves as a critical operator interface within Honeywell distributed control systems, including Experion PKS and legacy platforms. It is optimized for continuous 24-hour monitoring in demanding industrial settings, such as power generation, petrochemical processing, and oil refining, where it facilitates the clear visualization of process graphics, system alarms, and operator inputs.

Features

• 20.1-inch active display area optimized for industrial HMI visualization.
• Designed for seamless integration with Honeywell Z-Console Universal Station architectures.
• Engineered for continuous duty cycles in control room environments.
• Robust mechanical construction ensuring stability and vibration resistance during panel or rack mounting.
• Supports deterministic screen refresh rates suitable for high-density process graphics and alarm management.

Applications

This display module is primarily utilized in legacy Honeywell control room environments where specific panel dimensions and interface requirements necessitate the use of original hardware. It is a key component for maintaining operational visibility in systems where full-scale migration to newer HMI standards has not yet been implemented.

Technical Specifications

Installation Guidelines

• Ensure the mounting surface is clean, level, and capable of supporting the weight of the display unit.
• Verify that the control room environment remains within the specified operating temperature range of 0 deg C to 50 deg C to prevent premature backlight degradation.
• Ensure adequate airflow around the rear of the unit to dissipate heat generated during continuous operation.
• Power down the workstation and disconnect all video and power cables before performing any installation or maintenance tasks.
• Use appropriate grounding procedures to prevent electrostatic discharge (ESD) from damaging the internal display circuitry.
• Route video signal cables away from high-voltage lines or high-EMI sources to maintain signal integrity.

FAQ

Is the 51199194-100 a current production model?
No, this model is discontinued. It is intended for use in legacy support environments and maintenance of existing Honeywell control systems.

What systems is this display compatible with?
This unit is designed for Z-Console Universal Station environments and is compatible with various Honeywell distributed control platforms, including legacy Experion PKS configurations.
