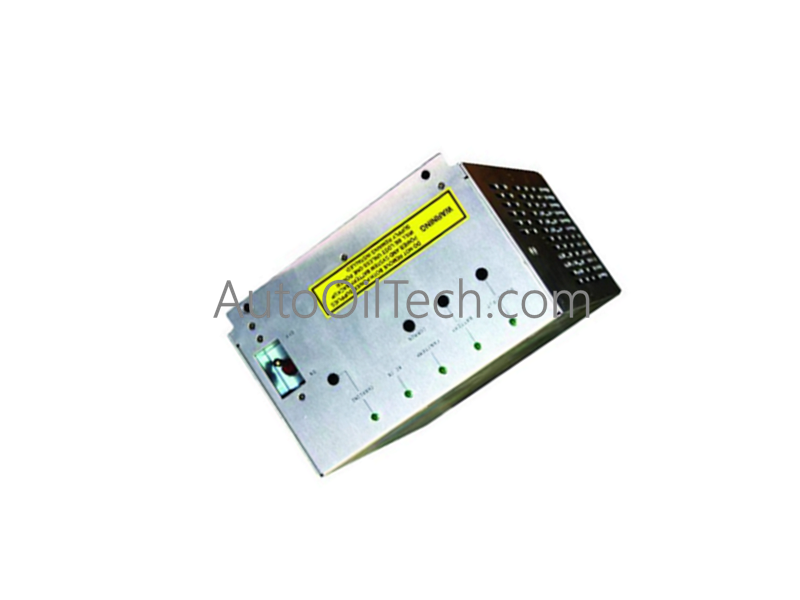

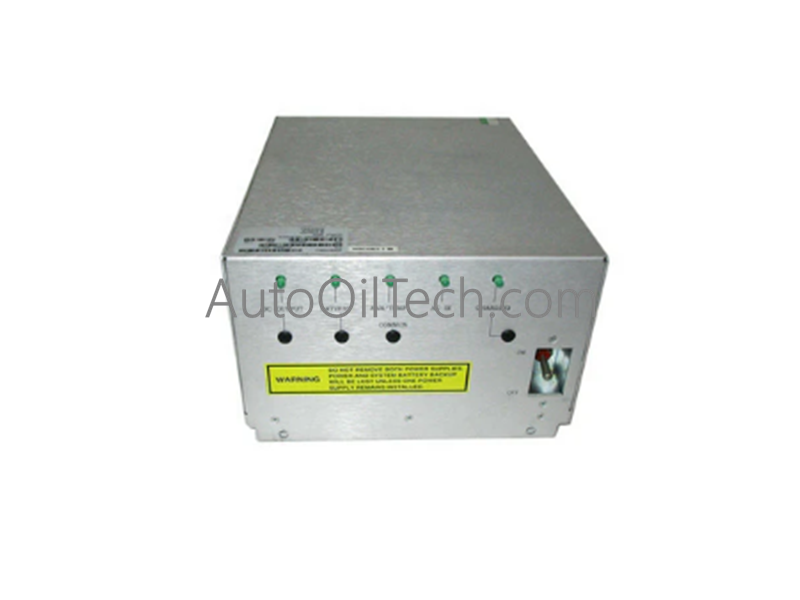

The Honeywell 51198947-200, also cataloged as the 51198947 HPM Power Supply, operates as a dedicated hardware component for AC-to-DC power conversion within Honeywell Distributed Control Systems (DCS) and High-Performance Process Manager (HPM) architectures.
Hardware Specifications
Parameter
Specification
Model
51198947-200
Brand
Honeywell
Origin
USA
Weight
3 kg
Dimensions
30 cm x 20 cm x 25 cm
Operating Temp
0 to 60 deg C
Power Consumption
Variable based on load limits
Input Voltage
Standard AC range (Global compatibility)
Output Voltage
Regulated DC output for system modules
System Compatibility
Honeywell DCS / HPM / PLC Platforms
Process Control Power Infrastructure
Channel-to-Channel Isolation The power module design enforces strict galvanic separation between the input line distribution and the internal system backplane logic. This design pathway blocks common-mode noise propagation and voltage transients from corrupting critical data loops, preventing hardware damage during industrial power surges.
DCS Loop Stabilization Engineered to support foundational DCS infrastructures, the module delivers consistent voltage rail regulation. This ensures that field instrumentation interfaces, including 4-20 mA HART loops and FOUNDATION Fieldbus segments, receive clean, uninterrupted power required for precise analog-to-digital signal processing.
Frequently Asked Questions
Q: Can the 51198947-200 power supply module be replaced while the system is online?
A: Replacement parameters are determined by the specific enclosure configuration. In standard non-redundant backplane deployments, removing the power supply will interrupt the DC voltage rail, causing dependent controller drops. Hot-swap execution is only permissible when installed in fully redundant, parallel-wired power chassis configurations.
Q: How does this power module handle heat dissipation under full load conditions within closed cabinets?
A: The module relies on natural convection cooling across its integrated heat sink profiles. To prevent thermal derating, users must maintain a minimum clearance of 50 mm above and below the module chassis during cabinet layout planning.
