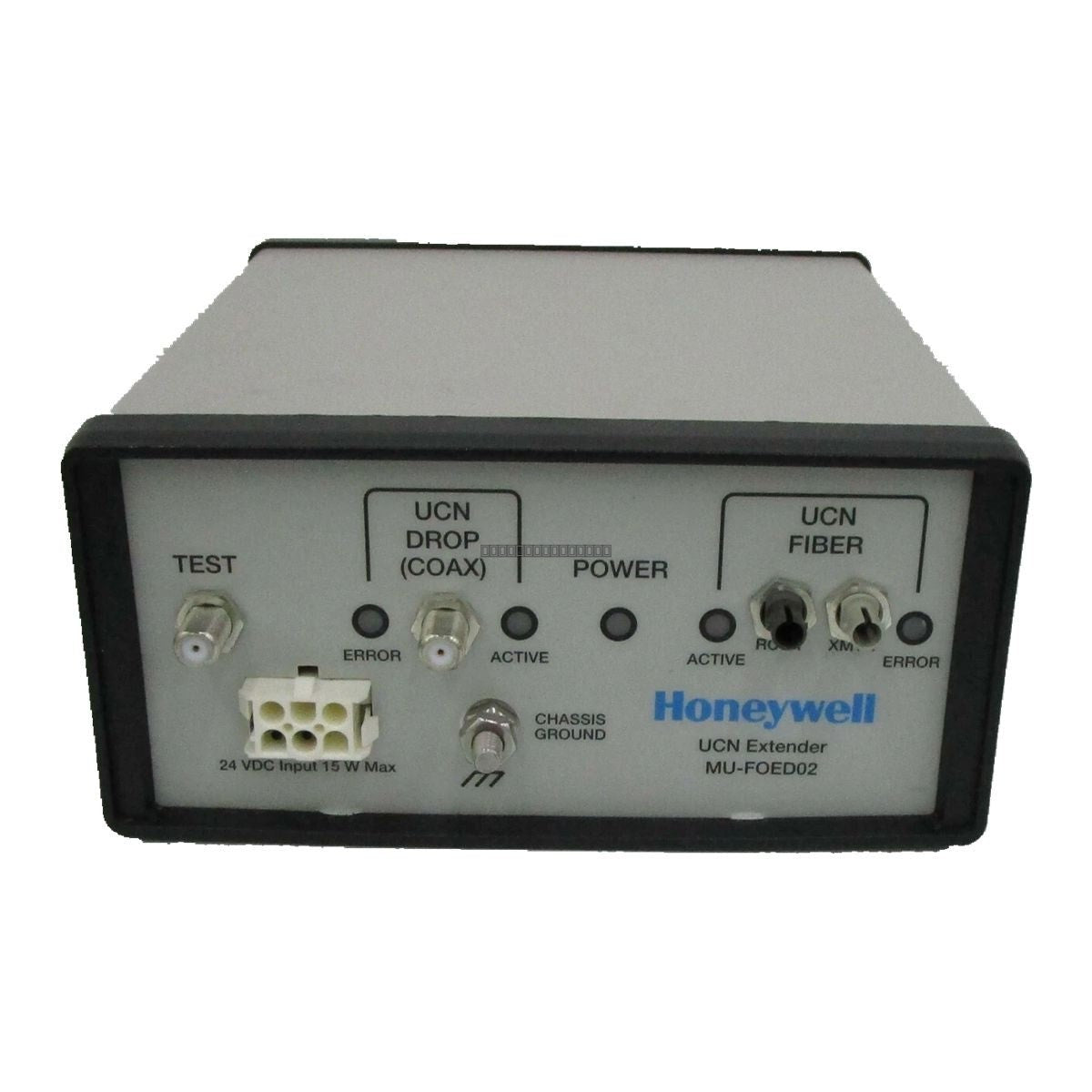

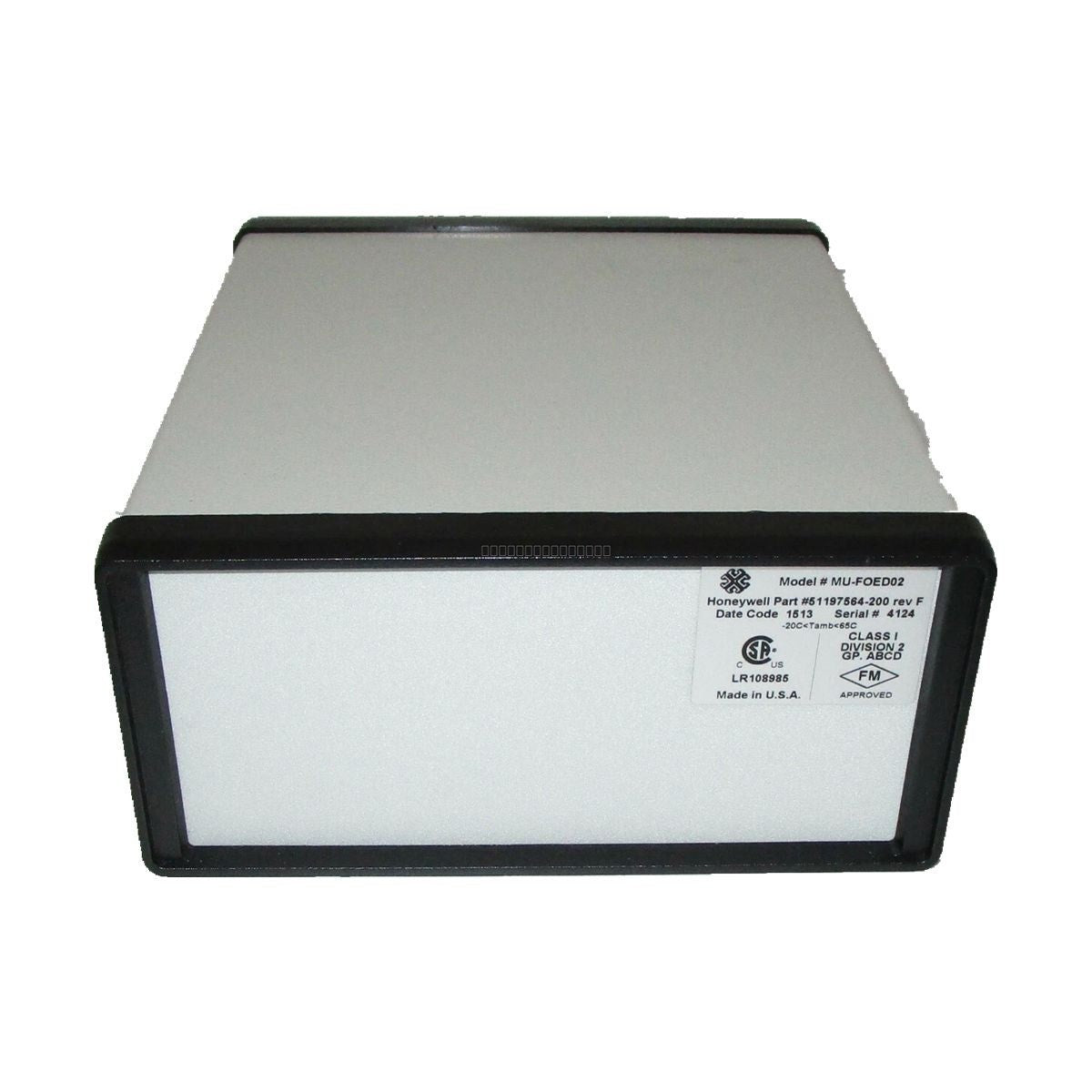

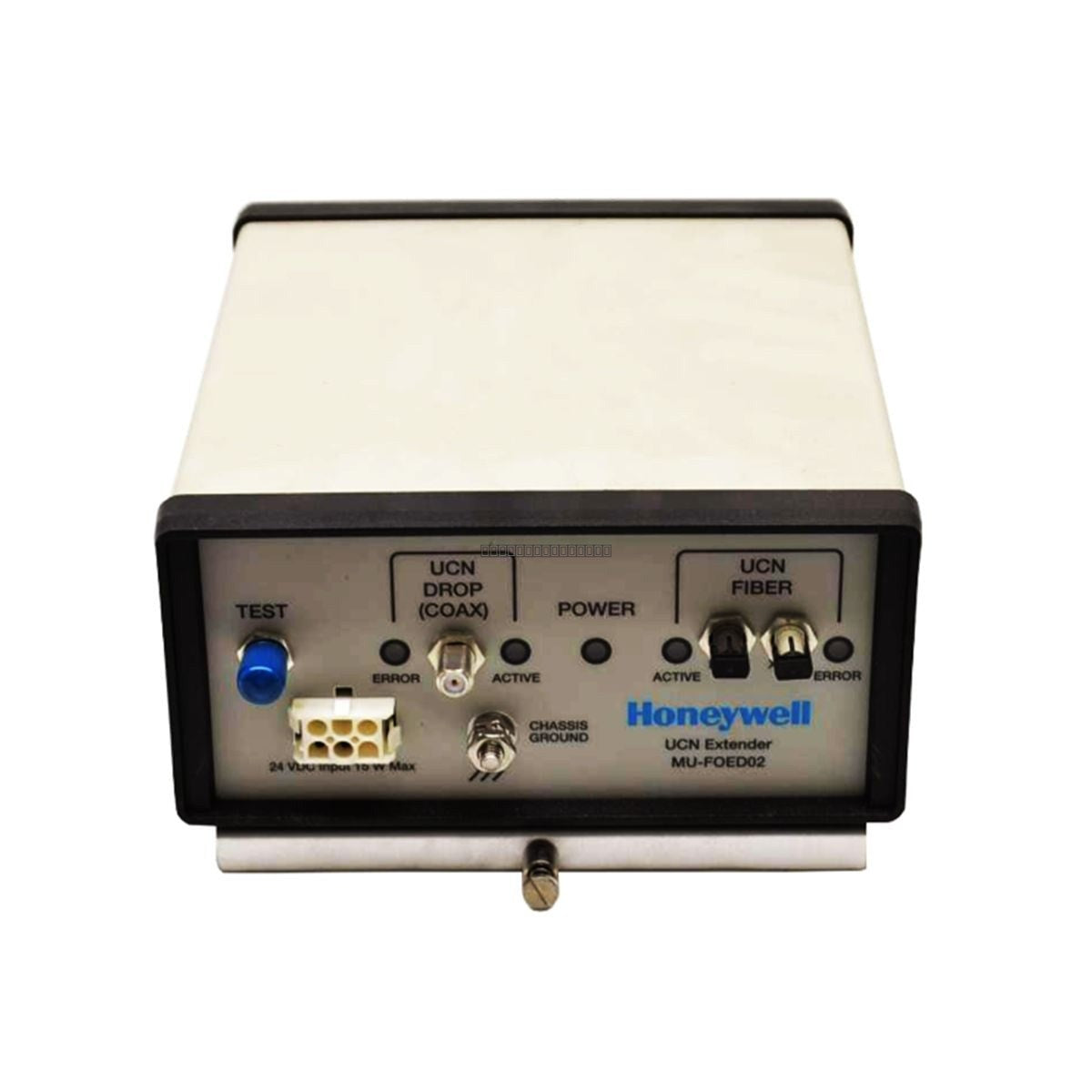

Honeywell 51197564-200 MU-FOED02 UCN Fiber Optic Extender

Product Overview

The Honeywell 51197564-200, also identified as the MU-FOED02, is a specialized communication interface module engineered to extend the reach of the Universal Control Network (UCN) within Honeywell Distributed Control System (DCS) architectures. This unit facilitates robust data transmission over fiber optic cabling, allowing for reliable connectivity between control cabinets and remote process nodes. By utilizing optical transmission, the module effectively mitigates the risks of electromagnetic interference (EMI) and signal degradation that are common in extensive industrial network layouts.

Features

• Supports UCN signal transmission over fiber optic media for distances reaching up to 2 km.
• Provides essential galvanic isolation between network segments to protect sensitive control hardware.
• Optimized for low-latency, deterministic communication required in critical process automation environments.
• Designed for integration into standard industrial cabinet configurations to ensure organized rack space management.
• Operates on a standard 24 VDC power supply consistent with DCS cabinet requirements.

Applications

The MU-FOED02 is primarily deployed in large-scale industrial facilities such as petrochemical refineries, power generation plants, and chemical processing complexes. It is an ideal solution for bridging gaps between geographically separated control rooms or field equipment where copper-based cabling is impractical or susceptible to interference.

Technical Specifications

Installation Guidelines

• Ensure the cabinet power is disconnected before installing or removing the module to prevent electrical damage.
• Handle the fiber optic connectors with care; ensure they are clean and free of dust or debris before insertion to maintain signal integrity.
• Mount the module securely within the designated DCS cabinet, ensuring proper clearance for heat dissipation.
• Route fiber optic cables away from high-voltage power lines to maintain optimal signal quality.
• Verify that the 24 VDC power source is stable and properly grounded according to site-specific electrical safety standards.

FAQ

What is the primary function of the MU-FOED02?
The MU-FOED02 acts as a bridge for the Honeywell UCN, converting electrical signals into optical signals to allow for extended network ranges of up to 2 km.

Does this module require special maintenance?
Standard industrial maintenance involves keeping the fiber optic ports clean and ensuring the module remains within its specified operating temperature range of 0 to 60 deg C.

Can I use this for non-Honeywell networks?
No, this module is specifically engineered for the Honeywell UCN architecture and is not intended for use with other network protocols.
