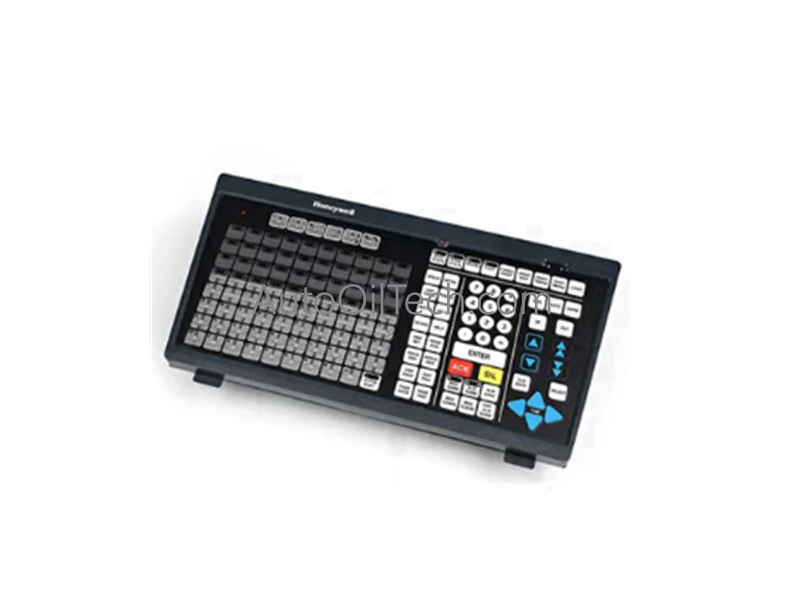

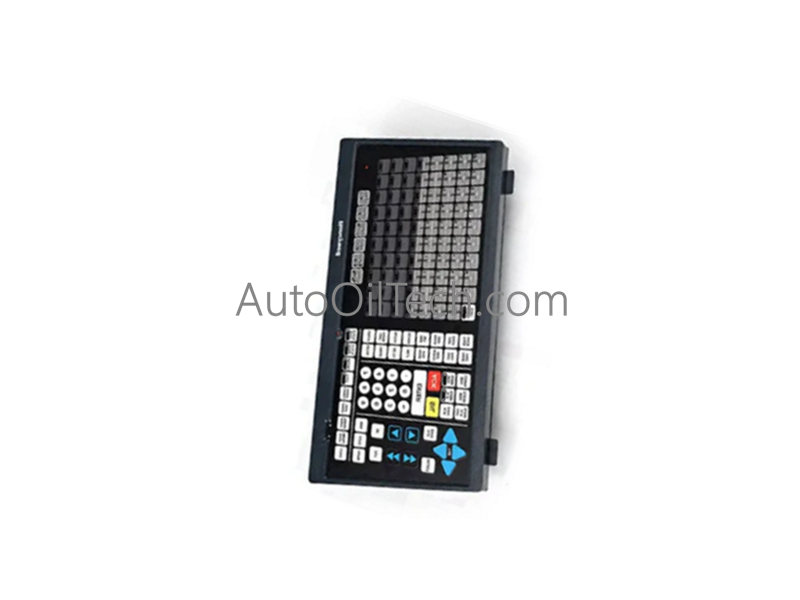

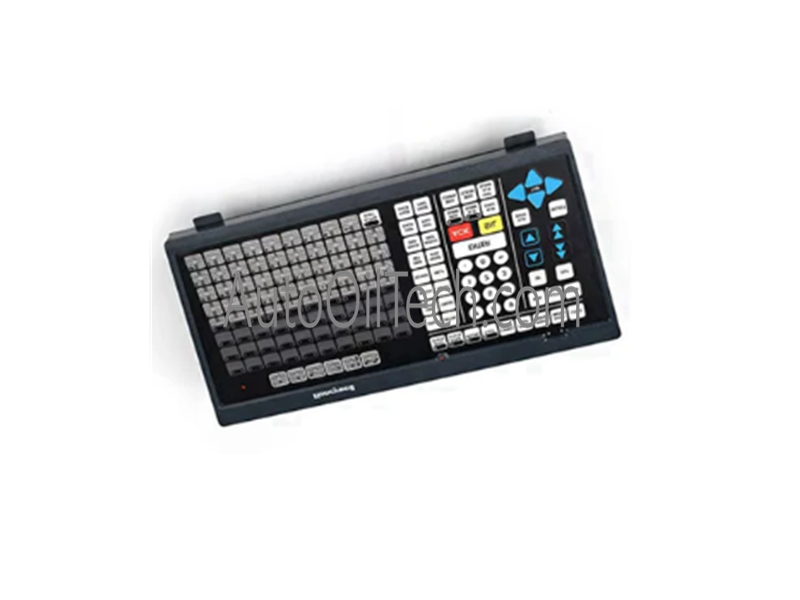

The Honeywell 51196694-300, also cataloged as the 51196694 Optional Integrated Keyboard (IKB), serves as the primary 51196694 HMI hardware device utilized to execute human-machine interface commands across Experion PKS automation platforms.
Hardware Specifications
Parameter
Specification
Model
51196694-300
Brand
Honeywell
Origin
USA
Weight
6.8 kg (15.00 lbs)
Dimensions
48.3 cm x 22.5 cm x 6.2 cm
Operating Temp
0 to 50 deg C
Power Consumption
5 VDC via USB interface connection
Interface Category
HMI / MMI / OIT
Subcategory
Keypad / Keyboard
Pointing Device
Integrated trackball assembly
Process Control Operator Interface
Console Infrastructure Integration The hardware is layout-optimized for drop-in panel installation within industrial operator consoles. The heavy-duty 15.00 lbs chassis frame provides high mechanical stability, preventing device shifting during high-frequency data entry or cursor tracking adjustments within the DCS console plane.
Dedicated HMI Subsystem Functionality The integrated keyboard and trackball assembly act as direct electrical registers mapped to the process graphic interface. This setup guarantees prompt cursor tracking and precise manipulation of control loops, valve status overlays, and system alarm priority menus.
