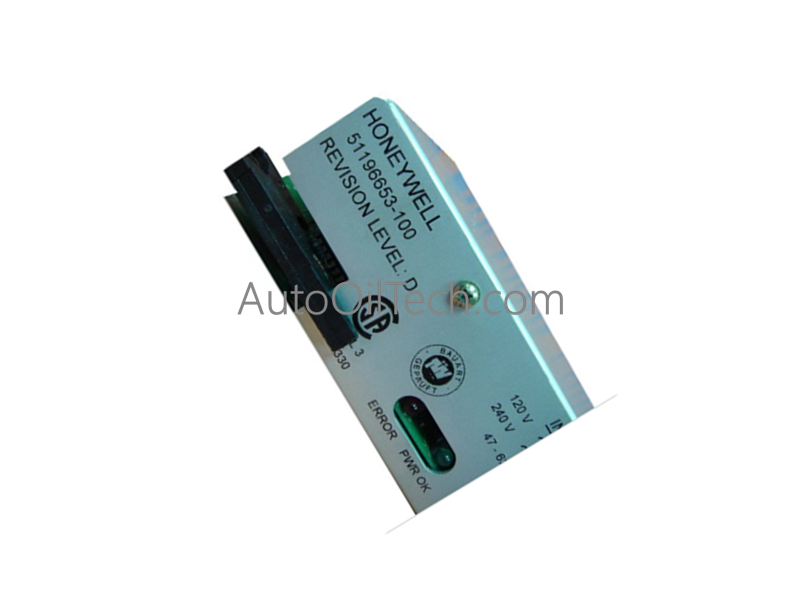

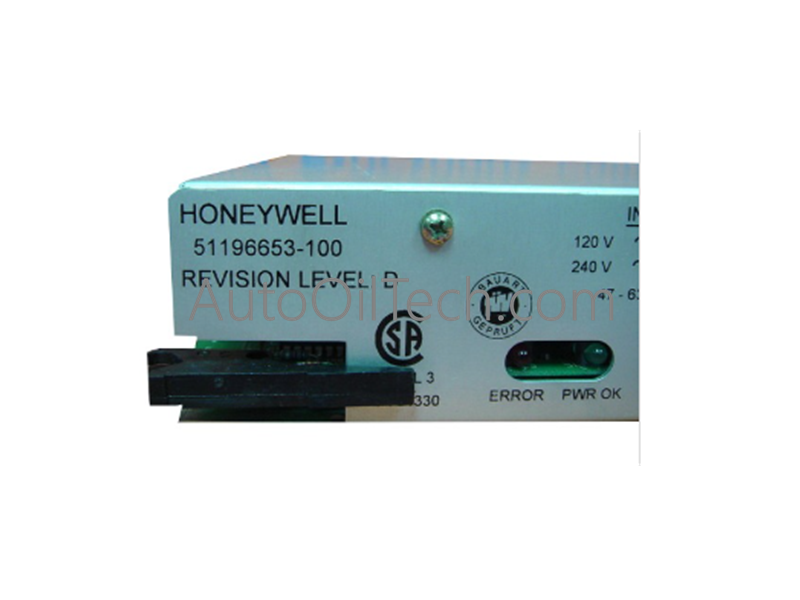

Honeywell 51196653-100 TDC 3000 Five-slot File Power Supply

The Honeywell 51196653-100, also cataloged as the 51196653 Five-slot File Power Supply, operates as a dedicated hardware component for localized DC voltage regulation and bus power delivery within TDC 3000 platforms.

Hardware Specifications

Industrial Process Control and Networks

• Channel-to-Channel Isolation Protection: The internal transformer architecture maintains complete galvanic isolation metrics between the primary AC utility input and downstream logic boards. This prevents high-voltage transient switching surges, common-mode noise spikes, or field ground loop shifts from cross-coupling into adjacent communication media or processing planes.
• 4-20 mA HART Loop Protocol Stability: By regulating the multi-rail DC outputs feeding the chassis files, this component stabilizes the source voltages running to analog interface nodes. The integrated electronic filters isolate low-frequency ripple components, allowing field-side 4-20 mA HART loop protocols to modulate high-frequency digital telemetry across the network links without signal distortion.

Frequently Asked Questions

Q: What are the engineering consequences to the five-slot file if the power supply internal temperature parameters are exceeded?

A: Operating beyond the thermal baseline compromises the efficiency of the internal voltage regulation circuits, leading to increased output ripple on the DC logic rails. If the internal junction temperatures transcend safe operating thresholds, the onboard thermal protection shuts down the multi-rail outputs to safeguard the attached file processing cards from permanent hardware damage.

Q: Can this power supply module be extracted or replaced while the remaining rack components remain energized under active load?

A: No. Due to the standard 3-pin connector layout and lack of specialized make-before-break bypass sequencing paths on the backplane interfaces, hot-swapping this unit while active will interrupt input voltage tracks, drop local communication files, and risk triggering parity trip faults across connected process loops.
