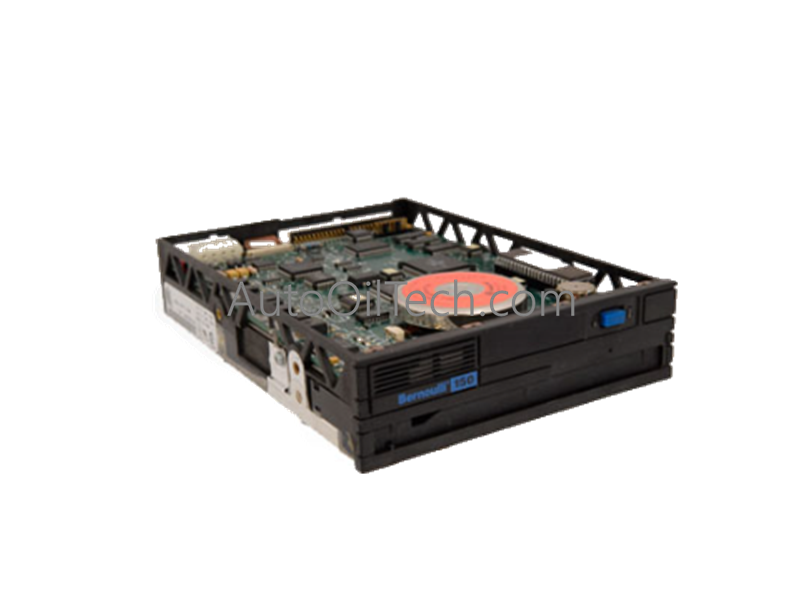

Honeywell 51196483-100 TDC 3000 Bernoulli Drive Module

The Honeywell 51196483-100, also cataloged as the 51196483-100 Bernoulli Drive, operates as a dedicated hardware component for high-integrity non-volatile data storage and system backup recovery operations within Honeywell TDC 3000 distributed control system (DCS) architectures.

Hardware Specifications

Process Control and Network Architecture

• Backplane Bus Communication Velocity: The drive subsystem interfaces with the main industrial computer rack to execute sequential block data transfers during active system logging phases. This structural layout provides deterministic read/write memory access cycles that prevent interface latency or buffer overruns during live process database updates.
• I/O Density Scaling: The module packs a high-capacity 150 MB magnetic disk storage assembly into a compact form factor. This design allows for the storage of dense configuration parameters, trend history charts, and comprehensive point-map registers within a single rack-mountable chassis layout.
• Firmware Flash Compatibility: Onboard controller microcode coordinates sector tracking, disk rotation speeds, and error correction routines. The lower-level hardware firmware layer must align with the active AMM (Advanced Multifunction Module) or US (Universal Station) operating system baseline to ensure fault-free boot sequencing and system parameter synchronization.

Frequently Asked Questions

Q: What are the engineering constraints regarding media extraction or insertion while the host control station is running?

A: The 51196483-100 Bernoulli drive does not support unmanaged hot-swapping of the storage media during active read/write operations. The media must be unmounted via the engineering terminal interface before extraction to prevent head crashes, data corruption, or physical damage to the internal magnetic read heads.

Q: How does the Bernoulli aerodynamic design protect storage media from damage in high-dust industrial environments?

A: The drive uses a unique airflow mechanism that draws a flexible storage disk toward a rigid stabilization plate as it spins. This localized low-pressure zone keeps the recording surface stable and flying close to the read/write head; if dust particles or vibration disrupt the airflow, the disk falls away from the head naturally, preventing a catastrophic head crash.
