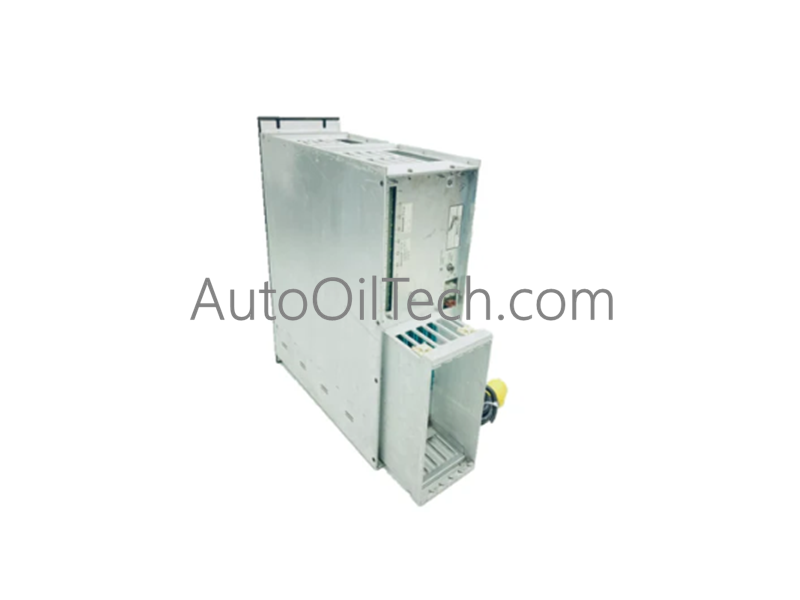

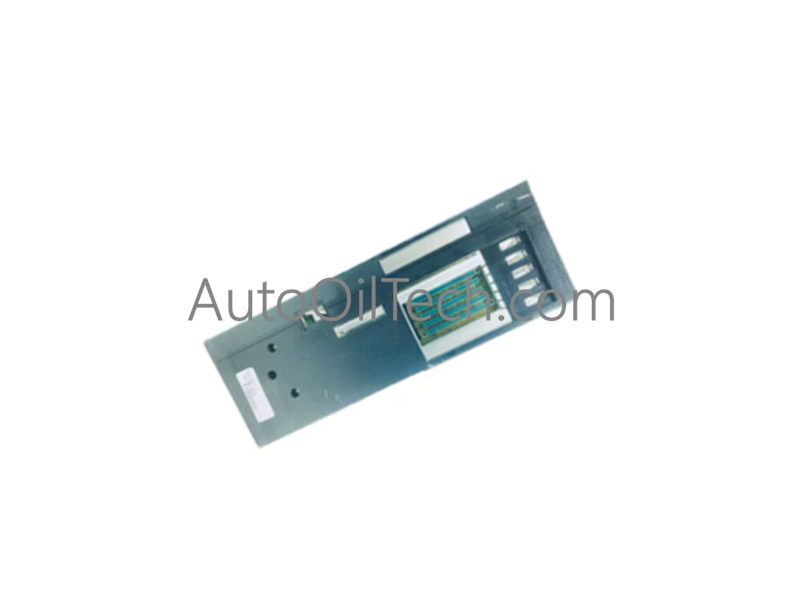

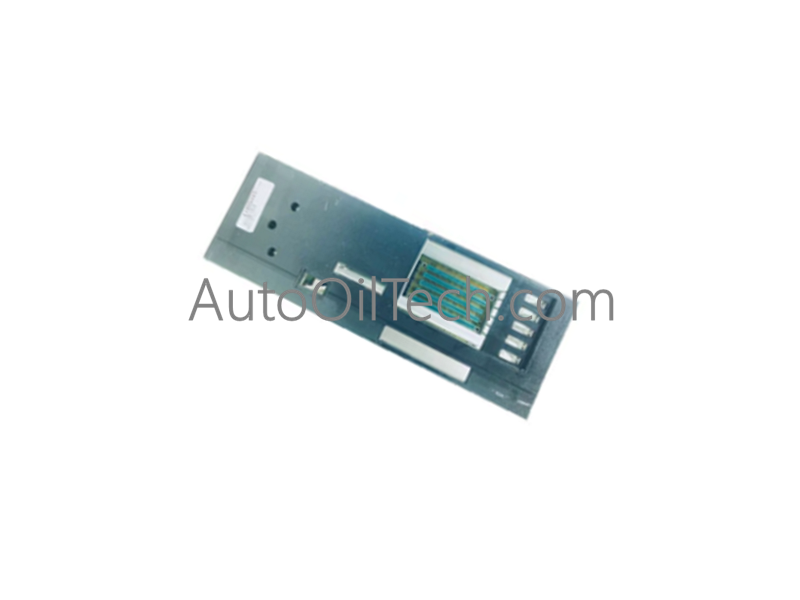

Honeywell 51195458-600 Rack Module

Configured for power distribution and thermal management in industrial control platforms, the Honeywell 51195458-600 (51195458-600 Rack Module) provides direct physical/electrical execution of system power supply and forced-air cooling for TDC 3000 architecture.

Hardware Specifications

Process Control and DCS Characteristics

• 4-20 mA HART loop protocol: The power supply assembly maintains a stable DC bus voltage, providing the necessary clean power rail to minimize ripple-induced noise in downstream HART-enabled analog measurement loops.
• FOUNDATION Fieldbus / Profibus PA connectivity: The module architecture ensures constant power availability for fieldbus segment interfaces, maintaining the voltage levels required for deterministic network communication.
• Channel-to-channel isolation: Internal power regulation stages incorporate galvanic isolation to protect logic modules from power line transients and prevent noise propagation across the rack backplane.
• Cold junction compensation (CJC): The integrated cooling system maintains an isothermal environment for local I/O electronics, preserving the accuracy of temperature sensing and CJC circuitry within the cabinet rack.

Frequently Asked Questions

Q: Does this module require periodic maintenance for the fan assembly?

A: Yes. The cooling fan is a mechanical component subject to wear. It is recommended to monitor fan airflow and vibration levels periodically to ensure optimal heat dissipation and prevent premature thermal shutdown of the system rack.

Q: Is the power supply output field-adjustable?

A: No. The integrated power supply is factory-configured to provide specific voltage rails required by the TDC 3000 system. Adjustment or modification of output levels is not supported and can result in damage to the connected control modules.

Field Installation Guidelines

• Mounting: Secure the rack module into the standard 19-inch chassis using all provided mounting fasteners. Ensure the module is properly aligned with the cabinet’s internal bus connection pins.
• Grounding: Bond the rack chassis directly to the cabinet’s protective earth (PE) bus using a high-gauge, low-impedance braided strap. A solid ground is mandatory for safety and to maintain the reference potential for the power regulation circuitry.
• Wiring: Connect primary AC power input using appropriately rated cable, ensuring proper strain relief. Maintain physical segregation between the AC power input lines and DC signal cables to avoid coupling high-frequency noise into the process loops.
