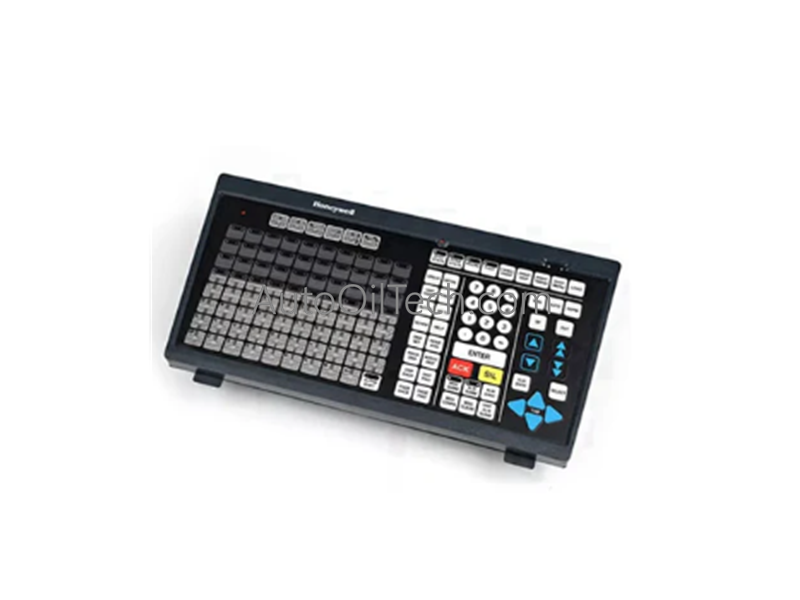

Honeywell 51195191-100 TDC 3000 Operator Keyboard Replacement Kit

The Honeywell 51195191-100, operates as a dedicated hardware component for localized human-machine interface (HMI) input and discrete command execution within Honeywell TDC 3000 Universal Station (US) and Global User Station (GUS) operator consoles.

Hardware Specifications

Process Control and Network Architecture

• Backplane Bus Communication Velocity: The keyboard assembly routes serialized keystroke data packages to the local console interface card, which instantly processes the input bytes. This dedicated hardware execution path ensures deterministic command delivery to the LCN (Local Control Network) bus within fixed clock cycles, minimizing operator intervention latency.
• I/O Density Scaling: The compact console footprint integrates a dense array of industrial-grade function keys and alpha-numeric control contact pads into a 19.1 cm x 18.8 cm perimeter. This layout allows for comprehensive macro-command programming and process display navigation from a single panel-mounted interface cut-out.
• Firmware Flash Compatibility: Being a direct electro-mechanical contact matrix, the keyboard hardware does not host a local flash microcode layer. However, its internal encoder hardware maps specific matrix scan codes to the host station's core input drivers, which must be correctly assigned in the station's system configuration software to guarantee immediate key-map alignment during cold boots.

Frequently Asked Questions

Q: How does the factory-sealed design of the 51195191-100 prevent component degradation in environments with high particulate oil mist?

A: The keyboard features a continuous, industrial-grade polymer membrane overlay that completely seals the underlying copper contact switches from the external atmosphere. This physical barrier blocks the ingress of non-conductive oil films, airborne carbon dust, and moisture vapor, preventing contact oxidation and eliminating parasitic leakage paths between the internal matrix traces.

Q: What are the engineering consequences to active console operations if the internal keyboard cable becomes unseated?

A: The host console station instantly registers a hardware communication timeout or keyboard failure error. The internal watchdog routine flags a critical diagnostic alarm on the supervisory system screen, halts all further key-scan updates to prevent erratic input behavior, and requires a full hardware reset after the cable connection is physically restored.
