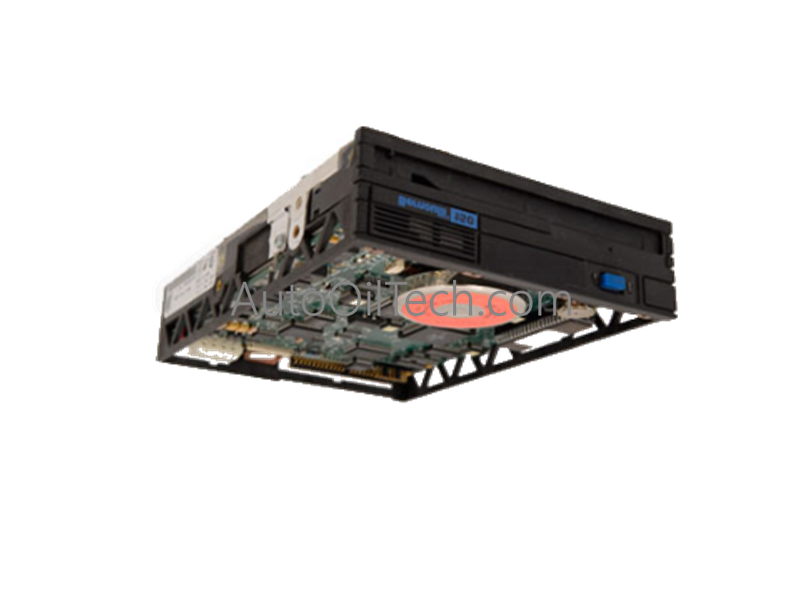

Honeywell 51195156-300 TDC 3000 Cartridge Drive Board

The Honeywell 51195156-300, also cataloged as the 51195156-300 Drive Board, operates as a dedicated hardware component for localized drive mechanism control and signal routing within Honeywell TDC 3000 distributed control system (DCS) architectures.

Hardware Specifications

Process Control and Network Architecture

• Backplane Bus Communication Velocity: The drive board interfaces directly with the high-speed processing rack to execute data block transfers over the internal bus structure. This design delivers deterministic communication updates within fixed clock periods, eliminating command latency during active runtime operations.
• I/O Density Scaling: The module integrates high-current actuator driving circuitry and 20 MB of local memory tracking into a single-slot footprint. This optimization allows for high-density multi-point mechanism control from a centralized card file without over-allocating main backplane address registers.
• Firmware Flash Compatibility: Non-volatile memory sectors store core control parameters, step vectors, and communication protocols. The onboard hardware microcode revision must align precisely with the active engineering workstation software baseline to ensure error-free slot mapping and prevent runtime synchronization blocks during initialization downloads.

Frequently Asked Questions

Q: How does the 51195156-300 handle thermal dissipation when delivering its maximum 2 A continuous output current?

A: The board incorporates industrial-grade power semiconductors mounted directly to internal vertical heat sink paths. Thermal energy is dissipated into the chassis enclosure via ambient convection, requiring a continuous, unobstructed cooling airflow across the card slot to maintain component temperatures within standard operating limits.

Q: What are the engineering consequences to the 20 MB localized memory buffer if the 5-12 VDC input voltage drops below minimum thresholds?

A: The board utilizes hardware-level brownout detection loops connected to its internal memory controllers. If input logic power drops below operational baselines, the board immediately asserts a low-voltage flag, halts active write sequences to protect the 20 MB cache from corruption, and drops the 2 A output paths into a safe, de-energized state.
