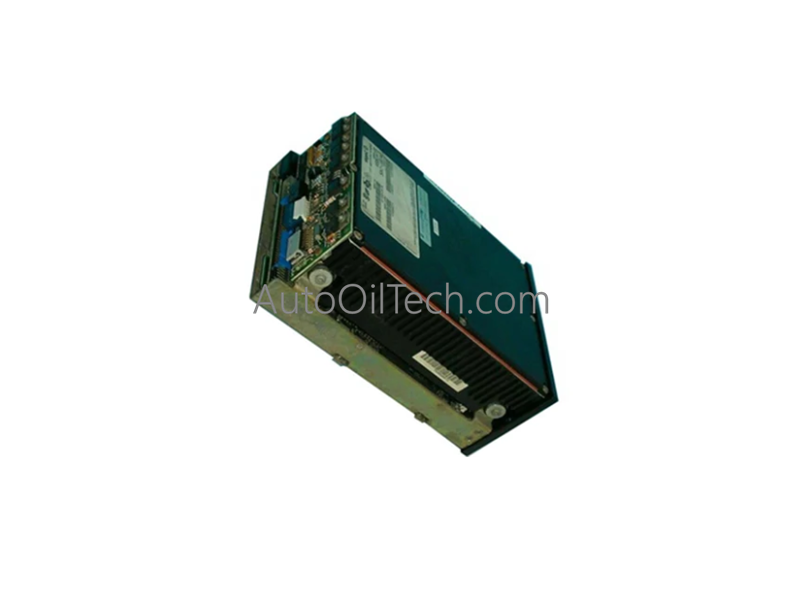

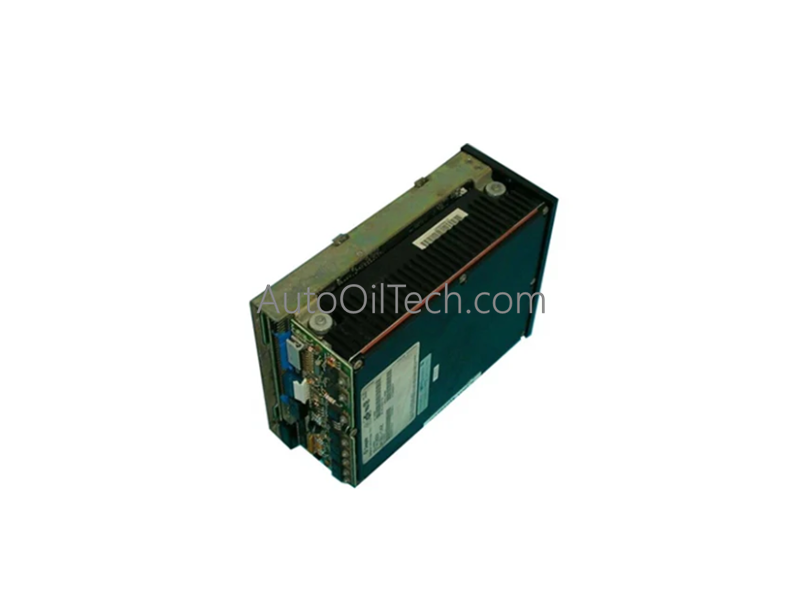

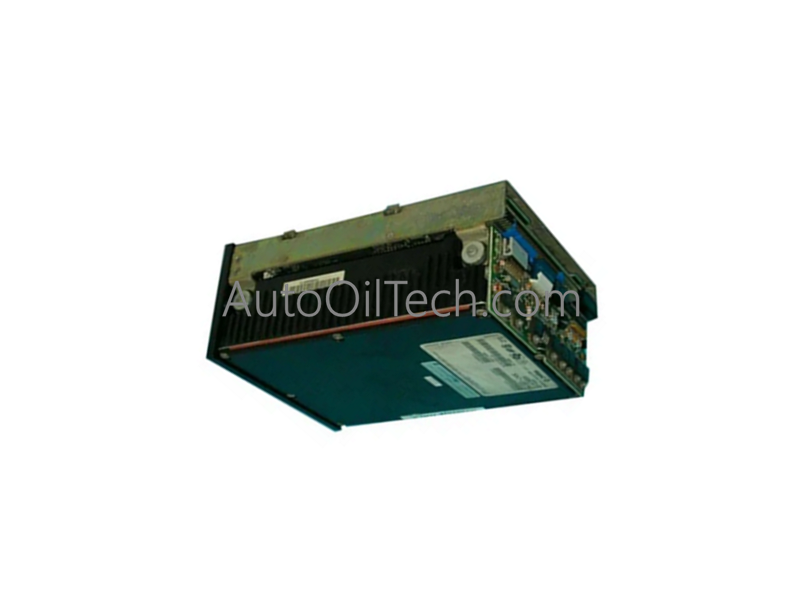

Honeywell 51195155-100 TDC 3000 SCSI Hard Disk Drive Module

The Honeywell 51195155-100, operates as a dedicated hardware component for high-capacity non-volatile data storage, system files hosting, and historic trend logging within Honeywell TDC 3000 distributed control system (DCS) architectures.

Hardware Specifications

Process Control and Network Architecture

• Backplane Bus Communication Velocity: The magnetic storage unit links directly to the industrial processor chassis over a dedicated parallel SCSI bus network. It runs high-volume block file transfers smoothly, ensuring deterministic, low-latency access to system configuration data, point directories, and graphics files during active runtime states.
• I/O Density Scaling: Packing 18.2 GB of data storage into a standard 3.5-inch layout provides ample capacity for massive history logging files and database structures. This high-density storage manages thousands of continuous process loops without needing extra external expansion enclosures.
• Firmware Flash Compatibility: Low-level physical formatting parameters, track sectoring maps, and drive interface logic are controlled through internal controller microcode. The hard drive's hardware revision and partition configurations must match the baseline operating system layout of the local node (such as an Advanced Multifunction Module or Universal Station) to ensure proper boot sequencing and drive mapping during system initialization.

Frequently Asked Questions

Q: Does the 51195155-100 SCSI hard drive support hot-swapping or active replacement while the host node is running?

A: No. The parallel SCSI bus interface utilized by this module does not support unmanaged live hot-swapping. Disconnecting the data or power cabling while the chassis is energized can cause severe SCSI bus signal reflections, data corruption across active sectors, or destructive electrical arcs on the interface pins.

Q: How does the 5400 RPM spindle velocity balancing design perform in high-vibration control environments?

A: The 5400 RPM rotational speed balances rapid data seek times with low physical heat generation and minimal mechanical vibration. Internal shock isolation mounts protect the disk platters, allowing the drive to maintain accurate read/write head tracking even when exposed to continuous, low-frequency structural vibration from nearby industrial machinery.
