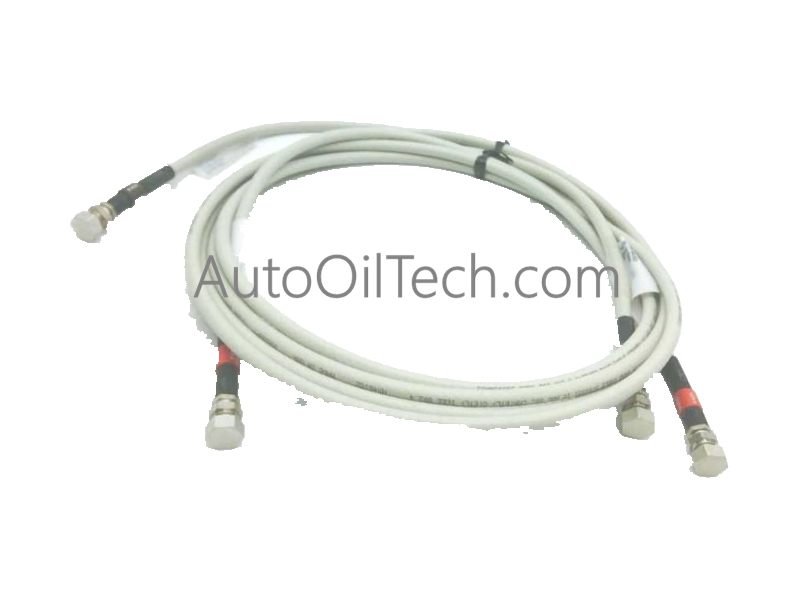

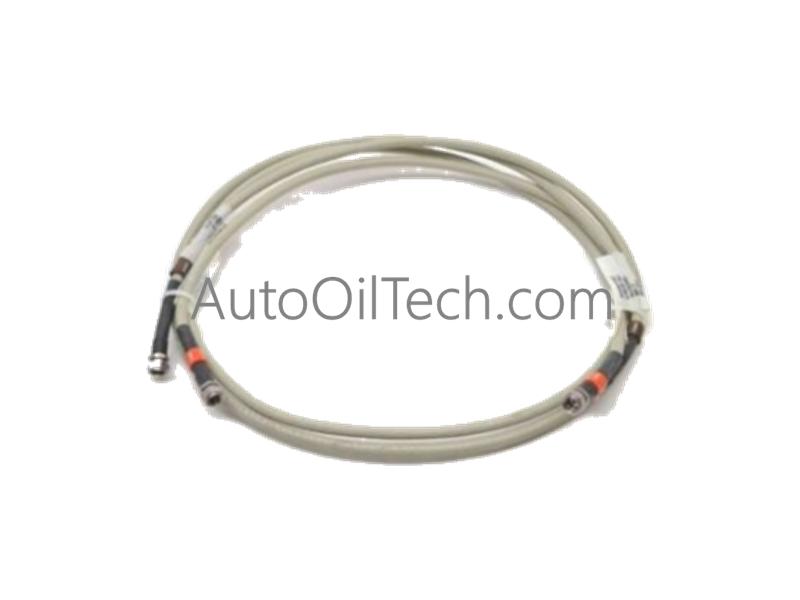

Honeywell 51195153-002 TDC 3000 UCN Drop Coaxial Cable Set

The Honeywell 51195153-002, also cataloged as the 51195153-002 UCN Drop Cable, operates as a dedicated hardware component for high-frequency serial control network communication within Honeywell TDC 3000 Universal Control Network (UCN) architectures.

Hardware Specifications

Process Control and Network Architecture

• Backplane Bus Communication Velocity: The cable assembly links localized process manager modules directly to the 5 Mbps token-passing Universal Control Network (UCN) backbone. It ensures deterministic, sub-millisecond transmission velocities for critical alarm metrics and peer-to-peer control interlocks across the physical bus network.
• I/O Density Scaling: Utilizing an optimized RG6 coaxial layout allows independent, multi-channel controller files to tap into a singular physical network segment. This geometry minimizes field control room cable density, facilitating high-capacity communication mapping without introducing signal degradation or attenuation over the link path.
• Firmware Flash Compatibility: Being a passive copper network media component, the cable contains no internal microcode or execution layers. However, the physical network drops interface with intelligent communication controllers whose UCN transceiver parameters and node address firmware levels must match the network baseline to guarantee fault-free slot identification during cold starts.

Frequently Asked Questions

Q: What are the engineering consequences of exceeding the minimum bend radius of this RG6 coaxial assembly during routing?

A: Bending the cable beyond its physical threshold alters the core dielectric spacing between the center conductor and the outer shield braid. This geometric distortion shifts the localized characteristic impedance away from 75 Ohms, creating high-frequency signal reflections that manifest as CRC data packet frame errors on the UCN bus.

Q: Can standard commercial-grade RG6 coaxial cabling be substituted for the 51195153-002 cable set in active control environments?

A: No. The 51195153-002 assembly features specialized industrial-grade double shielding and precise factory-terminated connectors designed to prevent electromagnetic ingress from high-power switchgear. Commercial variations lack the structural attenuation resistance and shielding margins necessary to sustain error-free 5 Mbps deterministic telemetry under harsh industrial interference.
