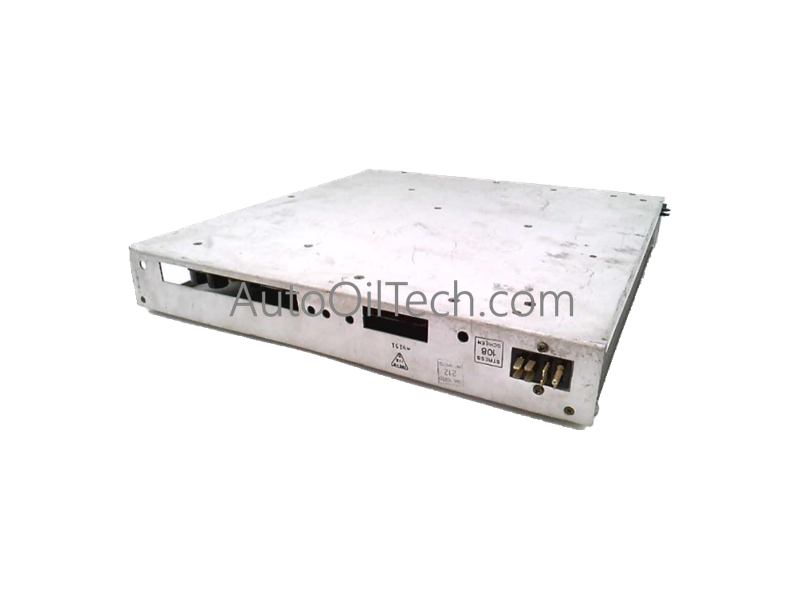

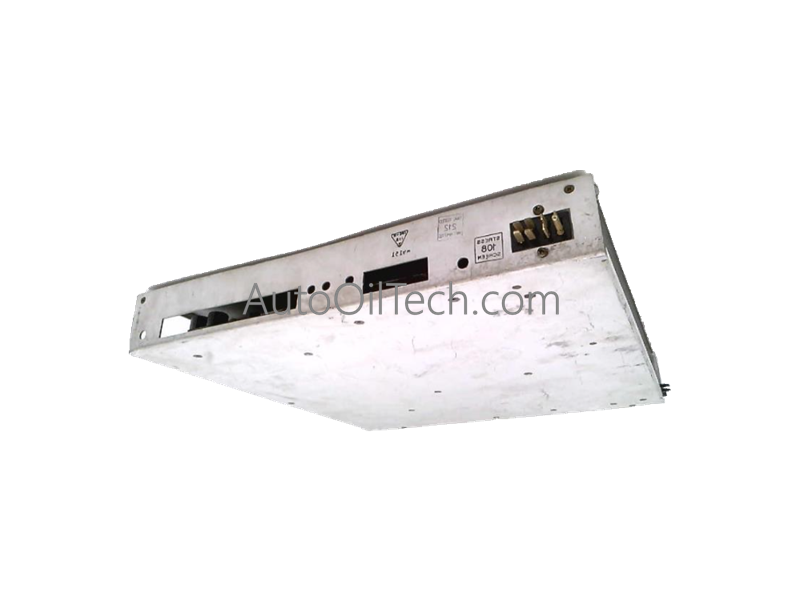

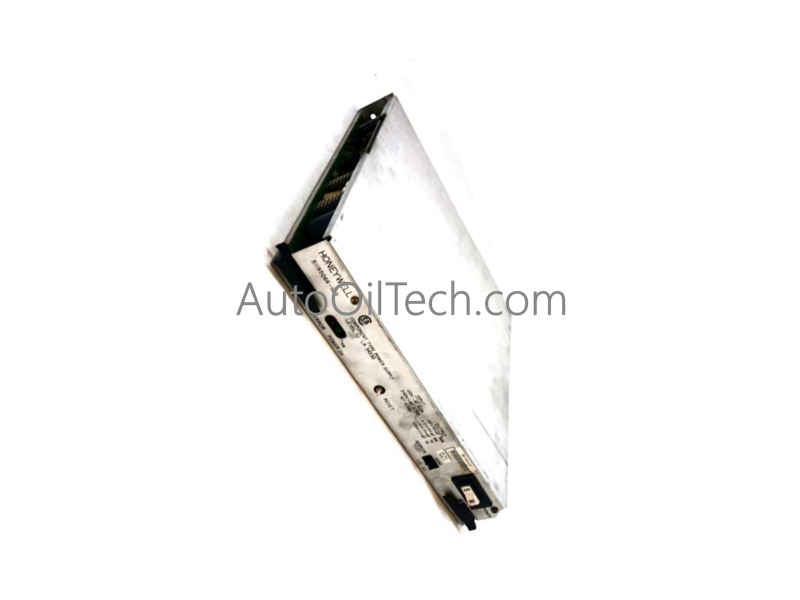

Honeywell 51195066-100 TDC 3000 Quad-Output Power Supply Module

The Honeywell 51195066-100, also cataloged as the 51195066-100 Power Supply, operates as a dedicated hardware component for multi-rail DC voltage regulation and power distribution within Honeywell TDC 3000 distributed control system (DCS) architectures.

Hardware Specifications

Process Control and Network Architecture

• Backplane Bus Communication Velocity: The power supply sits directly on the local chassis backplane, feeding regulated DC power lines to adjacent processor and communication boards. It maintains steady voltage regulation across the backplane bus during peak data transfers, preventing any sub-millisecond communication drops.
• I/O Density Scaling: This single module provides a high-amperage quad-output design (30 A on the 5 VDC rail) that can run complete, highly built-out I/O card files. This removes the need for extra external power supplies and frees up space inside standard industrial control panels.
• Firmware Flash Compatibility: This module uses passive and discrete analog hardware components to control its switching and monitoring loops. While it does not run any internal flash microcode, its internal voltage-monitoring lines link directly to the host chassis system diagnostics. The power status registers must be mapped correctly inside the engineering system configuration to allow proper alarm monitoring on the supervisory HMI.

Frequently Asked Questions

Q: How does the 51195066-100 handle over-current conditions on the high-amperage 5 VDC logic rail?

A: The module is built with an automatic electronic current-limiting circuit on each output rail. If the 5 VDC logic line draws more than its 30 A limit because of a down-line short circuit, the supply drops into a protective fold-back or hiccup mode. This cuts off output power to keep the internal components from overheating until the fault is cleared.

Q: Can multiple 51195066-100 power supply modules be wired directly in parallel for load sharing or fault redundancy?

A: No. These modules do not feature built-in active load-sharing circuits or auctioneering diodes for direct parallel connection. Wiring the outputs together without external isolation hardware can cause uneven current loading, damage the voltage regulation loops, and shorten the operational lifespan of the units.
