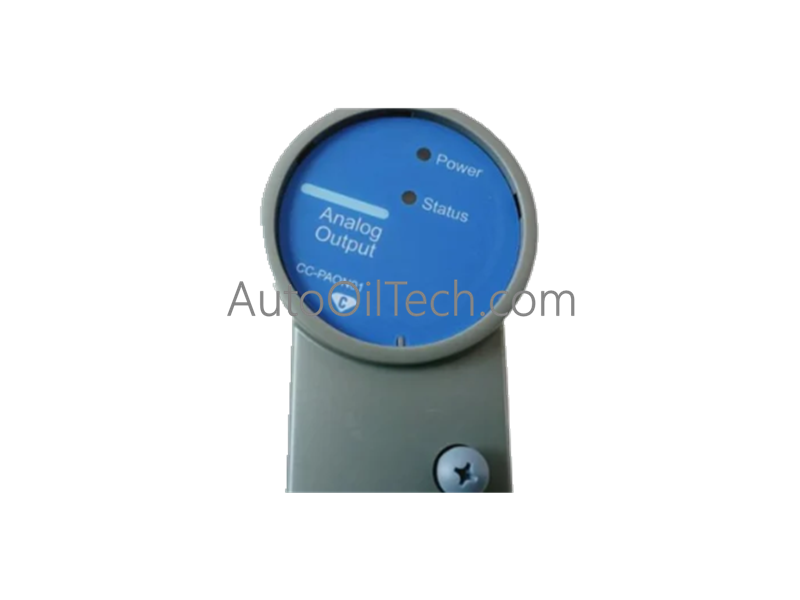

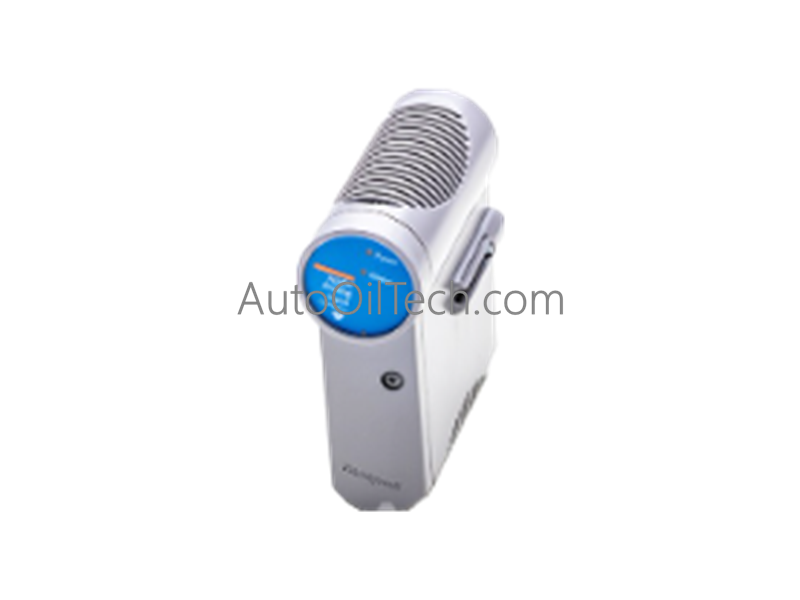

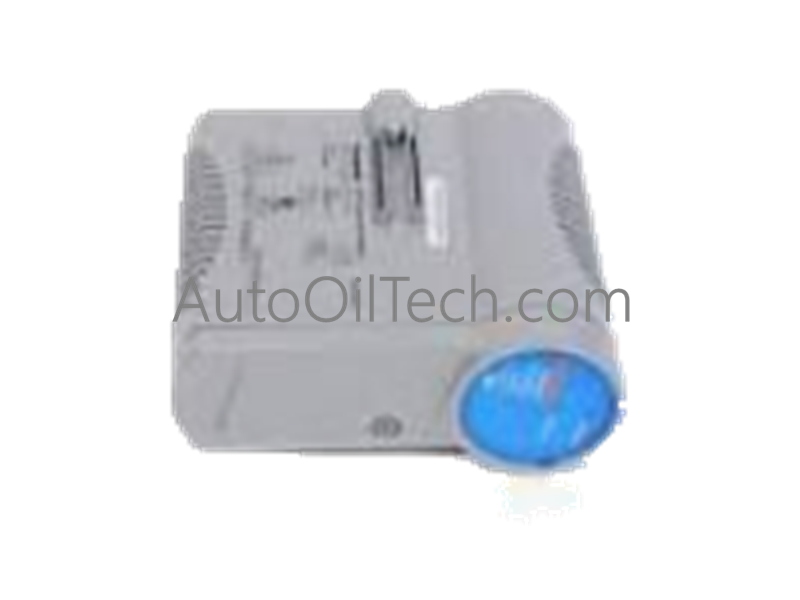

The Honeywell 50136663-103, also cataloged as the 50136663-103 Control Module, operates as a dedicated hardware component for signal routing and input-output management within Honeywell automation platforms.
Hardware Specifications
Parameter
Specification
Model
50136663-103
Brand
Honeywell
Origin
USA
Weight
0.8 kg
Dimensions
12.7 cm x 12.7 cm x 12.7 cm
Operating Temp
0 deg C to 50 deg C
Power Consumption
Standard 24 VDC Control Loop
4-20 mA HART Loop Protocol and Channel Isolation
The 50136663-103 interfaces with field instrumentation through standardized signal pathways designed to maintain data integrity across industrial networks. The 4-20 mA HART loop protocol compatibility allows simultaneous analog measurement transmission and digital configuration parameter exchange with higher-level controllers. Channel-to-channel isolation safeguards sensitive internal logic circuitry from external ground loops and high-voltage common-mode transients. Cold junction compensation (CJC) and internal thermal regulation mechanisms ensure long-term measurement linearity within enclosed cabinet environments.
Frequently Asked Questions
Q: What primary enclosure form factor does this hardware unit utilize?
A: The module is built in a compact 12.7 cm cube configuration designed for standard industrial cabinet mounting.
Q: Can this module be extracted or installed while power is applied to the system rack?
A: System power must be isolated prior to physical installation or extraction to prevent electrical arcing and terminal pin damage.
Q: How are internal faults and operational status communicated to the controller?
A: Diagnostic data and fault flags are transmitted via internal backplane communication lines to the central processing unit.
Field Installation Guidelines
Ensure that the control cabinet mounting panel or DIN-rail base is securely grounded prior to hardware installation.
Verify that system supply voltage remains stable within specified operating limits before energizing the module.
Keep signal wiring physically separated from high-voltage power lines and heavy inductive loads to prevent electromagnetic interference (EMI).
Maintain adequate clearance around all sides of the 12.7 cm cube housing to support proper convective thermal dissipation.
