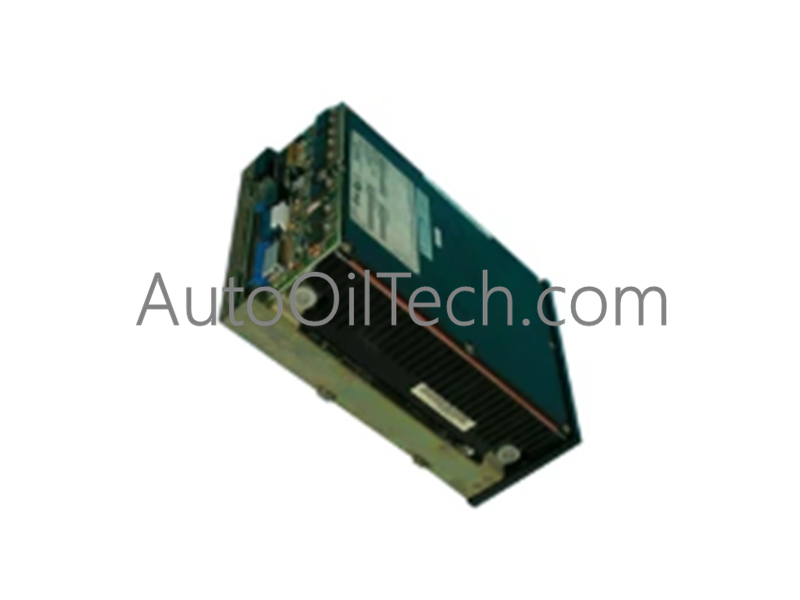

The Honeywell 3411148VBUS2/R/50, also cataloged as the 3411148VBUS2/R/50 Digital Output Module, operates as a dedicated hardware component for digital output signal control and VBus communication routing within C300 automation platforms.
Hardware Specifications
Parameter
Specification
Model
3411148VBUS2/R/50
Brand
Honeywell
Origin
USA
Weight
0.8 kg
Dimensions
270 mm x 201 mm x 150 mm
Operating Temp
-20 deg C to +60 deg C
Power Consumption
24 VDC +/-10%
4-20 mA HART Loop Protocol and Channel Isolation
The 3411148VBUS2/R/50 processes high-integrity switching commands to interface controller logic directly with actuators, relays, and field devices. The 4-20 mA HART loop protocol integration and VBus communication architecture allow seamless telemetry exchange and diagnostic data sharing across C300 controllers. Channel-to-channel isolation parameters safeguard internal processor architecture from common-mode transients and inductive kickbacks originating on field wiring circuits. Cold junction compensation (CJC) and internal temperature tracking maintain operational stability across the specified -20 deg C to +60 deg C environment.
Frequently Asked Questions
Q: Which control system platforms are fully compatible with this output module?
A: The module is engineered specifically for Honeywell C300 series PLC and DCS architectures using the VBus communication protocol.
Q: Does this hardware module support system redundancy configurations?
A: Yes, it is fully compatible with the C300 system redundancy architecture to ensure continuous and reliable operation in critical applications.
Q: Can this module be extracted or installed while the control cabinet is energized?
A: System power and loop supplies must be isolated prior to physical installation or extraction to prevent electrical arcing and backplane damage.
Field Installation Guidelines
Ensure that the control cabinet mounting panel is structurally rigid and properly grounded before securing the module enclosure.
Verify that the 24 VDC power supply remains stable and strictly within the +/-10% tolerance range prior to energizing the unit.
Route digital output wiring away from high-voltage power lines and heavy inductive loads to prevent electromagnetic interference (EMI).
Maintain minimum clearance boundaries around the 270 mm x 201 mm x 150 mm housing footprint to allow proper thermal dissipation within the cabinet.
