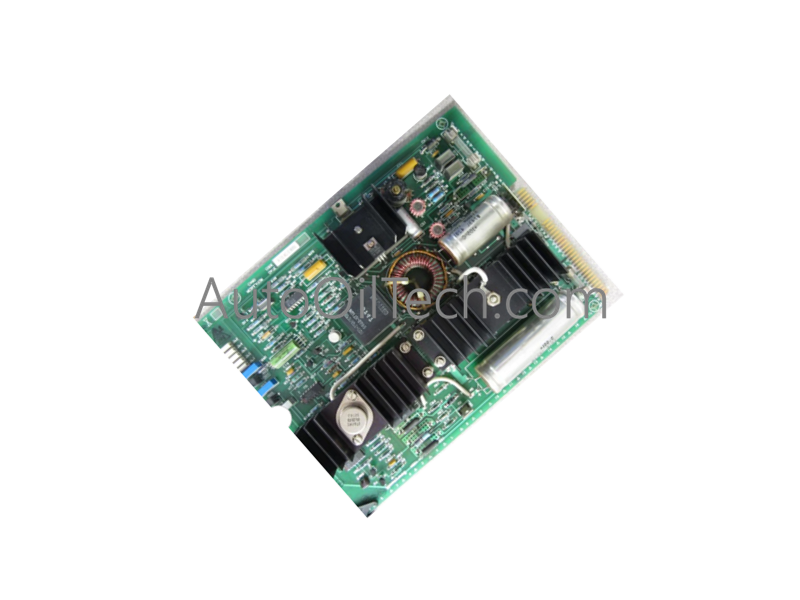

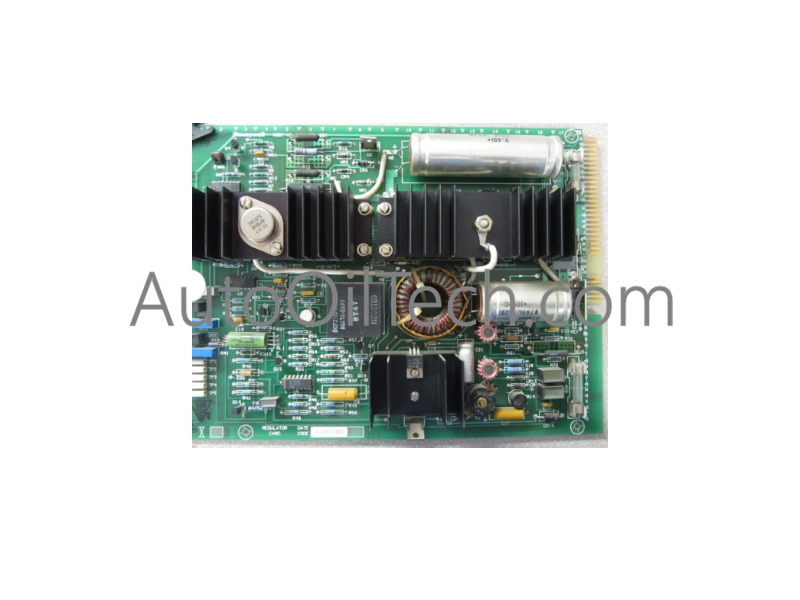

Configured for power conversion and voltage regulation in distributed control platforms, the Honeywell 30731808-001 (30731808-001 Regulator Card) provides direct physical/electrical execution.
Hardware Specifications
Parameter
Specification
Model
30731808-001
Brand
Honeywell
Origin
USA
Weight
0.79 kg
Dimensions
Standard DCS Card Format
Operating Temp
0 deg C to 60 deg C
Power Consumption
24 VDC Input
4-20 mA HART Loop Protocol and Channel Isolation
The 30731808-001 processes continuous direct current inputs to deliver regulated voltage rails across internal DCS backplanes. The 4-20 mA HART loop protocol integration pathways allow supervisory nodes to monitor power supply health and operational status metrics. Channel-to-channel isolation features protect sensitive low-level logic circuits from high-voltage transients originating on incoming distribution lines. Cold junction compensation (CJC) and thermal tracking mechanisms ensure output voltage stability despite internal cabinet temperature fluctuations.
Frequently Asked Questions
Q: What are the primary input and output voltage ratings for this regulator card?
A: The card typically accepts a nominal 24 VDC input and supplies regulated +5 VDC and +/-12 VDC outputs to rack components.
Q: Does the unit incorporate onboard protection features for fault mitigation?
A: Yes, integrated fuse protection and active fault detection circuitry prevent damage during overcurrent or short-circuit events.
Q: Is this hardware component compatible with hot-swap rack insertion?
A: System power must be isolated prior to insertion or removal to prevent electrical arcing across backplane edge connectors.
Field Installation Guidelines
Ensure that the rack power supply is completely de-energized before sliding the regulator card into its designated slot.
Verify proper alignment with backplane guide rails to prevent bending or damaging edge connector pins during installation.
Maintain adequate cabinet ventilation clearances to support convective cooling across the printed circuit board components.
Check all input and output terminal connections for secure mechanical fastening and proper insulation before restoring system power.
