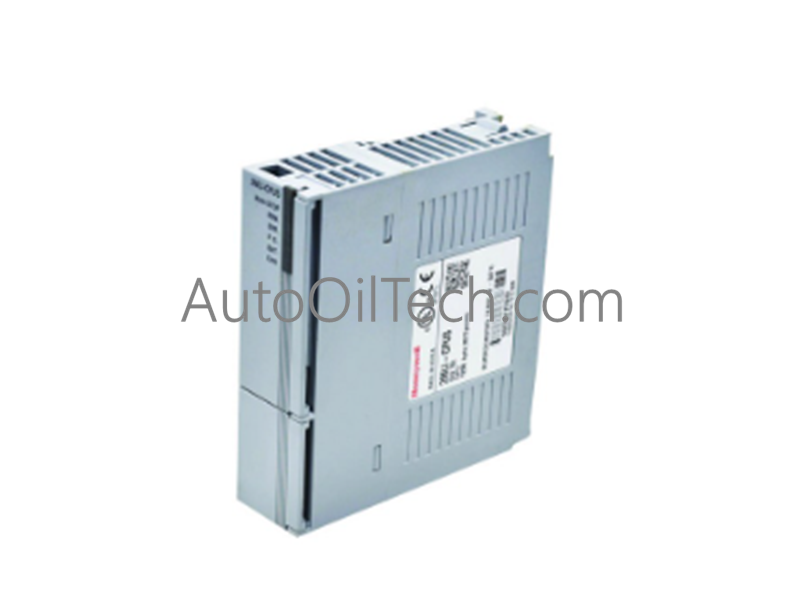

Honeywell 2MLI-CPUU MasterLogic-200 CPU Module

The Honeywell 2MLI-CPUU is a high-performance central processing unit designed for the MasterLogic-200 programmable logic controller (PLC) platform. Capable of managing large-scale industrial I/O architectures, this processor excels in fast program execution, highly flexible program execution control, and deep memory spaces required for demanding process control tasks.

Hardware & Software Specifications

Memory Structure & Allocation

The processor's internal memory architecture partition guarantees efficient data storage, variable retention options, and direct variables routing:

• Symbolic Variable Area (A): 512 KB total, with up to 256 KB configurably set to retain data across power cycles.
• Direct Input Variable (I): 16 KB total addressable space.
• Direct Output Variable (Q): 16 KB total addressable space.
• Direct Variable Memory (M): 256 KB total, with up to 128 KB retain-settable.

Distributed Process Integration & DCS Interface

• 4-20 mA HART Loop Data Handling: The 2MLI-CPUU coordinates with downstream analog I/O modules to read and write HART command registers. It processes dynamic variable polling without interrupting the primary logic execution cycle.
• Optocoupler-Level Card Protection: The CPU manages bus backplane lines designed with high galvanic isolation levels, ensuring field anomalies do not breach the control core.
• Thermodynamic Calculations & CJC Accuracy: Thanks to its dedicated real number (floating point) operation functions, the CPU directly resolves high-precision non-linear formulas for thermocouples, utilizing live Cold Junction Compensation values from input cards.

Frequently Asked Questions

Q: What programming environments are used with the 2MLI-CPUU?

A: Programming, system configuration, and online debugging are managed using Honeywell's unified SoftMaster software tool, which supports all IEC 61131-3 standard languages (LD, SFC, and ST).

Q: How is the variable retention memory preserved during a power outage?

A: The configuration-specified "Retain" memory regions (such as the A and M areas) are backed up using a high-density, low-leakage lithium battery located on the front slot compartment of the CPU module.

Field Installation Guidelines

• DIN-Rail Rack Grounding: Ensure the chassis rack is installed on a clean, rust-free zinc-plated DIN rail. Bond the rail directly to the main cabinet structural ground via a low-impedance ground wire (minimum 2 mm²).
• Thermal Management: Maintain at least 50 mm clearance around the CPU module faceplate to optimize convective airflow cooling inside high-density enclosures.
• Hot-Swapping Prohibitions: The 2MLI-CPUU controller must be powered off before removal from the system rack or slot insertion to prevent potential transient backplane damage.
