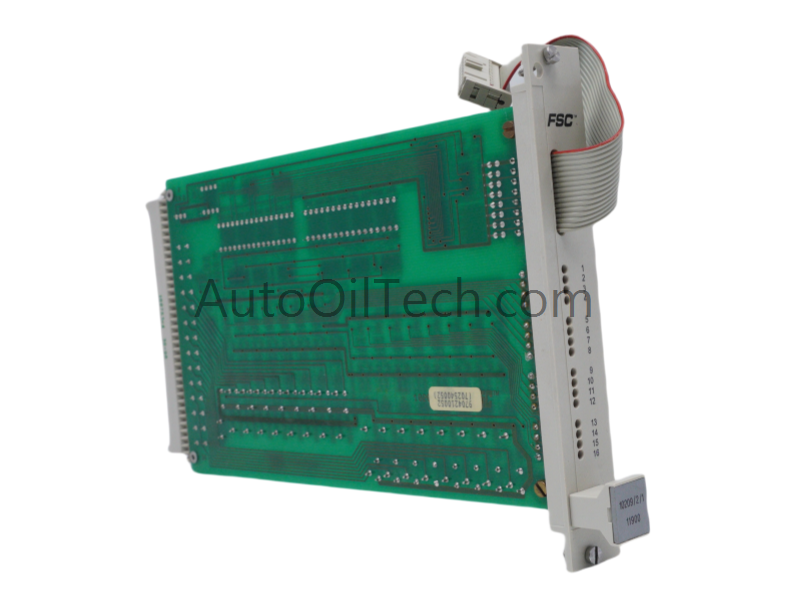

The Honeywell 10206/2/1 is a high-reliability Fail-Safe Digital Output Module designed for use within Honeywell's Safety Manager and FSC (Fail Safe Control) systems. This module provides secure and monitored control interfaces between the safety system and field devices, ensuring precise execution of digital outputs in critical industrial automation and safety-instrumented environments.
Features
Fail-Safe Operation: Features advanced internal diagnostics and redundant architectures to ensure safe de-energization during fault conditions.
Loop Monitoring: Supports extensive line monitoring capabilities to detect open or short circuits in the field wiring.
Hot-Swappable Design: Allows for seamless module replacement during active operations without disrupting the wider system or process.
Galvanic Isolation: Provides robust electrical isolation between the internal logic control circuitry and external field devices.
Status Indication: Equipped with front-panel LED indicators that offer immediate visual feedback on channel status and fault conditions.
Specifications
Module Type: Digital Output Module (DO)
Channels: 8 channels (typically configured as isolated fail-safe digital outputs)
Operating Voltage: 24 VDC nominal
Output Current Rating: 0.5 A to 2 A per channel (dependent on specific load configurations)
Power Consumption: Approximately 4 W to 6 W (internal logic consumption)
Safety Rating: Certified for use in SIL 3 (Safety Integrity Level 3) applications
Response Time: Less than 10 ms for rapid safety shutdowns
