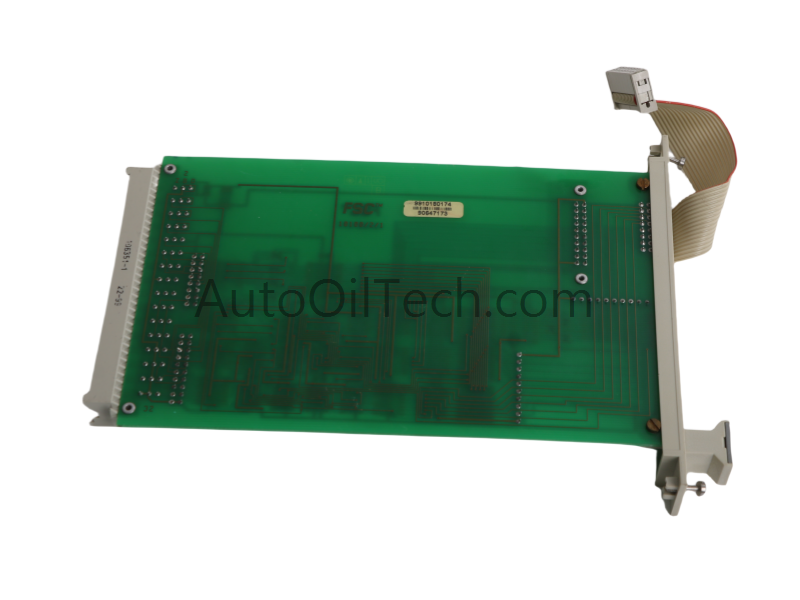

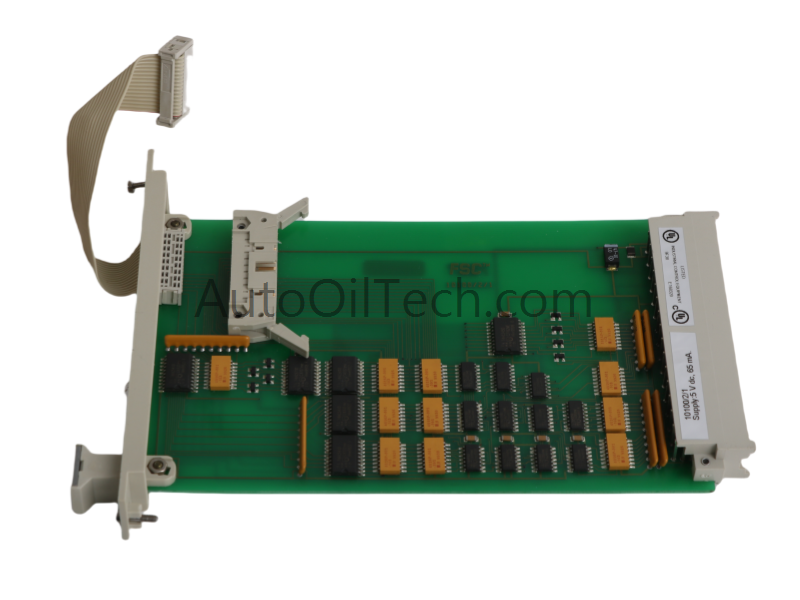

The Honeywell 10100/1/1 Horizontal Bus Driver is a communication interface module designed for FSC (Fail‑Safe Controller) systems. It provides horizontal bus connectivity, enabling reliable data transfer and synchronization between system modules in distributed control environments.
Specifications
Manufacturer: Honeywell
Product Number: 10100/1/1
Type: Horizontal Bus Driver Module
Function: Provides horizontal bus communication for FSC racks
Supply Voltage: 24 VDC nominal
Bus Type: Horizontal system bus interface
Isolation: Galvanic isolation between bus and system
Mounting: Rack‑mounted, hot‑swappable design
Operating Temperature: 0 °C to +60 °C
Weight: ~1.5 kg
Shipping Weight: ~2.5 kg
Compliance: CE, IEC standards
Features
Reliable Bus Communication: Ensures stable horizontal data transfer across FSC modules
Fail‑Safe Design: Built for redundancy and safety‑critical applications
Hot‑Swappable: Allows replacement without system downtime
Industrial Durability: Designed for continuous operation in harsh environments
System Integration: Fully compatible with Honeywell FSC architecture
Diagnostic Support: Provides bus status monitoring and fault detection
