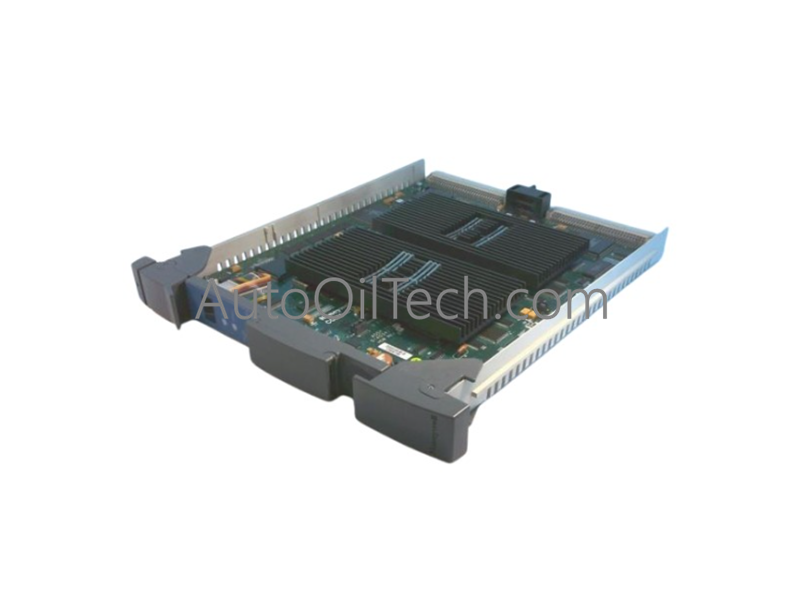

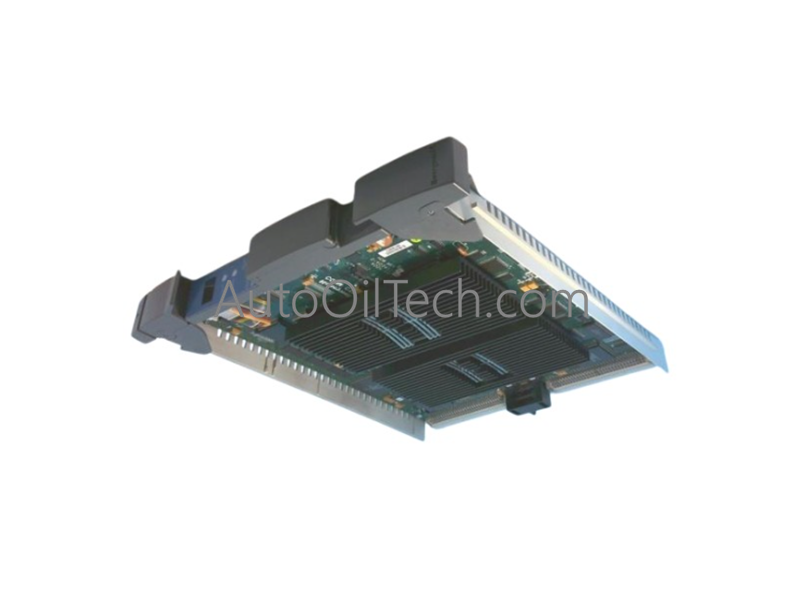

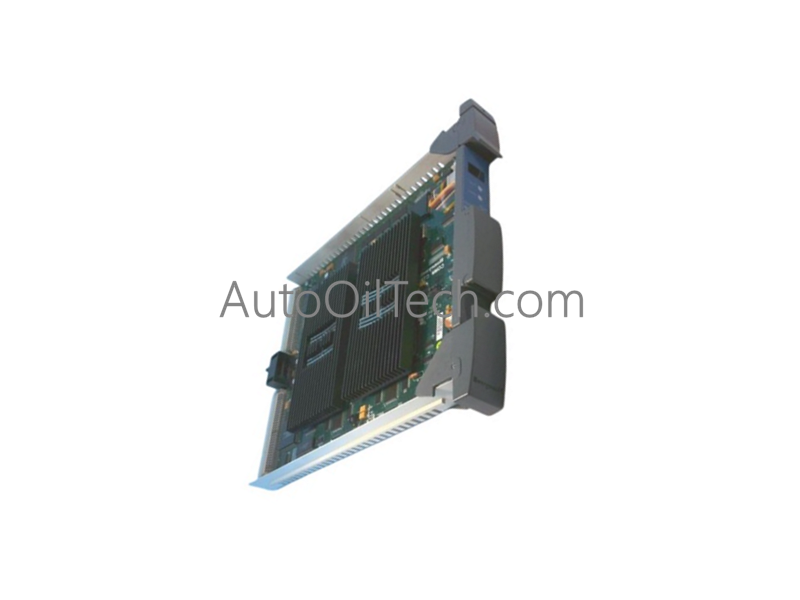

Honeywell 10018/O/1 FSC Communication Module

In stock!
  • Part Number: 10018/O/1
  • Brand: Honeywell
  • Type: Communication Module
  • Dimensions: 3.7×14×13.6cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Green
  • Gray
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
Tags: Communication Modules , Honeywell FSC Systems

Product Description

The Honeywell 10018/O/1, also cataloged as the 10018/O/1 Communication Module, operates as a dedicated hardware component for serial data communication routing within FSC industrial safety system frameworks.

Suffix Breakdown & Model Matrix

  • 10018/O/1: Single-port serial communication module variant designed for 4 TE, 3 HE (4 HP, 3U) Eurorack slot mounting configurations.
  • Base Architecture: Built with an 8 Mbit Flash EPROM and 4 Mbit RAM configuration supporting RS-232, RS-485, and Modbus RTU protocols.

Hardware Specifications

Parameter Specification
Model 10018/O/1
Brand Honeywell
Origin Standard Industrial Manufacturing Facility
Weight 0.25 kg (approximate)
Dimensions 4 TE x 3 HE (4 HP x 3U)
Operating Temp -25 deg C to +60 deg C
Power Consumption 5 VDC at 80 mA nominal (ripple < 50 mV p-p)
Port Architecture Single-port serial architecture
Protocol Support RS-232, RS-485, Modbus RTU (up to 115.2 kbps)
Isolation 2.5 kVrms galvanic isolation
Certifications CE, TÜV, UL

Serial Communication and Galvanic Isolation Architecture

The module implements single-port serial execution supporting RS-232, RS-485, and Modbus RTU communication protocols up to 115.2 kbps data rates. To prevent ground loops and electromagnetic interference across industrial networks, the unit integrates 2.5 kVrms galvanic isolation barriers. On-board memory resources comprise 8 Mbit Flash EPROM and 4 Mbit RAM to handle local buffer management and firmware execution within FSC safety controllers. Real-time diagnostic monitoring is supported via direct LED status indicators.

Frequently Asked Questions

Q: What data transfer speeds are supported by the serial interface?

A: The communication module supports data transfer rates up to 115.2 kbps across its supported protocol configurations.

Q: What level of electrical isolation does the module provide?

A: The unit provides 2.5 kVrms galvanic isolation to ensure signal integrity and protect against common-mode noise in industrial environments.

Q: Is this module compatible with standard rack enclosures?

A: Yes. The unit conforms to 4 TE, 3 HE (4 HP, 3U) physical dimensions designed for standard Eurorack subrack installations.

Field Installation Guidelines

  • Slide the 4 TE, 3 HE module carefully into designated subrack guide rails to prevent damage to backplane connector pins.
  • Ensure that the external 5 VDC power supply maintains stable voltage regulation within nominal tolerances and ripple limits below 50 mV p-p.
  • Verify proper shielding termination on RS-232 and RS-485 serial communication cables to maintain electromagnetic compatibility.
  • Check front-panel LED indicators post-installation to confirm proper power initialization and communication link status.
