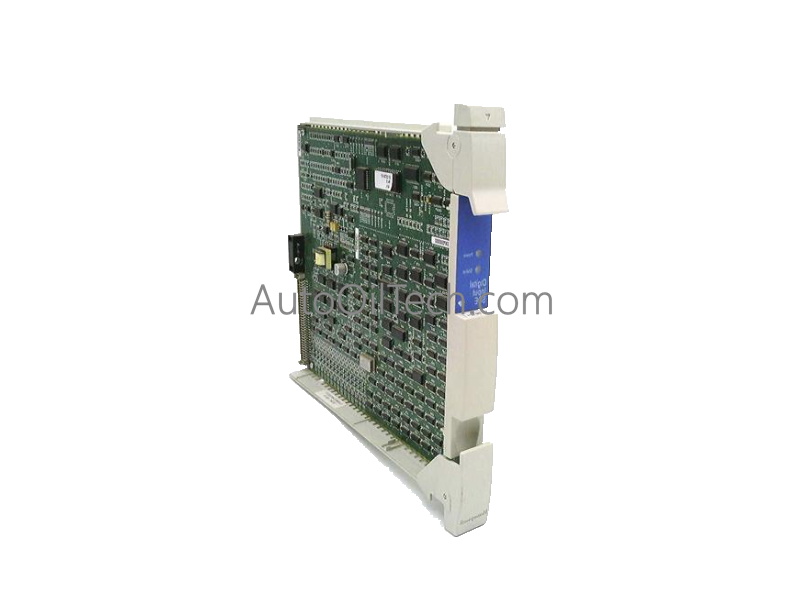

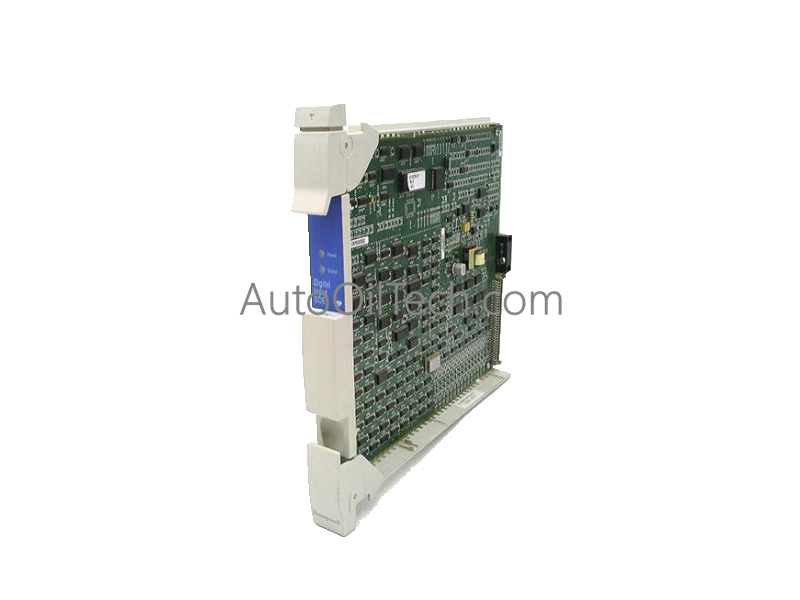

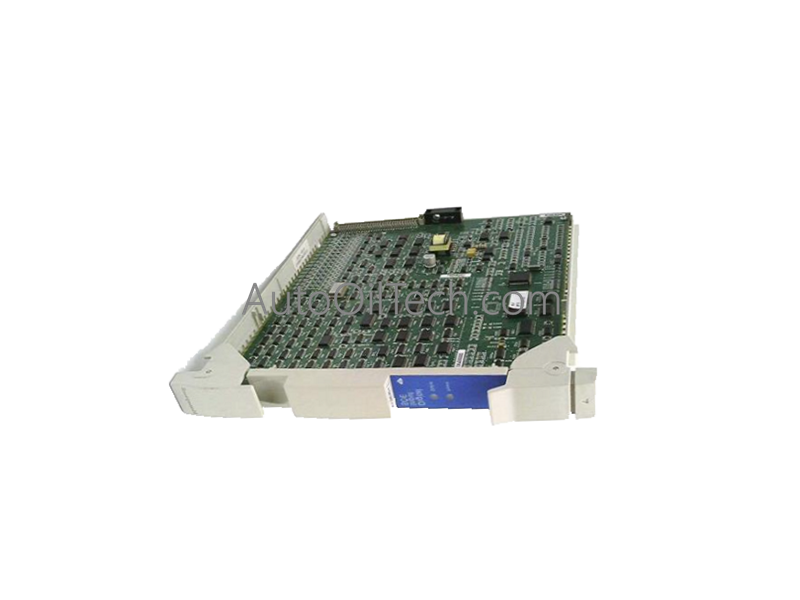

Honeywell 10012/1/2 Module Central Processing Unit Flash Memory

The Honeywell 10012/1/2, also cataloged as the 10012/1/2 Module Central Processing Unit Flash Memory, operates as a dedicated hardware component for central processing and safety-instrumented execution within industrial control systems.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

The module processes multi-channel analog and digital inputs through robust channel-to-channel isolation architecture, featuring crosstalk suppression greater than 60 dB to prevent signal interference across measurement loops. FOUNDATION Fieldbus and Profibus PA connectivity frameworks support integrated data exchange, while cold junction compensation (CJC) maintains thermal stability across termination points. 4-20 mA HART loop protocol compatibility ensures reliable communication with field transmitters and safety devices without signal degradation.

Frequently Asked Questions

Q: Does the CPU module support redundant system configurations?

A: Yes. The module achieves an AK6 safety classification when operating in redundant mode within approved safety-instrumented architectures.

Q: What power supply voltages are required for module operation?

A: The module requires dual power inputs operating at 5 VDC drawing 35 mA and 24 VDC drawing 35 mA.

Q: Can the CPU module be extracted or inserted while the system rack is powered?

A: Power and control signals must be isolated prior to module extraction or insertion to prevent backplane arcing and data corruption.

Field Installation Guidelines

1. Mount the module securely into the designated 4 HP, 3U rack slot within an approved industrial control enclosure.
2. Verify that system power feeds are isolated before connecting low-voltage power and signal wiring to the backplane terminals.
3. Route signal and analog input wiring away from high-voltage power conduits and variable frequency drives to minimize electromagnetic interference.
4. Check status indicators and verify CPU synchronization and input channel scaling using diagnostic software prior to system energization.
