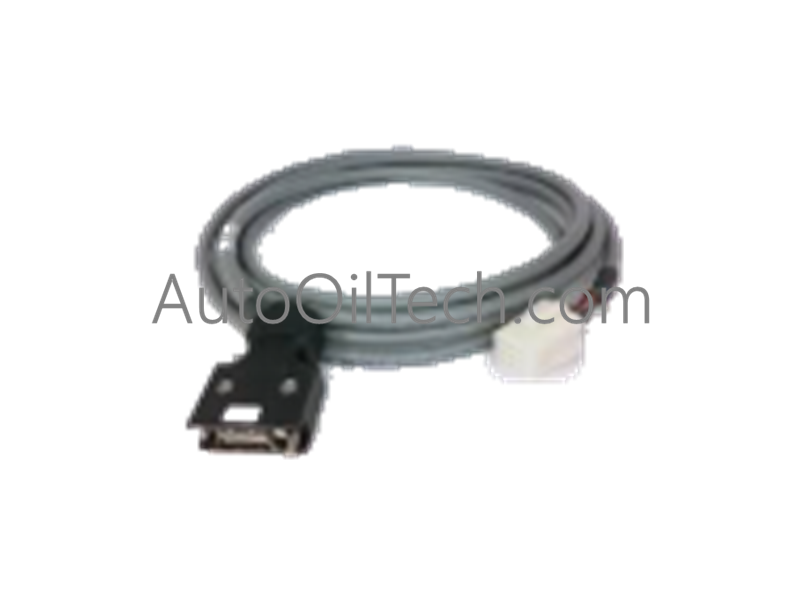

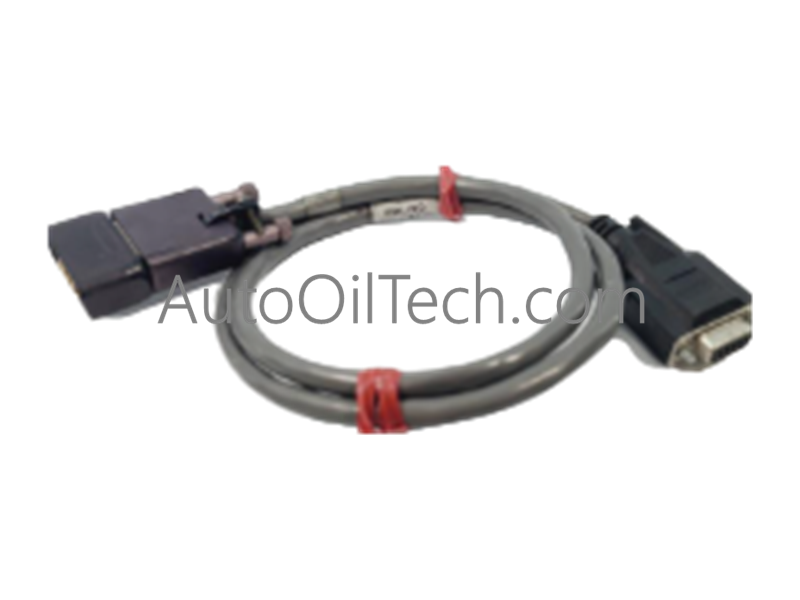

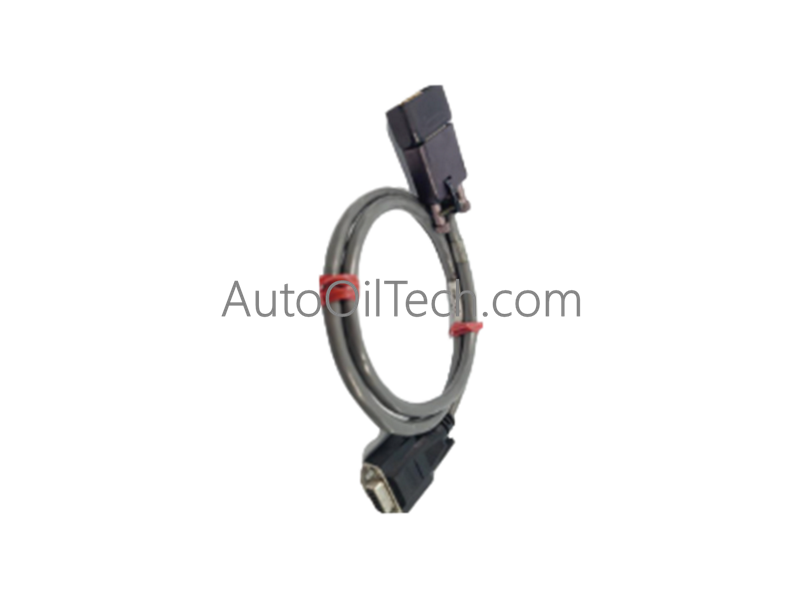

Honeywell 08735400 Communication Cable

Configured for precise and reliable data transfer within Experion PKS C300 controller platforms, the Honeywell 08735400, also cataloged as the 08735400 Communication Cable, provides direct physical and electrical execution.

Suffix Breakdown & Model Matrix

• 08735400: Standard shielded industrial twisted pair cable variant pre-installed with Honeywell-certified connectors for DCS and I/O module interconnects.
• Base Architecture: Engineered for distributed control system expansion, featuring durable industrial-grade PVC insulation and EMI-shielded construction.

Hardware Specifications

Channel-to-Channel Isolation and Signal Integrity Architecture

The cable integrates a shielded twisted pair construction designed to minimize electromagnetic interference (EMI) and safeguard signal integrity across complex industrial automation networks. By maintaining robust common-mode noise suppression, the physical link prevents data corruption during high-speed communication exchanges between DCS controllers, I/O modules, and distributed field devices. The factory-terminated connectors ensure consistent electrical contact resistance and low insertion loss across operational temperature extremes.

Frequently Asked Questions

Q: What control systems are compatible with this communication cable? A: The cable is engineered specifically for Honeywell Experion PKS C300 controllers and related distributed control system (DCS) modules.

Q: Does the cable provide protection against electromagnetic interference? A: Yes. The shielded industrial cable design minimizes electromagnetic interference (EMI) to preserve communication stability in harsh environments.

Q: Are the connectors pre-installed from the factory? A: Yes. The unit comes equipped with factory-installed, Honeywell-certified connectors to facilitate rapid physical installation.

Field Installation Guidelines

• Route the twisted pair cable away from high-voltage power lines and heavy inductive load cables to prevent induced noise coupling.
• Ensure proper grounding of the cable shield at designated cabinet termination points to maintain effective electromagnetic interference (EMI) protection.
• Verify that operating temperatures along the cable run stay within the specified range of -20 deg C to +60 deg C.
• Inspect pre-installed Honeywell-certified connectors for pin alignment and mechanical latch security prior to final system energization.
