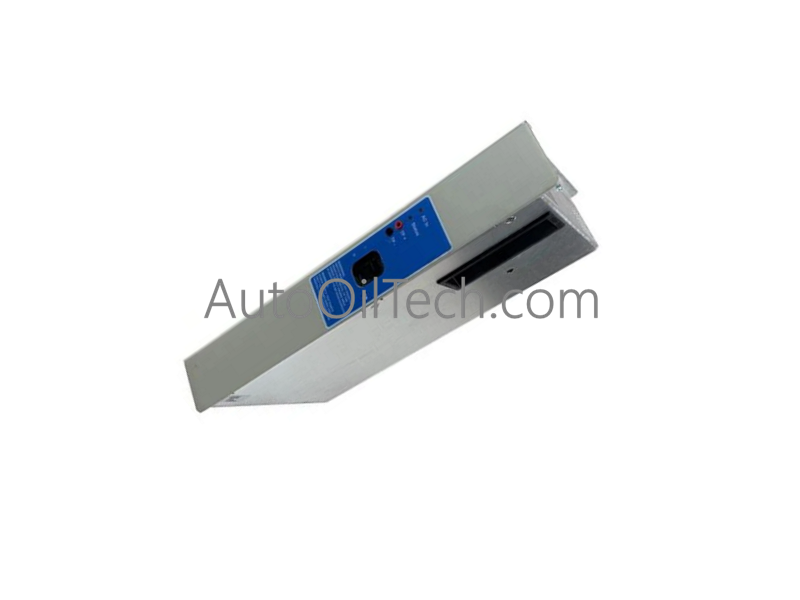

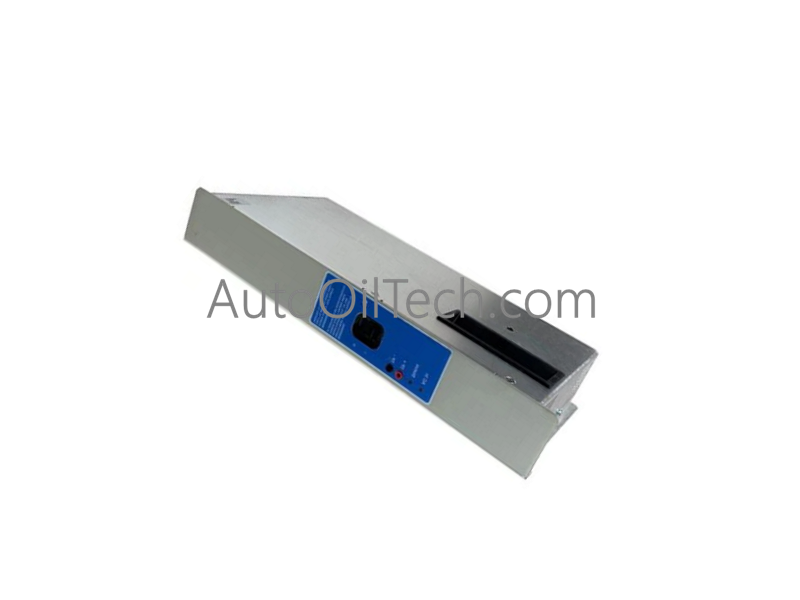

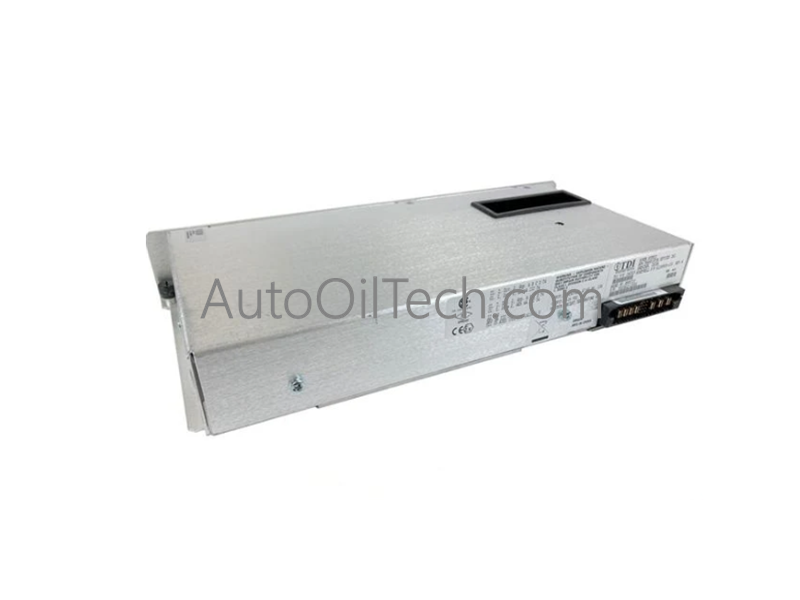

Honeywell 05701-A-0145 Four-Channel Control Card

The Honeywell 05701-A-0145, also cataloged as the 05701-A-0145 Four-Channel Control Card, operates as a dedicated hardware component for precise monitoring and control tasks within Honeywell gas detection and process control networks. The card executes analog signal monitoring, processing real-time current loops from field instrumentation transmitters across four non-interfering measurement tracks.

Hardware Specifications

Process Control and DCS Instrumentation

• 4-20 mA Loop Interface and Signal Ranges: The control card features four discrete input channels optimized for 4-20 mA analog input standard signals. The physical processing circuits support an extended, linear measurement signal range stretching from 0 to 25 mA, permitting the system to accurately evaluate over-range telemetry conditions or under-scale faults generated by field transmitters.
• Channel-to-Channel Isolation and Loop Protection: Each current loop path integrates standalone fault boundaries that enforce strict channel-to-channel isolation parameters. The onboard protection array withstands open circuit and short circuit voltage anomalies up to 50 V, ensuring that a physical wire fault on an isolated loop does not propagate damage through adjacent operational channels or drop host backplane logic stability.

Frequently Asked Questions

Q: How does the card protect itself if a field sensor cable is accidentally shorted to a 24 VDC line?

A: The 05701-A-0145 is equipped with continuous active loop protection. If a fault or cross-connection introduces overvoltage parameters up to 50 V, the internal solid-state barriers isolate the excessive current spike from the internal measuring networks, avoiding thermal overload on the board.

Q: Is the isolated 24 VDC output loop derived from the card itself or from external field sources?

A: The module contains internal regulation components that generate an isolated 24 VDC +/-5 % output designed to power the connected 4-20 mA field transmitters directly. This design removes the need for supplementary field power distribution blocks, assuming the total line impedance stays under the 500 ohms threshold.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Guide the 0.18 kg control card along the dedicated card guide paths of the standard 05701 rack assembly. Slide the module completely backward until the edge connectors line up square with the rear backplane interface socket, and push firmly until the front locking mechanisms fully click into structural engagement.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route all 4-20 mA signal pairs through enclosed low-potential wire trays, keeping a distinct separation from alternating current lines or heavy motor drive cables. Terminate the instrument cable shield braids directly to the central chassis grounding strip at the rack entry point to direct external electromagnetic noise fields straight to the primary control cabinet copper earth bus.
