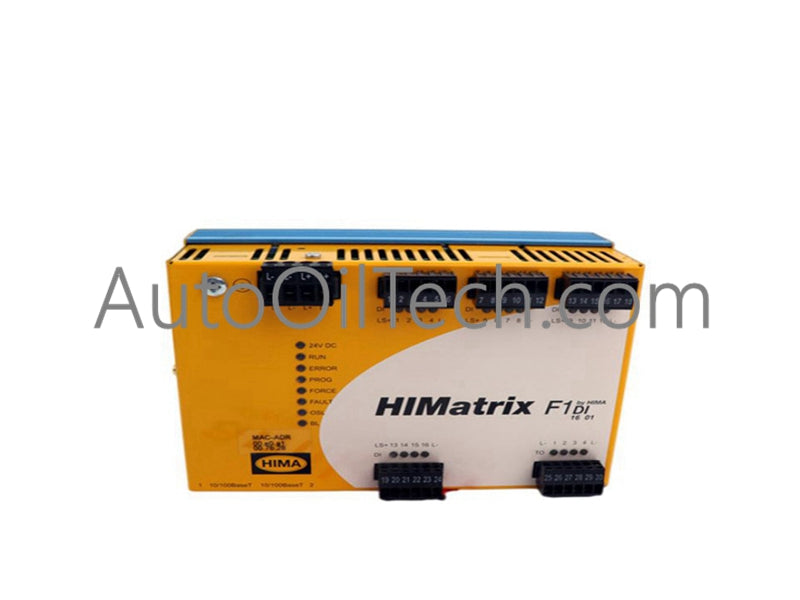

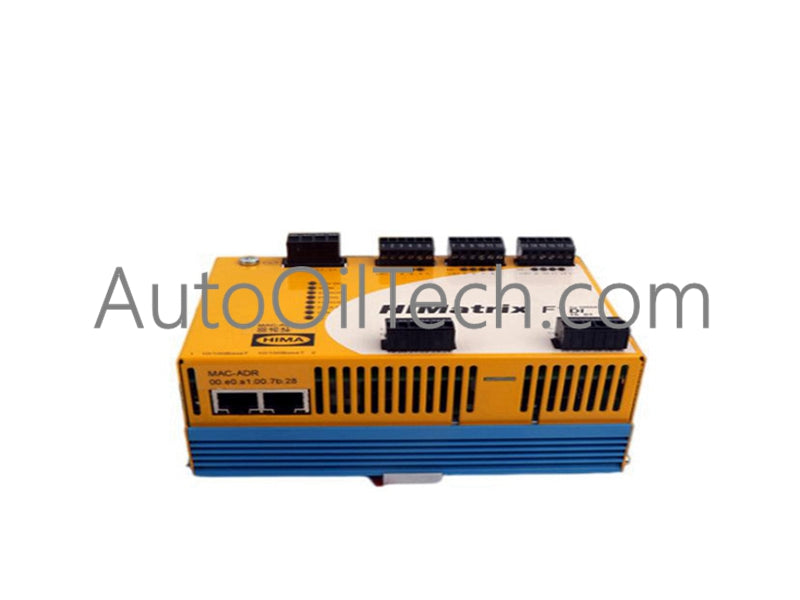

HIMA HIMatrix F1 DI16 01 Safety Digital Input Module

Product Description

The HIMA HIMatrix F1 DI16 01 is a safety-related digital input module designed for use in distributed control systems (DCS). It provides 16 non-isolated digital inputs and 4 pulsed outputs, with Ethernet connectivity and TÜV-certified compliance up to SIL 3. Compact and robust, this module is engineered for safety-critical applications in industrial automation.

Technical Specifications

• Model Number: F1 DI16 01

• Module Type: Safety-related digital input module

• Manufacturer: HIMA

• Operating Voltage: 24 VDC, –15%…+20% (safe insulation per IEC 61131-2)

• Current Input (Max): 0.8 A

• Fuse (External): 10 A time-lag

• Response Time: ≥ 20 ms

• Ethernet Interfaces: 2 × RJ-45, 10/100BaseT with integrated switch

• Operating Temperature: 0…+60 °C

• Storage Temperature: –40…+85 °C

• Type of Protection: IP20

• Dimensions (W × H × D): 152 × 114 × 66 mm

• Weight: 0.7 kg

Digital Inputs:

• Number of Inputs: 16 (non-galvanically isolated)

• High Level: 15…30 VDC, ≥ 2 mA at 15 V

• Low Level: ≤ 5 VDC, ≤ 1.5 mA (1 mA at 5 V)

• Switching Point: Typ. 7.5 V

• Switching Time: 250 μs

• Supply: 4 × 19.2 V / 40 mA (short-circuit-proof)

Pulsed Outputs:

• Number of Outputs: 4 (non-galvanically isolated)

• Output Voltage: ≥ L+ minus 4 V

• Output Current: ~60 mA

• Minimum Load: None

• Overload Behavior: Short-circuit current 60 mA at 24 V

Extended Variant (F1 DI16 011):

• Operating Temperature: –20…+60 °C

• Weight: ~0.7 kg

• Protective Coating: Electronics coated with lacquer for harsh environments

Certifications & Standards:

• CE EMC, ATEX Zone 2

• TÜV IEC 61508 up to SIL 3

• IEC 61511:2004

• EN 954-1:1996 up to Cat. 4

• UL ANSI/UL 508, NFPA 70, NFPA 79

• CSA C22.2 No.142, CSA C22.2 No.213

• FM Approvals Class I, Div.2, Groups A–D

• IEC 61508, EN 1127-1

Application Scenarios

The F1 DI16 01 is ideal for safety-critical automation in chemical plants, oil & gas facilities, and energy systems. It ensures reliable input monitoring and pulsed output control, with Ethernet connectivity for integration into modern DCS architectures.

FAQ

Q: How many digital inputs are available? A: The module provides 16 non-isolated digital inputs.

Q: Does it include pulsed outputs? A: Yes, it has 4 pulsed outputs with short-circuit protection.

Q: What certifications does it meet? A: It is TÜV-certified up to SIL 3 and compliant with ATEX Zone 2, UL, CSA, and FM standards.
