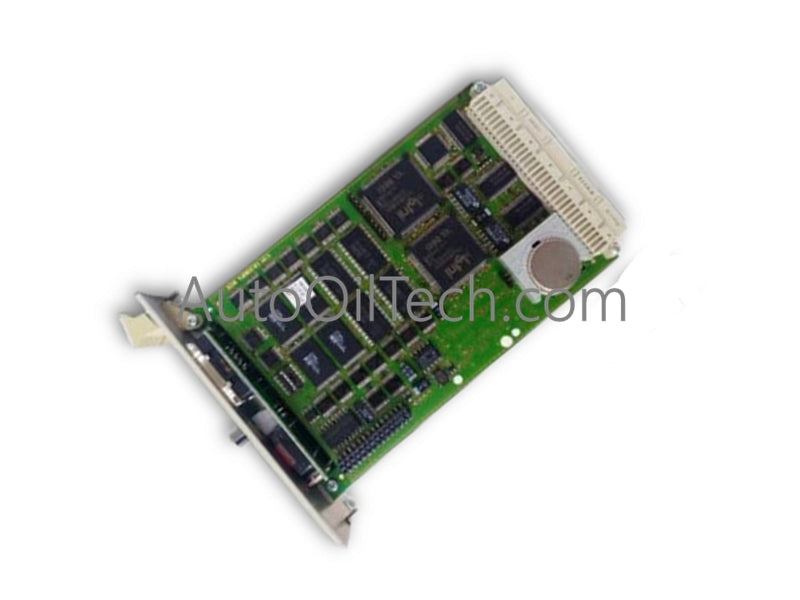

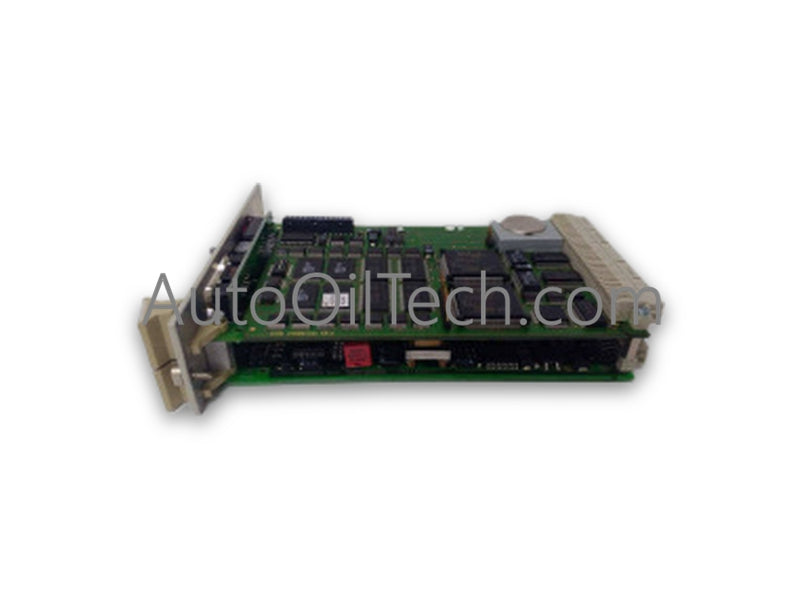

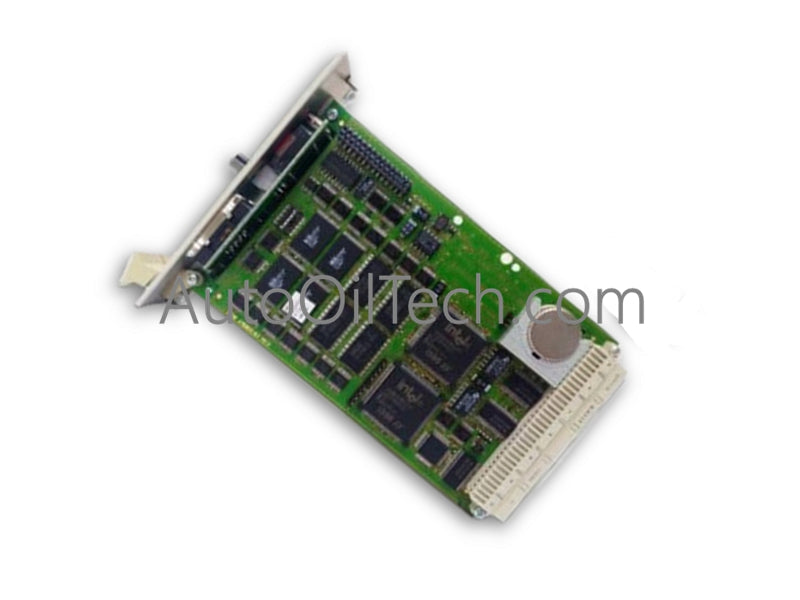

HIMA F8652E HIQuad Central Processing Unit

HIMA F8652E HIQuad Central Processing Unit

The HIMA F8652E, also cataloged as the F8652E CPU Module, operates as a dedicated hardware component for safety logic execution and real-time process evaluation within HIQuad H41q/H51q safety controller systems. The assembly processes field device signals, executes complex logical routines, and generates output commands to maintain plant safety interlocks. It coordinates system diagnostics and control task execution across the internal safety backplane.

Hardware Specifications

SIL3 Certification and Fail-Safe State Execution

The HIMA F8652E CPU module incorporates dedicated hardware self-diagnostics to satisfy IEC 61508 requirements up to SIL3. The internal dual-processor architecture continuously cross-checks instruction execution, memory integrity, and backplane data buses. Upon detection of an unrecoverable internal fault or external communication disturbance, the module executes a fail-safe state execution, de-energizing output channels and placing the connected safety loops into a predefined de-energized-to-trip state. Galvanic isolation between logic circuits and external communication lines prevents transient field surges from interrupting critical safety tasks.

Frequently Asked Questions

Q: Can the HIMA F8652E CPU module be hot-swapped in a redundant HIQuad controller configuration?

A: Yes, in dual-redundant H41q/H51q configurations, a fault-isolated F8652E CPU can be replaced under power without interrupting active safety logic execution on the companion processor.

Q: How does the HIMA F8652E handle internal hardware errors during process monitoring?

A: Integrated real-time diagnostic routines detect memory or CPU logic faults and automatically trigger safety trip actions or alert sequences while forcing outputs to their fail-safe state.

Q: What safety system platforms are compatible with the F8652E processor card?

A: The F8652E is engineered exclusively for integration into HIMA HIQuad series H41q and H51q rack architectures.

Field Installation Guidelines

1. Ensure protective grounding (PE) terminal connections on the HIQuad rack frame are secure prior to inserting the CPU module.
2. Align the F8652E circuit board edges with the designated CPU slot rails and push firmly until the backplane connectors seat completely.
3. Fasten the top and bottom panel retaining screws to secure the module against vibration and establish continuous chassis grounding.
4. Verify that all external communication interfaces (such as RS485 or Ethernet diagnostic lines) use shielded twisted-pair cables with 360-degree shield termination at the gland plate.
5. Maintain unobstructed airflow above and below the HIQuad chassis to prevent internal thermal buildup during continuous operation.
