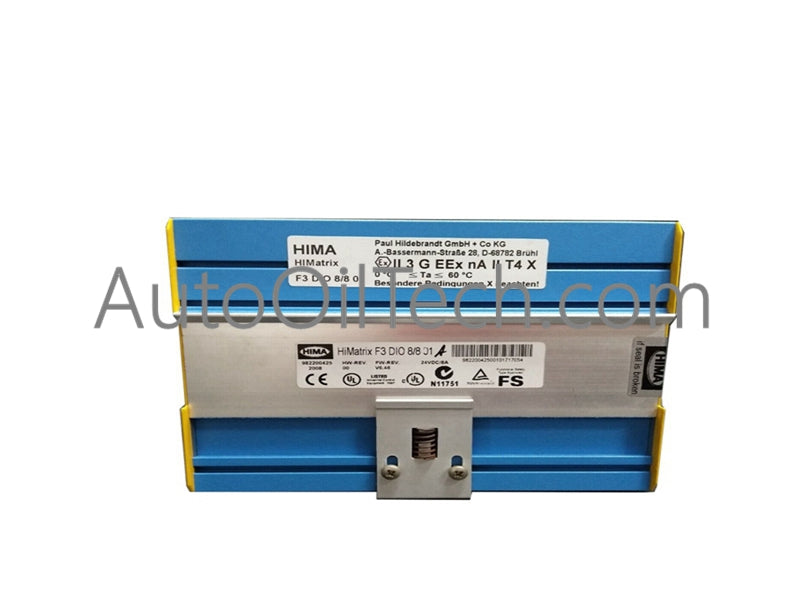

HIMA F3 DIO 8/8 01 HIMatrix Digital Input Output Module

Product Overview

The HIMA F3 DIO 8/8 01 functions as a compact, fail-safe digital input/output module for the HIMatrix system. It controls 8 digital inputs and 8 digital outputs for Safety Integrity Level 3 (SIL 3) automation tasks.

Technical Specifications

• Module Type: Fail-safe digital input and output module
• Digital Inputs: 8 channels (24 VDC)
• Digital Outputs: 8 channels (24 VDC, 0.5 A per channel)
• Safety Certification: Up to SIL 3 (IEC 61508) and PL e (EN ISO 13849-1)
• Reaction Time: Less than 5 milliseconds internal processing
• Communication Interface: safeethernet via RJ45 ports
• Operating Temperature: 0°C to +60°C

Engineering Advantages

• Solve Space Constraints: The F3 DIO 8/8 01 packs 16 total safety I/O points into a compact metal housing. It fits perfectly inside shallow remote terminal cabinets and crowded machinery control panels.
• Defeat Heavy Noise: Integrated galvanic isolation and electrical filtering shield the microprocessor from heavy electromagnetic interference (EMI). It maintains flawless data transmission near high-voltage motor drives.
• Accelerate Commissioning: Clear front-panel status LEDs indicate power, system faults, and individual I/O states. Maintenance technicians isolate wiring faults instantly without opening laptop diagnostic tools.
• Simplify Distributed Safety: The module communicates via HIMA safeethernet protocols. You link multiple modules across standard Ethernet infrastructure to create unified, plant-wide safety networks.

FAQs

• Question: What programming environment does the F3 DIO 8/8 01 require?
• Answer: Engineers program this module using HIMA SILworX software. It supports IEC 61131-3 function block diagrams and structured text.
• Question: How does the module react to short circuits on a digital output?
• Answer: The module detects the overcurrent state immediately. It shuts down the affected channel, triggers a local diagnostic LED, and sends an alarm packet to the central controller.
• Question: Can I integrate this module with standard non-safety PLCs?
• Answer: Yes. While the F3 DIO 8/8 01 handles SIL 3 safety functions independently, it shares standard diagnostic and process data with third-party DCS or SCADA systems via Modbus TCP or PROFINET.
