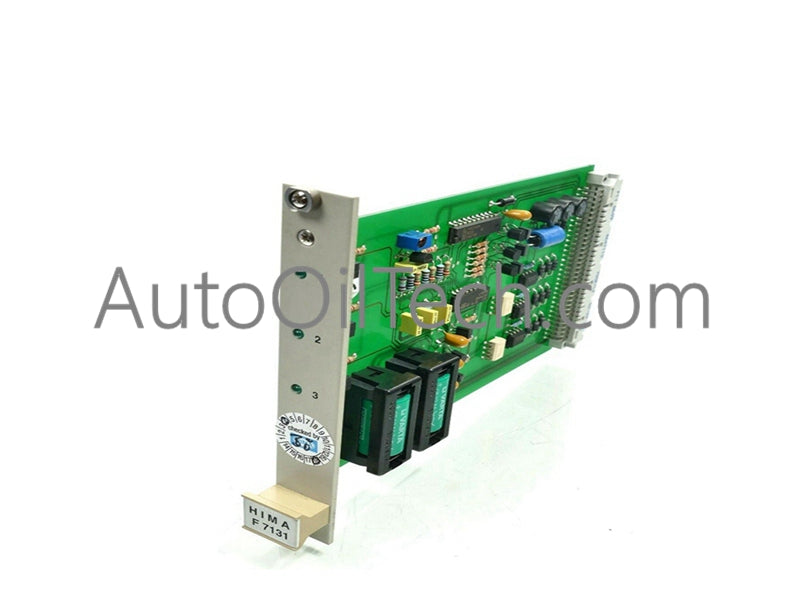

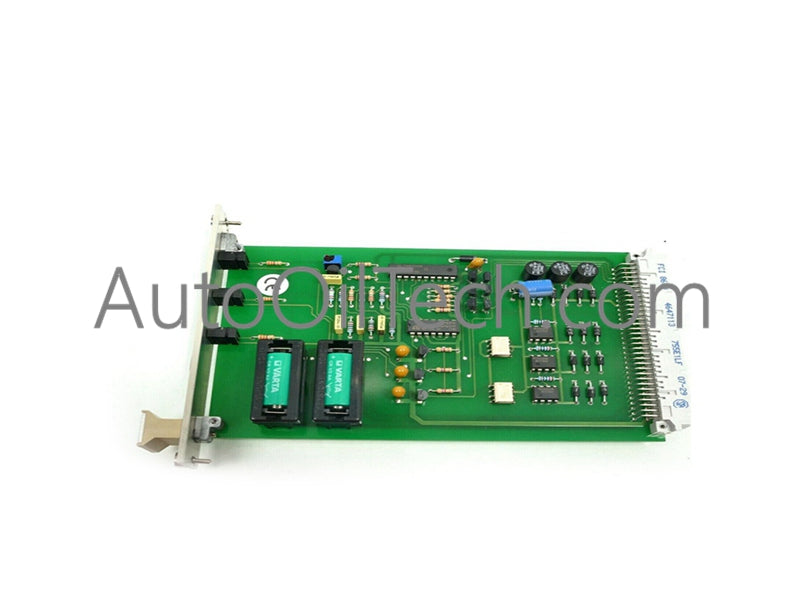

HIMA F 7131 Power Supply Monitoring Module

Description

The HIMA F7131 Power Supply Monitoring Module is designed to safeguard and supervise the power status of safety instrumented systems. It provides redundancy, diagnostics, and real-time monitoring to ensure continuous safe operation in industrial environments.

Specifications

• Manufacturer: HIMA

• Model: F7131

• Type: Power Supply Monitoring Module

• Input Voltage: 24 VDC

• Input Current: 2 A

• Power Consumption: 5 W

• Output Signals: Voltage, current, power, fault indication

• Communication: Profibus DP

• Operating Temperature: -20 °C to +50 °C

• Humidity: 10%–95% non-condensing

• Protection Class: IP66

• Dimensions: 110 × 75 × 30 mm

• Weight: approx. 0.5 kg

• System Compatibility: HIMA PES H51q and related safety systems

• Certification: IEC 61508 SIL3

• Origin: Germany

• Warranty: 12 months

Features

• High Safety Integrity: SIL3 certification for critical safety applications

• Redundancy Support: Can be configured with redundant power supplies for enhanced reliability

• Comprehensive Monitoring: Supervises up to three power supplies generating 5V system voltage

• Real-Time Indication: Equipped with LED displays for immediate status visualization

• Advanced Diagnostics: Provides detailed diagnostic information for fault detection and maintenance

• System Integration: Works with central modules (e.g., F8650/F8651) for coordinated monitoring and diagnostics
