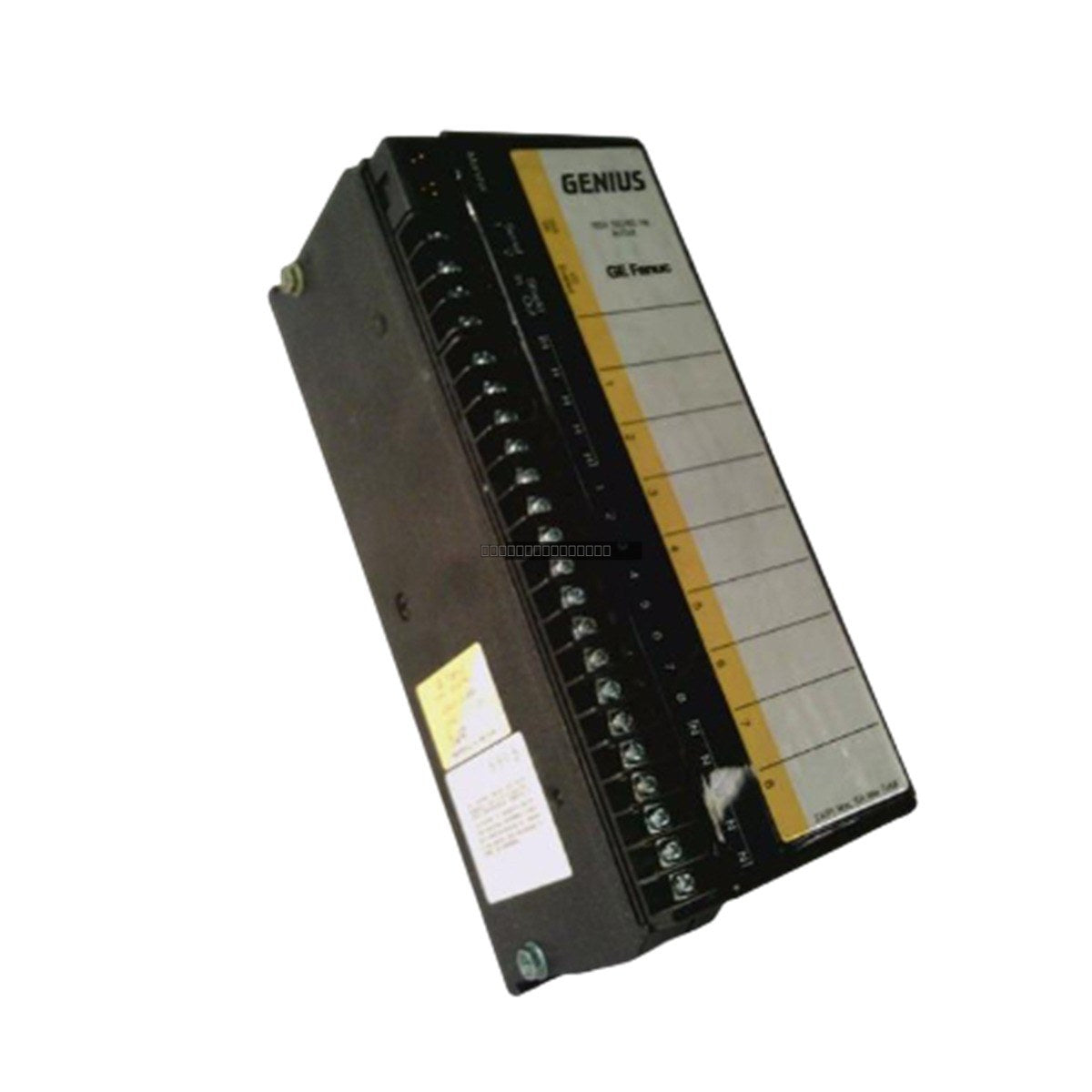

The General Electric IC660BBD100 is a component of the Genius I/O series, designed to provide robust and reliable signal interfacing in industrial automation environments. This circuit I/O block is engineered to handle 115 Volts AC operations, facilitating communication and control within distributed I/O architectures. It is built to maintain system integrity through high isolation voltage ratings, ensuring stable performance in demanding electrical conditions.
Features
Supports 115 Volts AC input/output operations.
Integrated 1500 Volts isolation for enhanced electrical protection.
Designed for 50/60 Hertz power frequency compatibility.
Compact block design optimized for space-efficient cabinet mounting.
Rated for operation in ambient temperatures ranging from 0 to 60 degC.
Applications
This module is typically utilized in GE Fanuc Genius I/O networks for distributed control applications, including machine tool control, assembly line automation, and process monitoring where reliable AC signal handling is required.
Technical Specifications
Product Model
IC660BBD100
Series
Genius I/O
Voltage Rating
115 Volts AC
Isolation Voltage
1500 Volts
Power Dissipation
28 Watts
Terminal Board Rating
5 Amperes
Operating Temperature
0 to 60 degC
Installation Guidelines
Ensure the control system power is disconnected before installing or removing the I/O block.
Mount the unit in a clean, dry environment with adequate ventilation to maintain the specified operating temperature range.
Use appropriate shielded cabling for signal connections to minimize electromagnetic interference (EMI).
Verify that all terminal connections are secure and tightened to the specified torque to prevent intermittent signal loss.
Adhere to standard ESD (Electrostatic Discharge) handling procedures during installation to protect internal circuitry.
FAQ
What is the primary function of the IC660BBD100?
The IC660BBD100 is a Genius I/O block used to interface field devices with a GE Fanuc control system, specifically handling 115V AC signals.
What is the isolation rating for this module?
This unit features an isolation voltage of 1500 Volts to protect the control network from electrical transients.
