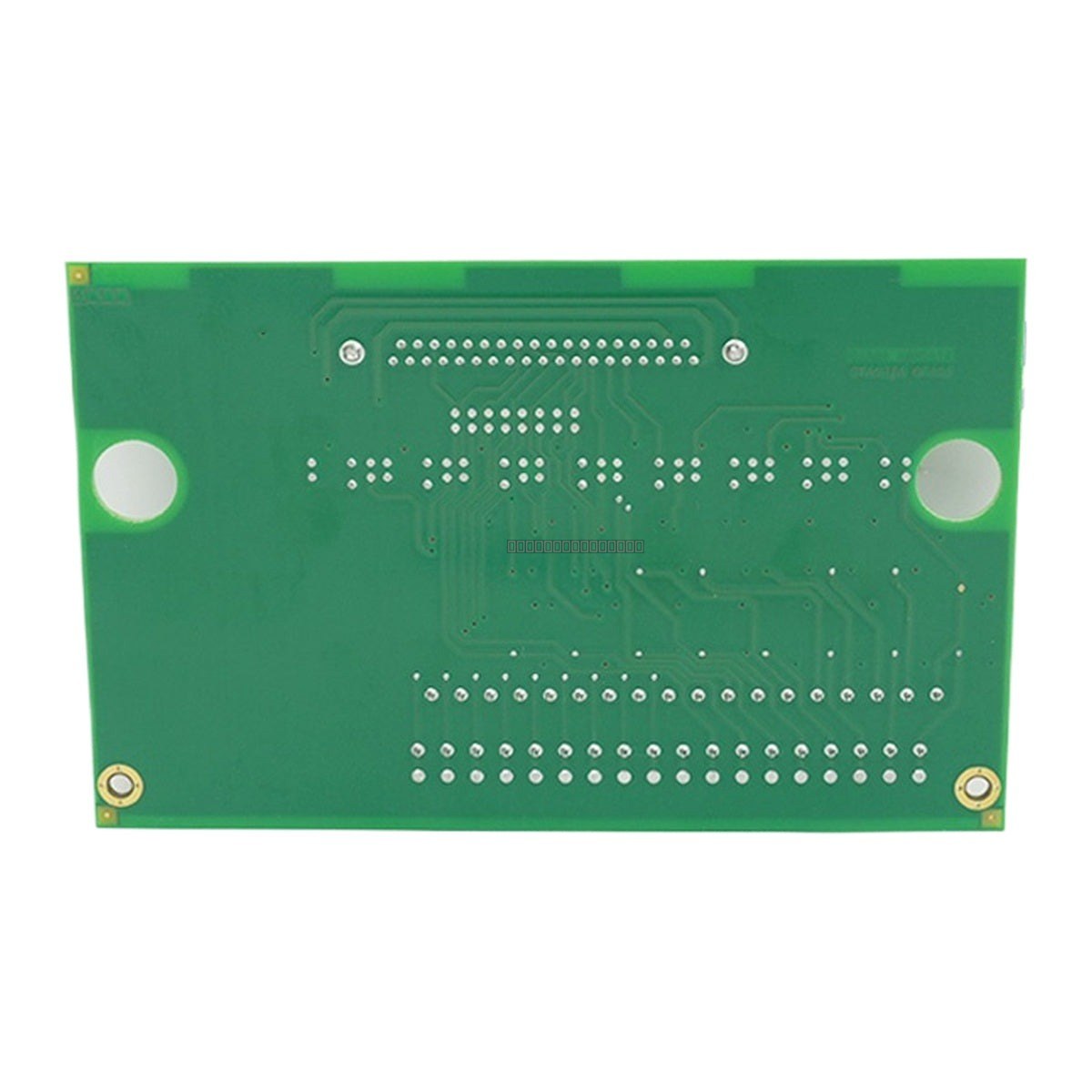

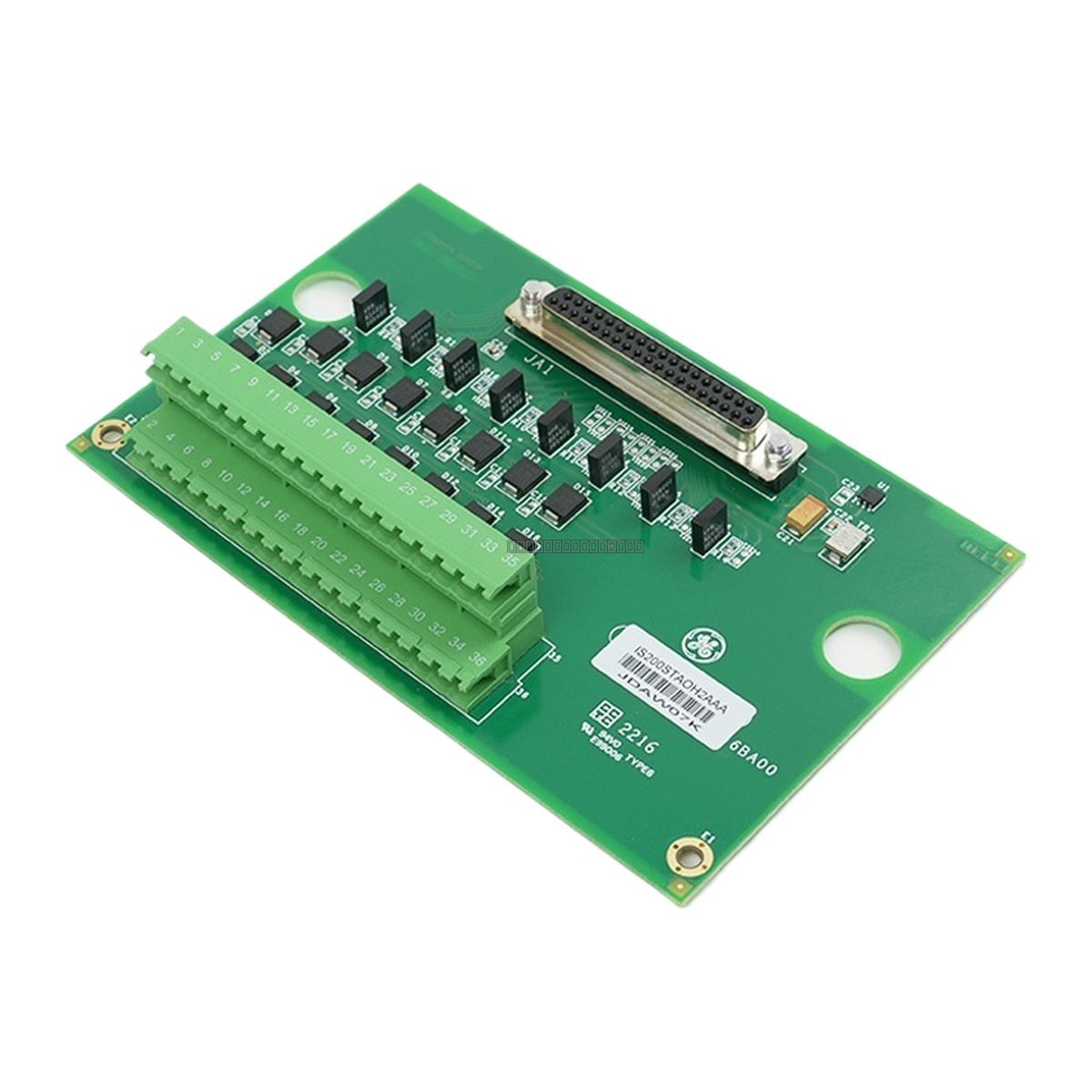

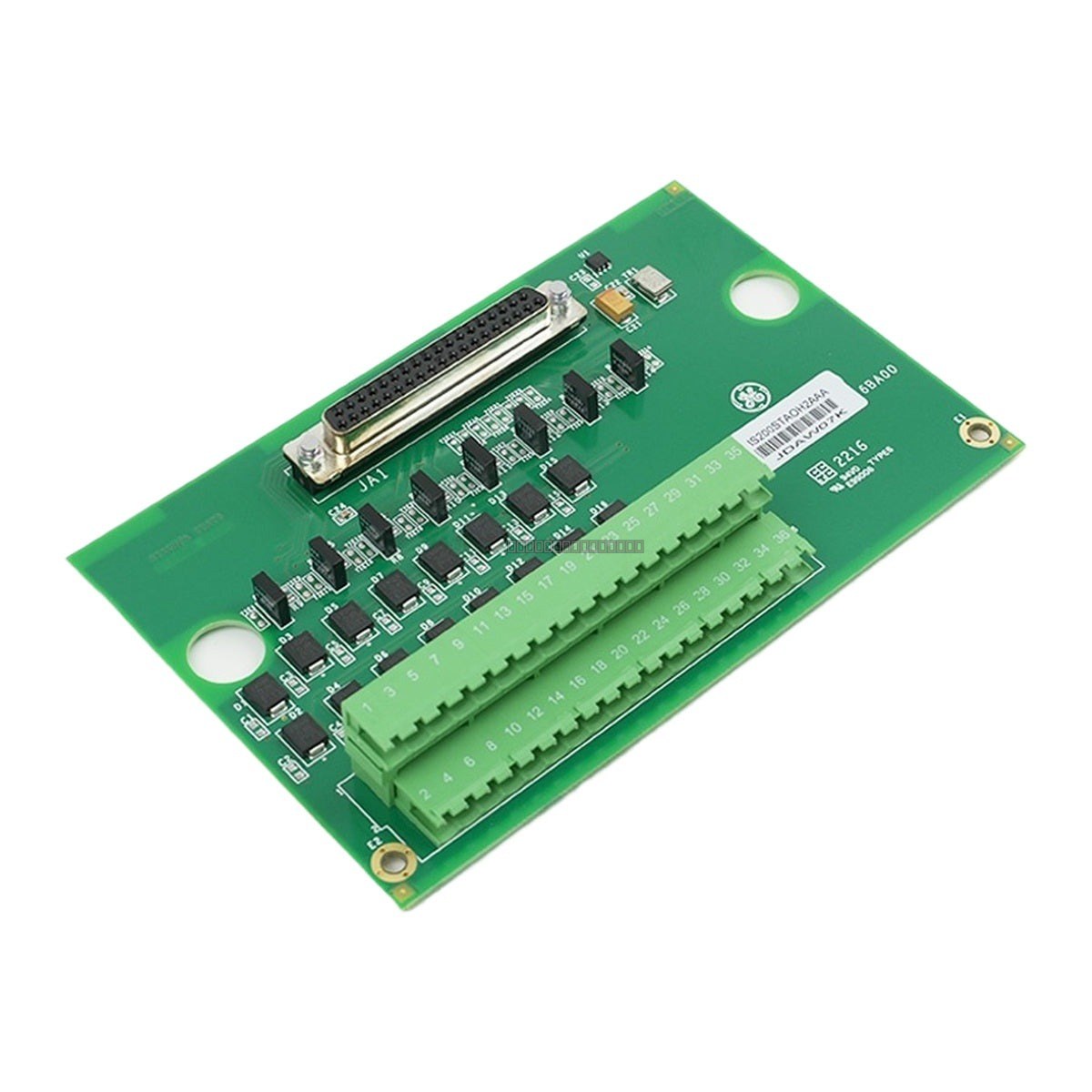

General Electric IS200STAOH2AAA Mark VIe Simplex Analog Output Terminal Board

Description

The IS200STAOH2AAA is a Simplex Analog Output (STAO) terminal board manufactured by General Electric as part of the Mark VIe Speedtronic control system. This terminal board is designed to interface with the PAOC I/O pack to provide eight channels of analog output, typically used for controlling field devices such as servo valve actuators, fuel flow regulators, and other process control instrumentation.

Features

• Simplex configuration for Mark VIe control systems.
• Provides eight 0-20 mA analog output channels.
• Onboard ID chip for automatic I/O processor recognition and system diagnostics.
• Integrated noise reduction circuitry for enhanced signal integrity.
• High-density Euro-block style terminal connections for secure field wiring.
• Compact design suitable for flat or DIN-rail mounting.

Applications

• Gas and steam turbine control systems (servo valve and fuel flow regulation).
• Wind turbine pitch control and power regulation.
• Gas compression station process control.
• Precise regulation of pressure and temperature in chemical manufacturing circuits.

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the terminal board.
• Mount the board on a standard DIN-rail or flat surface within the control cabinet.
• Use shielded cabling for all analog signal connections to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the terminal board chassis to the cabinet ground bus.
• Verify that the onboard ID chip is properly seated to allow the I/O pack to identify the module during startup.
• Maintain adequate spacing around the module to ensure proper ventilation and cooling.

FAQs

What is the primary function of the IS200STAOH2AAA?

The IS200STAOH2AAA is a Simplex Analog Output terminal board used in the Mark VIe system to manage and distribute analog control signals to field devices.

How is the board identified by the system?

The board features an onboard ID chip that communicates with the I/O processor, allowing the system to automatically recognize the board and perform necessary diagnostics.

Can this board be used in TMR systems?

This specific model is designed for Simplex applications. Please verify your system architecture requirements before installation.

What is the mounting method for this board?

The IS200STAOH2AAA is designed for DIN-rail mounting, allowing for efficient space utilization within industrial control cabinets.
