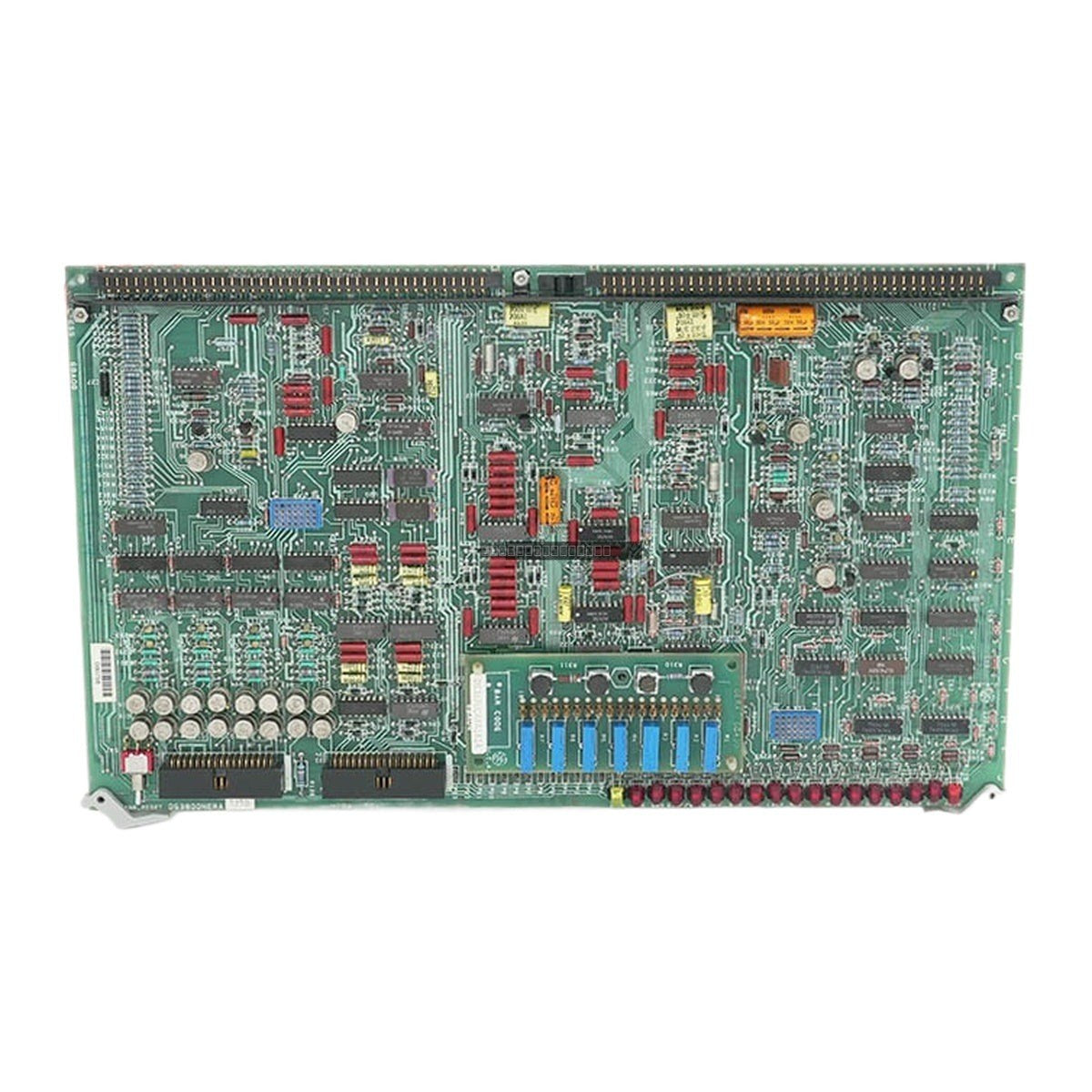

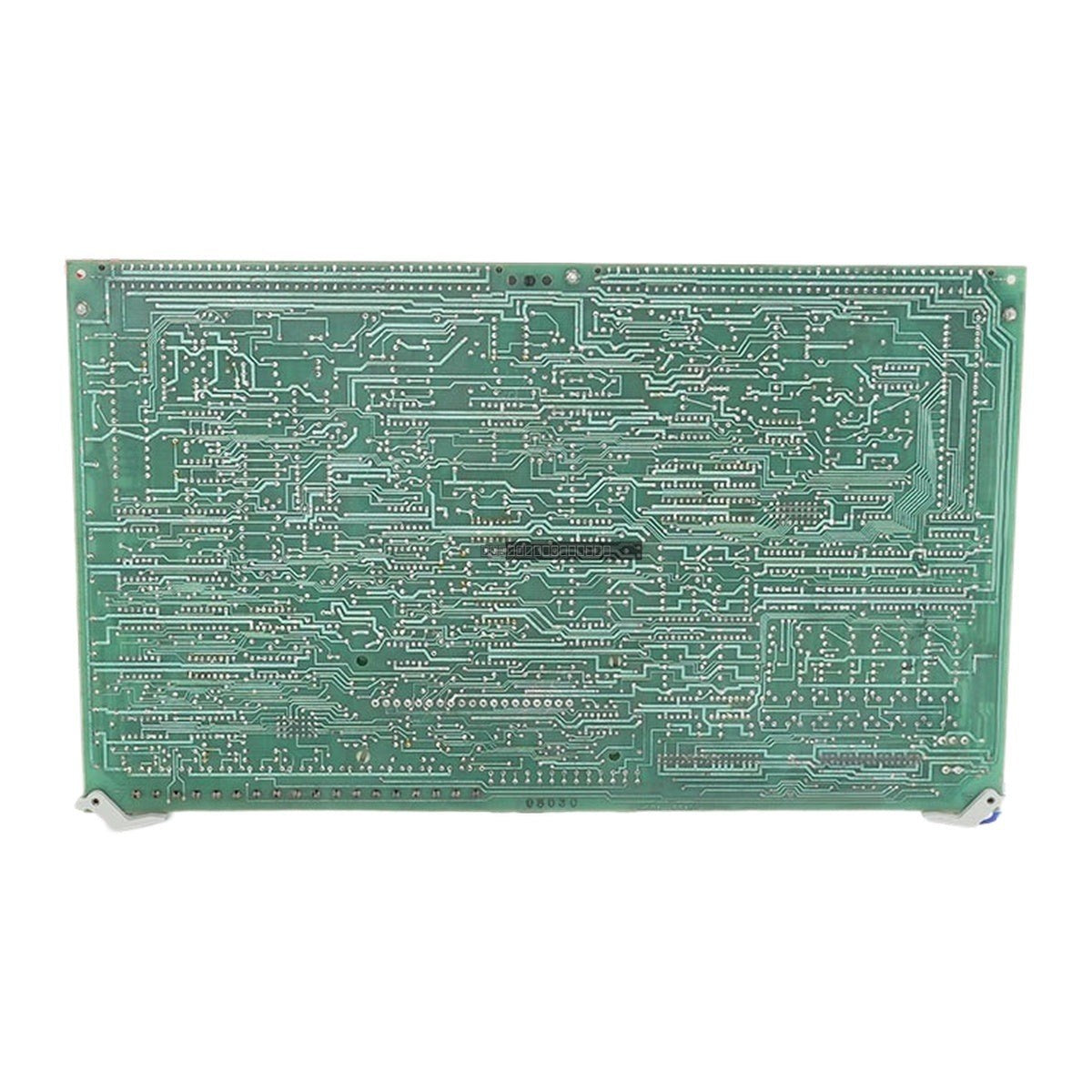

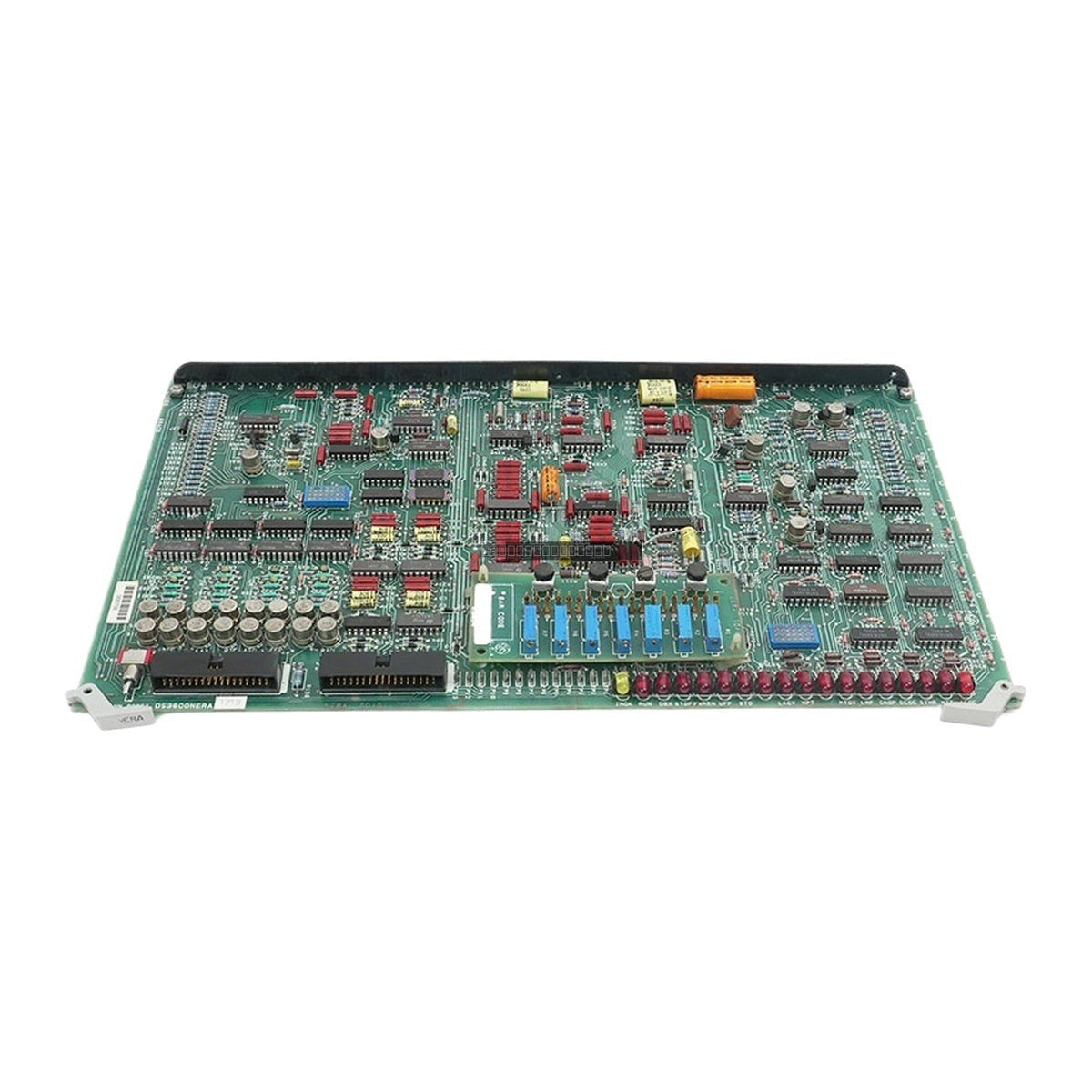

General Electric DS3800NERA1P1D Analog Microprocessor Board

The General Electric DS3800NERA1P1D is an Analog Microprocessor Board engineered for the Speedtronic Mark IV turbine control system. This module serves as a critical interface for analog signal processing, facilitating the conversion and regulation of signals required for the precise management of gas and steam turbines in industrial power generation and heavy machinery environments.

Features

• Designed specifically for the GE Speedtronic Mark IV control architecture.
• Facilitates high-precision analog-to-digital and digital-to-analog signal conversion.
• Supports critical turbine functions including fuel control, speed regulation, and system monitoring.
• Engineered for high-reliability operation in demanding power plant and refinery environments.

Applications

• Gas and Steam Turbine Control Systems.
• Industrial Power Generation and Grid Synchronization.
• Turbine Protection Systems (flame loss, pressure, and vibration monitoring).
• Oil and Gas Operations, including offshore rigs and processing facilities.

Technical Specifications

Installation Guidelines

• ESD Protection: This module contains sensitive CMOS components. Always utilize a properly grounded ESD wrist strap when handling the board to prevent electrostatic discharge damage.
• Power Status: Ensure the control rack is completely powered down before attempting to install or remove the module. Hot-swapping can result in permanent damage to the microprocessor and backplane circuitry.
• Configuration: Inspect the board for physical jumpers or DIP switches. These must be configured to align with your specific turbine application and site-specific control logic documentation.
• Maintenance: If cleaning is necessary, use only non-conductive, residue-free electronic-grade cleaners.

FAQs

What is the primary function of the DS3800NERA1P1D?

The DS3800NERA1P1D is an analog microprocessor board used within the Mark IV Speedtronic system to monitor and regulate analog signals, which are essential for turbine speed control, fuel management, and overall system stability.

Is this module compatible with other Mark series systems?

This board is specifically designed for the Speedtronic Mark IV series. It is recommended to verify your system's control logic and hardware compatibility before installation.

What should I do if the module requires configuration?

Before installation, verify the settings of all onboard jumpers and DIP switches against your facility's original control logic diagrams to ensure the board is correctly mapped to your turbine's operational requirements.
