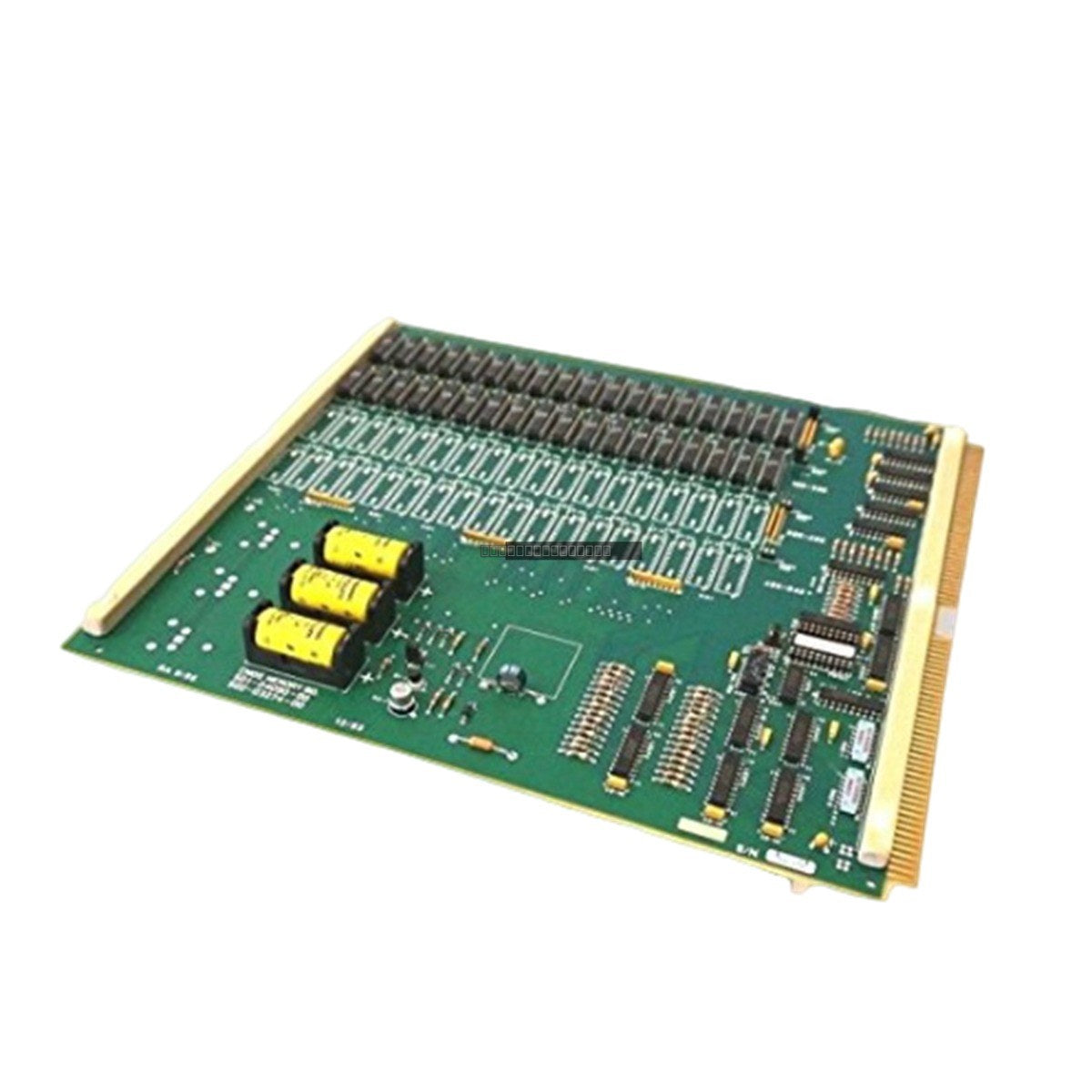

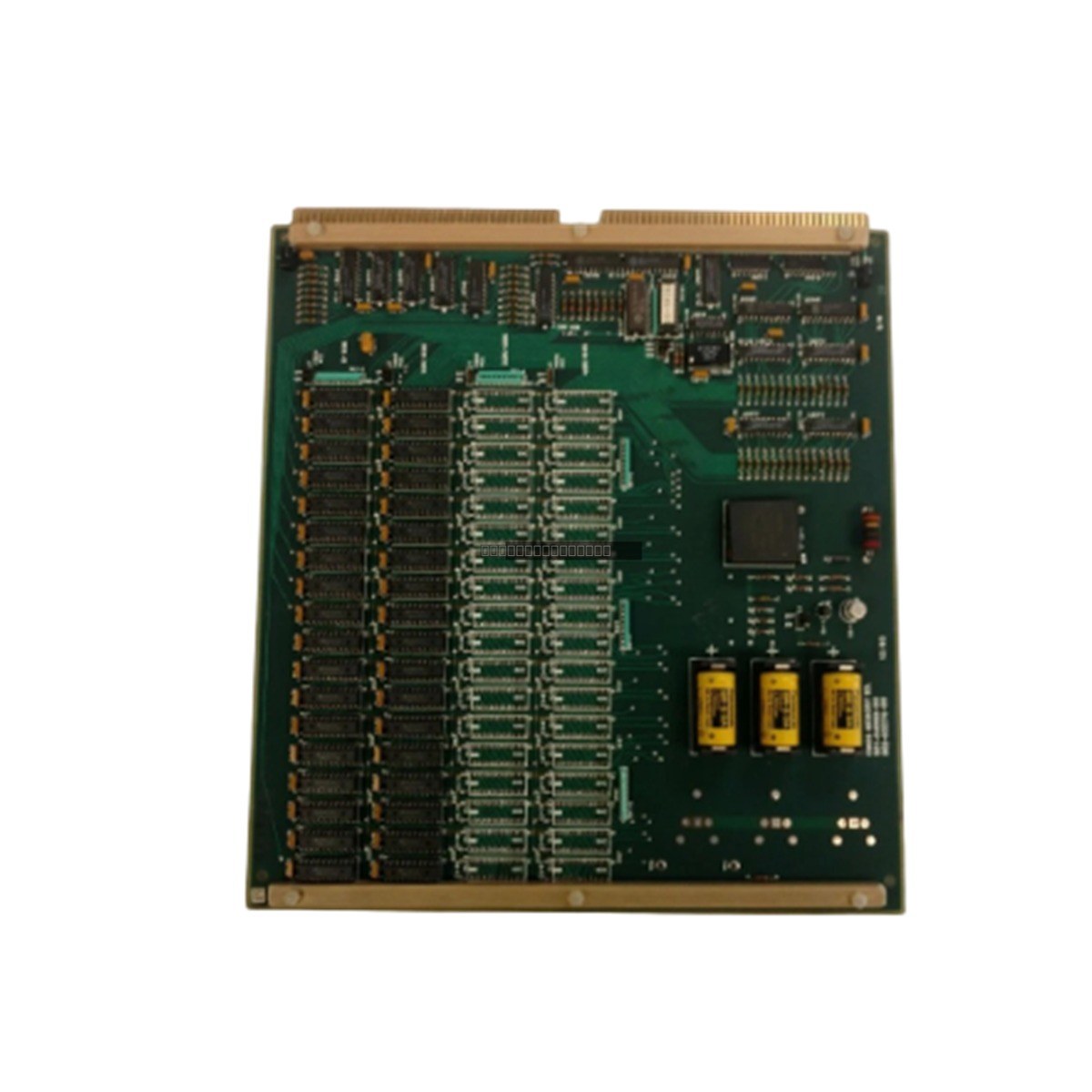

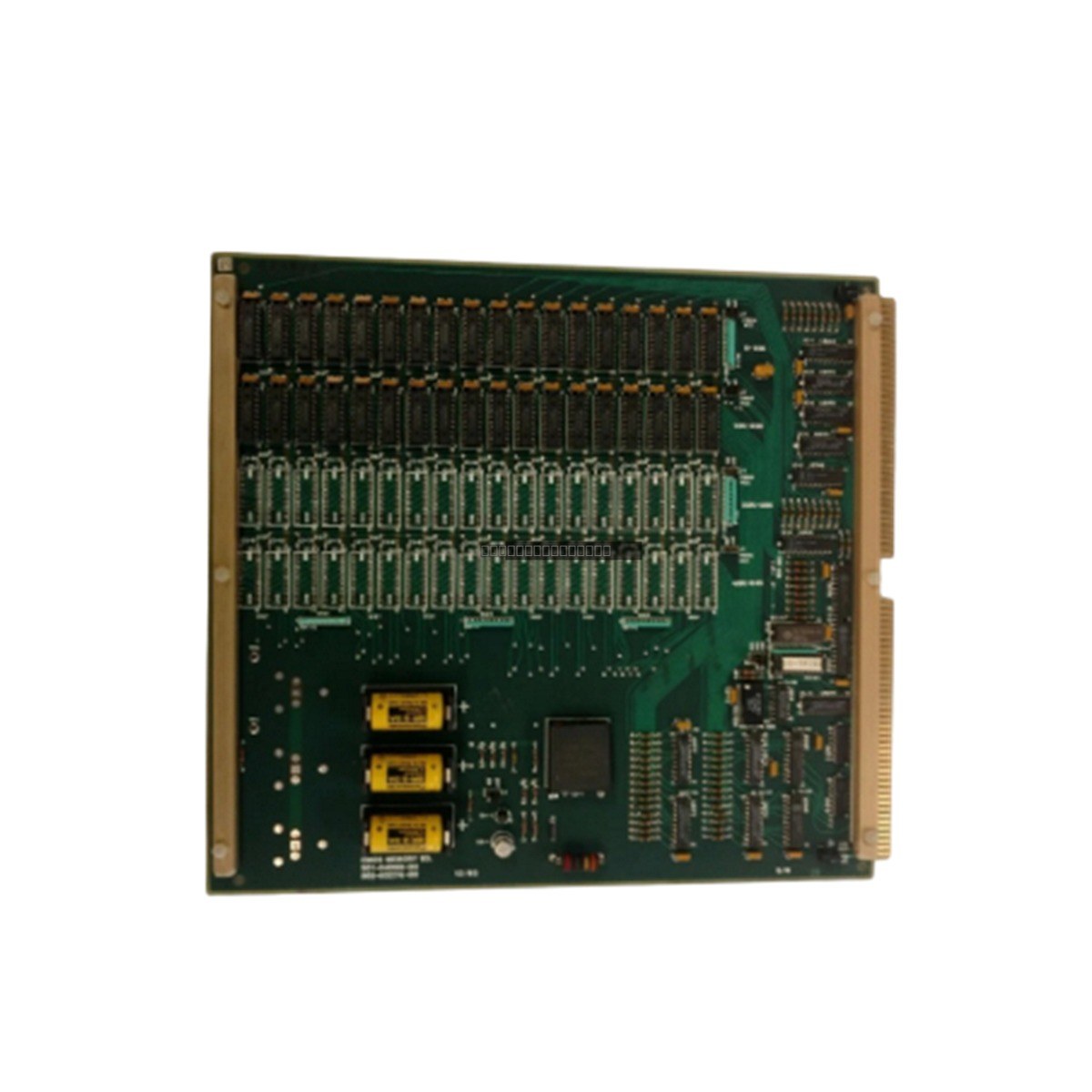

The General Electric 502-03274-00 / 501-04090-00 is a CMOS Memory Board designed for use within the Mark VIe control system architecture. This PC board assembly provides reliable volatile memory storage for critical control logic and operational data, ensuring high-speed access and stability within the Mark VIe environment.
Features
Designed specifically for compatibility with GE Mark VIe control systems.
Supports memory capacities ranging from 128KB to 1MB.
Standardized PC board assembly for direct integration into system racks.
Robust construction designed for industrial control environments.
Technical Specifications
Product Model
502-03274-00 / 501-04090-00
Component Type
CMOS Memory Board
Operating Voltage
+5V DC
Memory Capacity
128KB to 1MB
Operating Temperature
0 degC to 60 degC
Storage Temperature
-40 degC to 85 degC
Humidity
5% to 95% non-condensing
Installation Guidelines
Ensure the control system power is fully disconnected before attempting to install or remove the memory board.
Handle the board using proper electrostatic discharge (ESD) prevention measures to avoid damaging sensitive CMOS components.
Verify that the board is correctly seated in the designated slot within the Mark VIe rack to ensure proper backplane connectivity.
Maintain adequate ventilation within the cabinet to ensure the operating temperature remains within the specified 0 degC to 60 degC range.
Check for secure connection of all board-to-backplane pins before restoring power to the system.
FAQ
What is the primary function of this board? This is a CMOS memory board used in the GE Mark VIe system to store configuration or operational data required for control processing.
Is this board compatible with other Mark series systems? This specific part is engineered for the Mark VIe series. Please verify your system's specific hardware requirements before installation.
What are the power requirements for this module? The board operates on a standard +5V DC supply provided by the system backplane.
