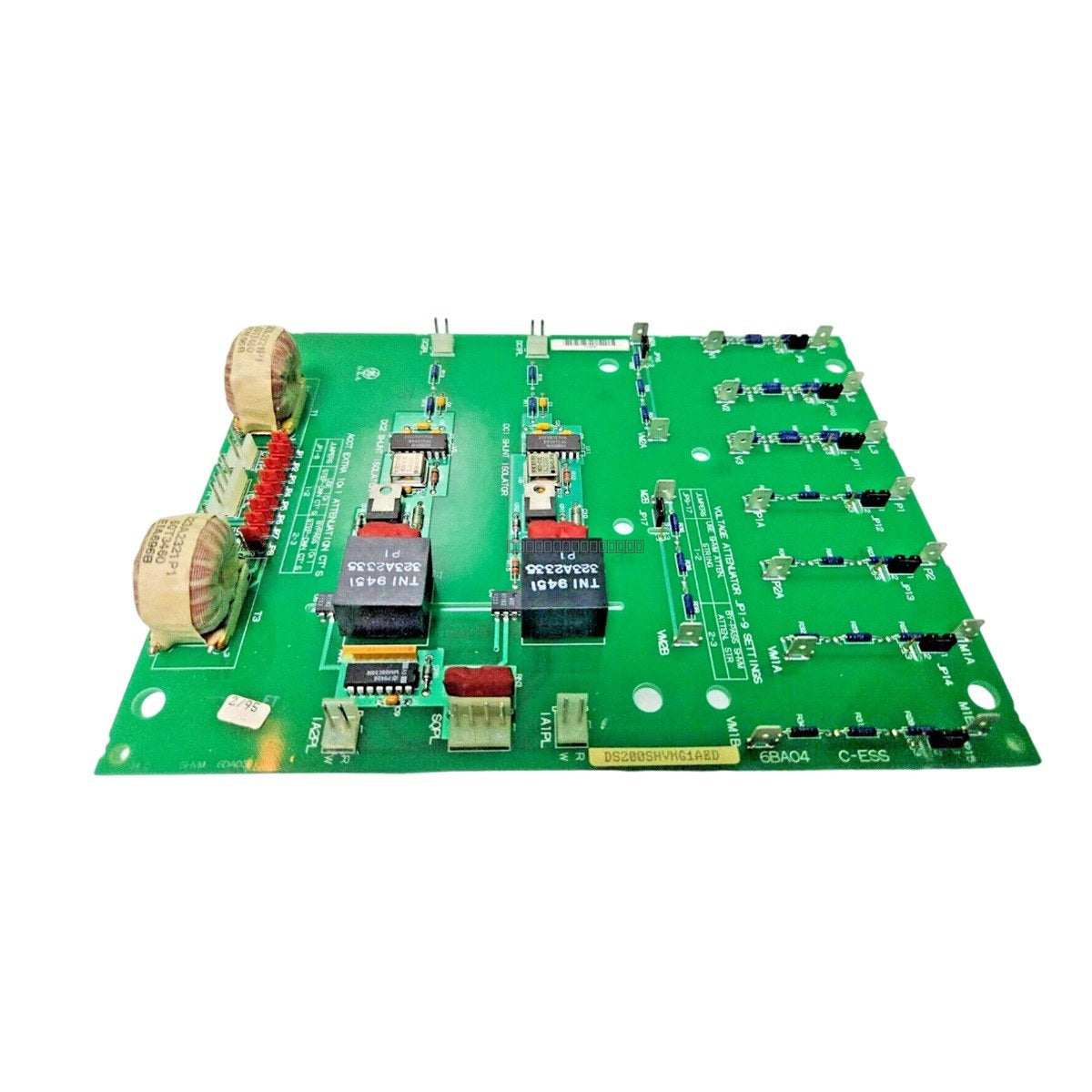

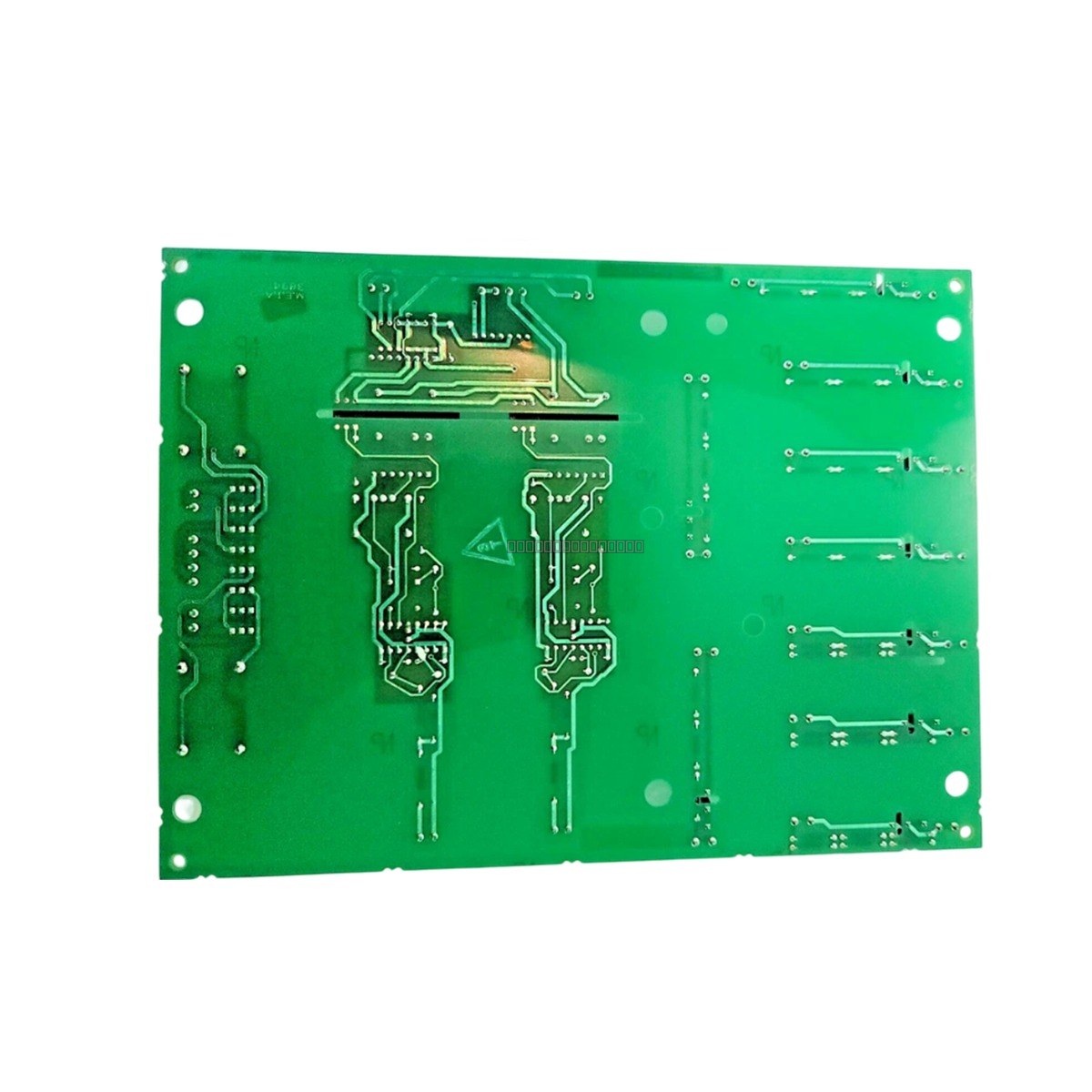

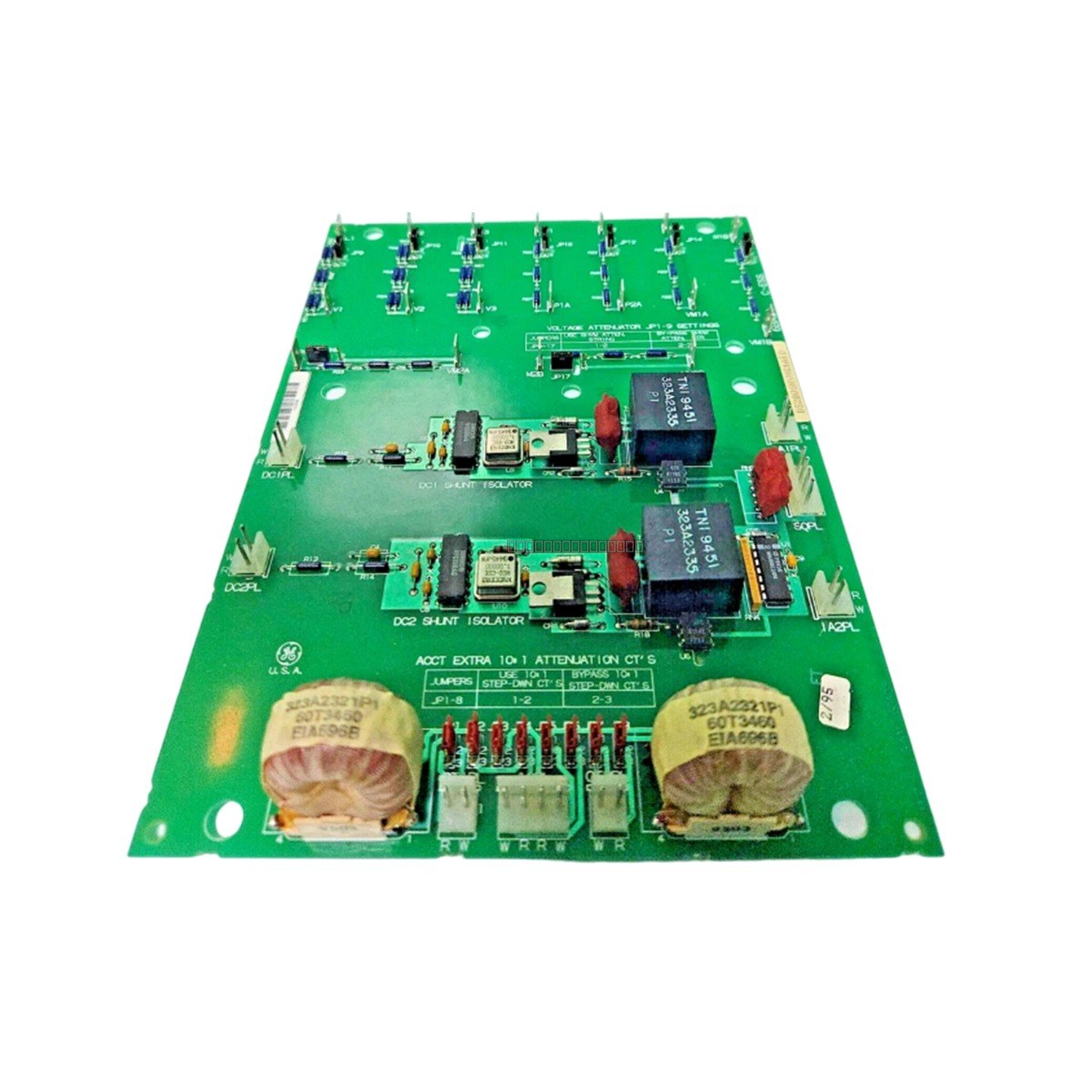

GE Fanuc DS200SHVMG1AED SCR High Voltage M-Frame Interface Board

Description

The GE Fanuc DS200SHVMG1AED is an SCR High Voltage M-frame interface board specifically engineered for the Mark V Speedtronic control system. This component serves as a critical interface within GE drives and exciters, managing the high-voltage thyristor firing sequences essential for industrial power regulation. As a core element of the legacy Speedtronic control architecture, it remains integral to the operation of power plants and large-scale industrial drives. The board provides advanced signal conditioning and reliable gate-pulse transmission, which are vital for maintaining synchronization and protecting high-voltage components. By ensuring precise control feedback, the DS200SHVMG1AED helps mitigate harmonic distortions and prevents catastrophic failures, thereby extending the operational lifespan of aging infrastructure and minimizing unscheduled maintenance events.

Features

• Interface Design: Features four primary critical connectors designed for robust communication between the control processor and the SCR bridges.
• Signal Conditioning: Integrated 10:1 current transformer attenuation, allowing the board to accurately monitor high-magnitude AC line currents without saturating input logic.
• Logic Calibration: Includes 17 configurable jumper switches, providing the versatility required to adapt the board to specific drive exciters and operational parameters.
• Revision Hierarchy: Designated by Functional Revision 1 (A), Functional Revision 2 (E), and Artwork Configuration Revision (D), ensuring optimized circuit traces and improved component longevity.

Applications

This interface board is used exclusively within GE Speedtronic Mark V drive and exciter systems. It is commonly deployed in power generation facilities, heavy industrial motor control centers, and large-scale power regulation infrastructure where precise thyristor firing control is required.

Technical Specifications

Installation Guidelines

• ESD Protection: Always use a grounded wrist strap and anti-static mat when handling the PCB to prevent damage to sensitive CMOS components.
• Power Down: Ensure all power to the drive or exciter cabinet is completely isolated and locked out before attempting to remove or install the board.
• Seating: Ensure the board is fully seated in the M-frame slot. Verify that all four critical connectors are properly aligned and firmly engaged to prevent intermittent signal loss.
• Configuration: Verify the 17 jumper settings against the site-specific documentation or the original board configuration before commissioning to ensure compatibility with the drive's firing logic.
• Environment: Maintain the cabinet environment within the specified 0 to 60 deg C range and ensure the enclosure is free of conductive dust or moisture.

FAQ

What does the suffix AED signify in the model number?
The suffix represents the revision history: Functional Revision 1 (A), Functional Revision 2 (E), and Artwork Configuration Revision (D).

Is this board compatible with Mark VI systems?
No, this board is specifically designed for the GE Speedtronic Mark V architecture. It is not compatible with Mark VI or other control platforms.
