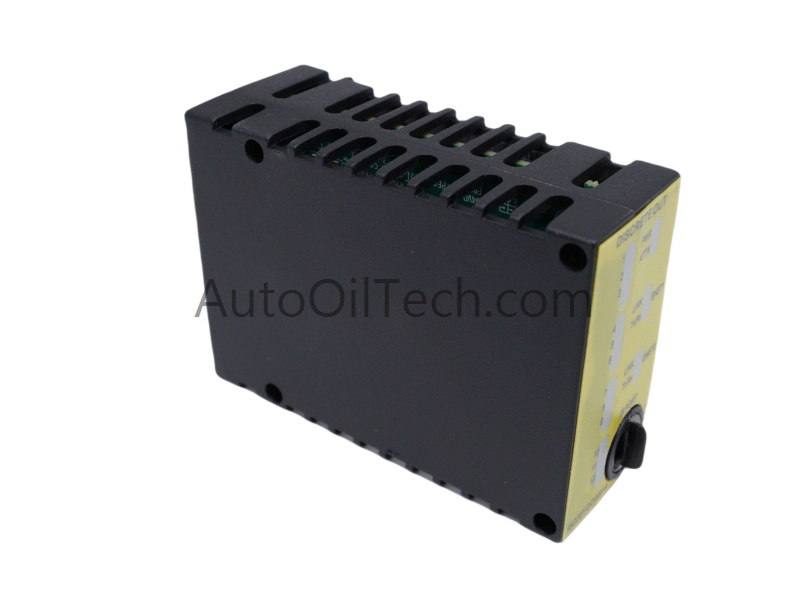

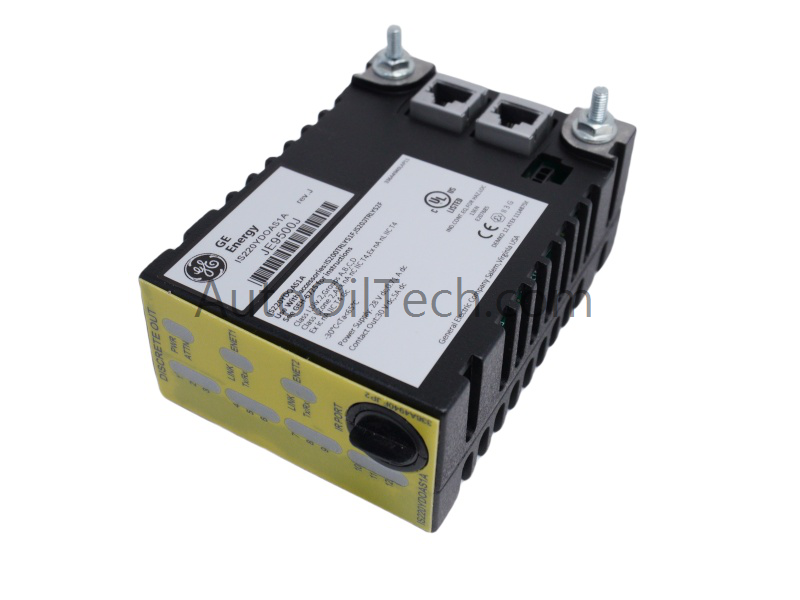

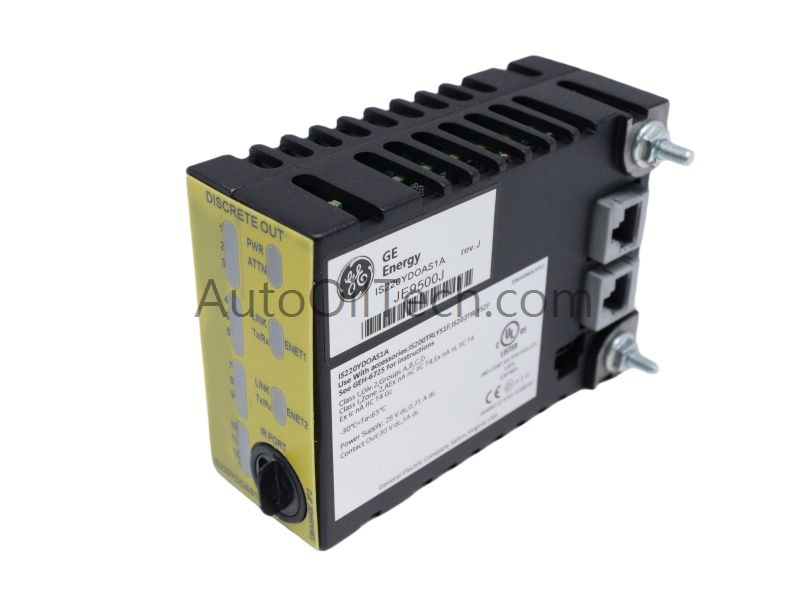

The General Electric IS220YDOAS1A is a discrete output pack module within the EX2100 product family. Designed for turbine control systems, it provides reliable relay output management and integrates with up to two I/O Ethernet networks. Compact dimensions of 13x8.2x6cm and a weight of 0.36kg make it suitable for distributed control system (DCS) environments.
Technical Specifications
Parameter
Value
Model Number
IS220YDOAS1A
Module Type
Discrete Output Pack
Manufacturer
GE
Product Range
EX2100
Condition
Brand New
Weight
0.36 kg
Dimensions
13 x 8.2 x 6 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
DCS
Status
Active
Communication Service
Ethernet router
Functional Description
The GE IS220YDOAS1A consists of an acquisition board and a common processor board, enabling control of up to twelve relays with feedback from terminal boards. Outputs are transmitted via a DC-37 pin connector for direct connection.
It supports both TMR (Triple Modular Redundancy) and simplex configurations. In TMR setups, three I/O packs are required, while simplex requires only one. Built-in self-diagnostics include power-up tests for processor hardware, flash memory, Ethernet ports, and RAM, with results accessible through ToolboxST software.
Applications and Compatibility
The IS220YDOAS1A is widely used in GE Mark VI/EX2100 turbine control systems for managing discrete outputs in gas, steam, and wind turbine applications. Its redundancy options, diagnostic features, and LED indicators ensure reliable performance and simplified maintenance in industrial automation environments.
