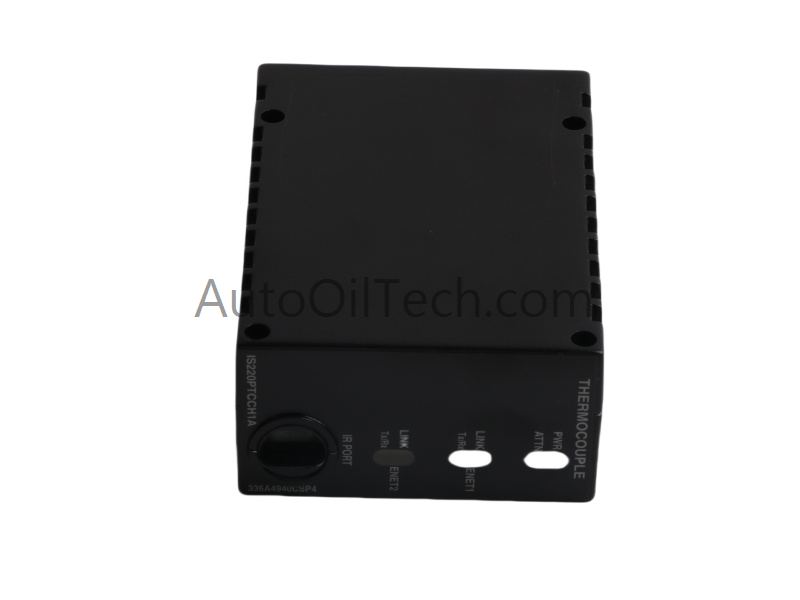

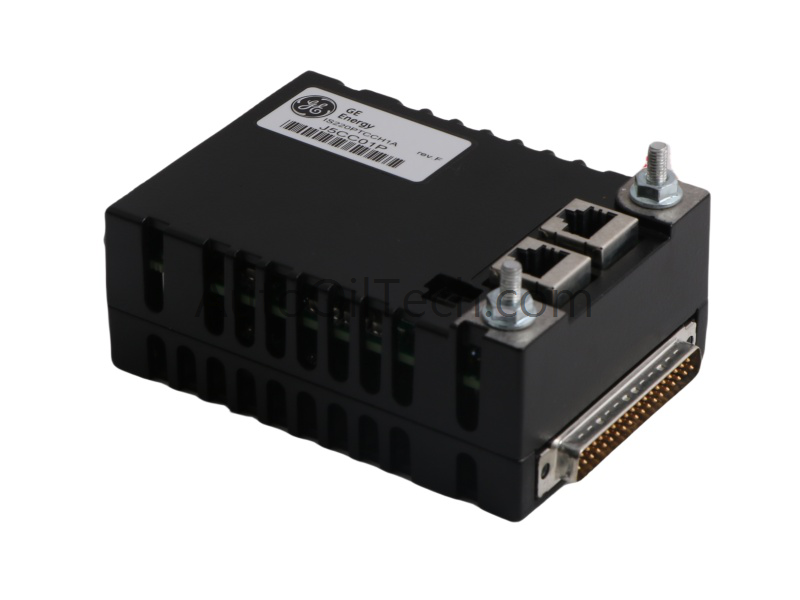

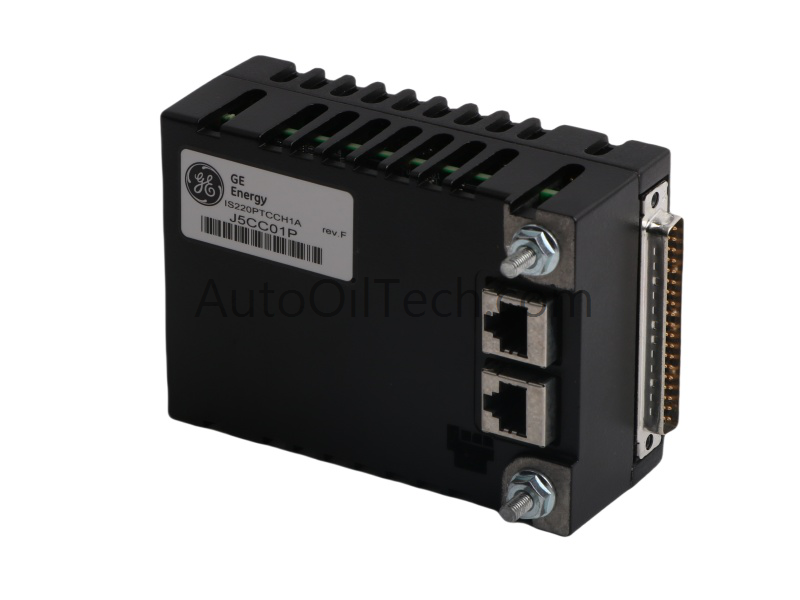

The IS220PTCCH1A Thermocouple Input Module by General Electric is engineered for turbine-specific applications within the EX2100 excitation control system. It supports Mark VI and Mark VIe platforms and delivers high-accuracy temperature acquisition for industrial turbine environments.
Technical Specifications
Specification
Detail
Model Number
IS220PTCCH1A
Product Series
EX2100
Manufacturer
General Electric (GE)
Module Type
Thermocouple Input Module
System Compatibility
DCS / Mark VI / Mark VIe
Dimensions (cm)
12.8 × 8.2 × 6
Weight
0.38 kg
Communication Interface
Ethernet router
HS Code
8537101190
Product Origin
USA
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Performance & Features
The IS220PTCCH1A integrates a BPPx processor board and a dedicated acquisition board for thermocouple input. It supports E, J, K, S, and T thermocouple types, both grounded and ungrounded, with a voltage range of -8 to 45 mV. Thermocouples can be installed up to 984 feet from the I/O panel, with cable resistance up to 450 Ω.
Application & Compatibility
The IS220PTCCH1A is ideal for gas, steam, and hydro turbine control systems requiring robust temperature monitoring. It replaces legacy modules from the Mark V series and integrates seamlessly with EX2100 setups. Compatible with other GE modules such as IS220PAICH1A and IS220PRTDH1A, it supports scalable upgrades and long-term system reliability.
