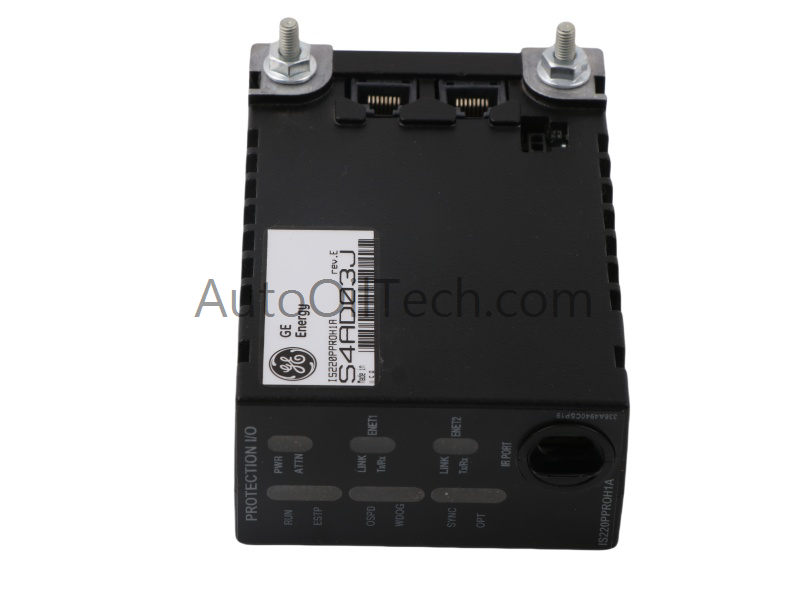

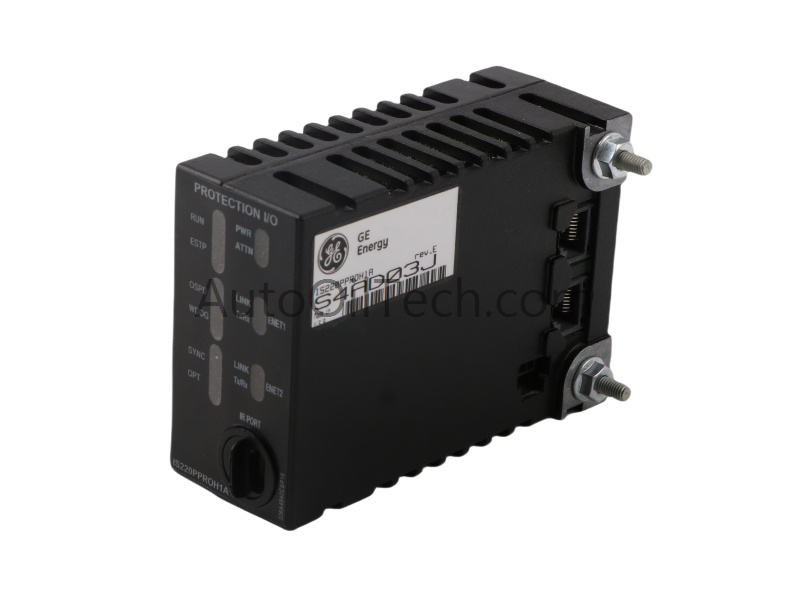

The General Electric IS220PPROH1A is a specialized backup turbine protection module within the EX2100 product range. Unlike conventional PCBs, it is a modular assembly designed for integration into GE’s Mark VI Turbine Control System. Supporting gas, steam, and wind turbines, it leverages GE’s Speedtronic technology to deliver reliable turbine control and emergency trip functionality.
Technical Specifications
Parameter
Value
Model Number
IS220PPROH1A
Module Type
Backup Turbine Protection
Manufacturer
GE
Product Range
EX2100 / Mark VI
Condition
Brand New
Weight
0.36 kg
Dimensions
13 x 8.2 x 6 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
DCS
Status
Active
Communication Service
Ethernet router
Functional Description
The GE IS220PPROH1A interfaces directly with turbine field devices, reducing instrumentation needs and improving reliability. It works with the TREAH_A terminal board and is commonly used in emergency trip applications for aeroderivative turbines. The module supports wiring lengths up to 1,000 feet with 18 AWG cable for voltage sensing.

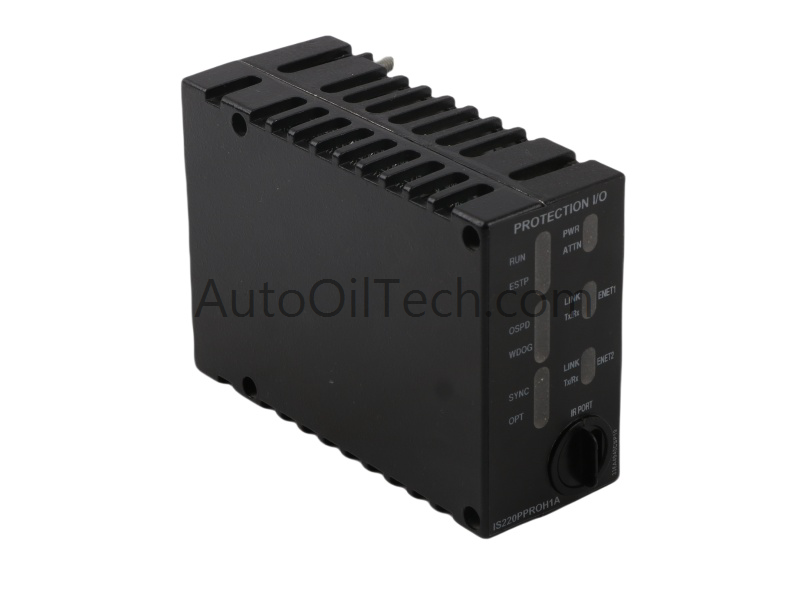

It features three speed signal inputs—deceleration, acceleration, and overspeed—alongside hardware-based overspeed protection. The front faceplate includes LED indicators for PWR/ATTN, LINK/TxRx, and ENET ports. Equipped with a high-speed processor, dual 10/100 Ethernet ports, and internal temperature monitoring, the IS220PPROH1A ensures robust turbine protection. Notably, it does not support auto-reconfiguration when swapping P-Pack types and is identified by its A-rated functional revision.
Applications and Compatibility
The IS220PPROH1A is essential for turbine protection in GE’s Mark VI Series, supporting gas, steam, and wind turbine systems. It enhances durability, reduces maintenance, and ensures safe operation in critical industrial environments. Its compatibility with EX2100 architectures makes it a reliable choice for power generation and heavy automation sectors.
