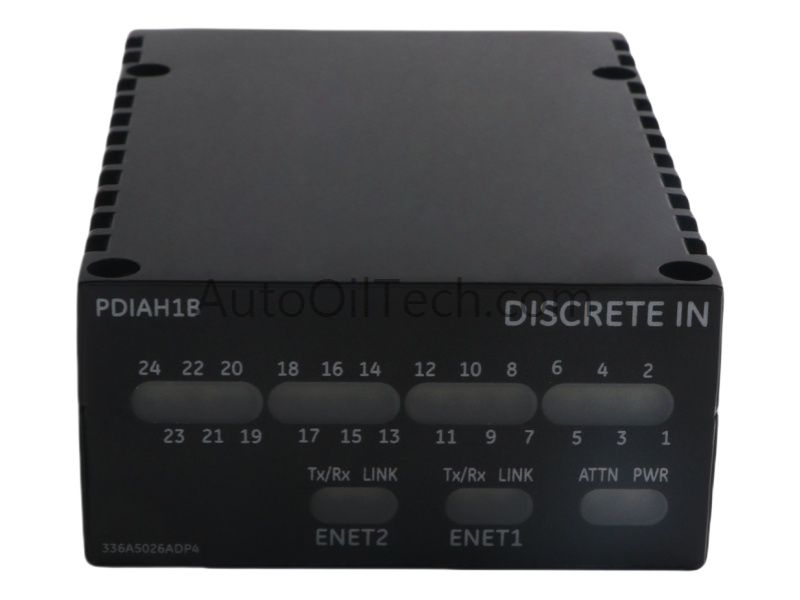

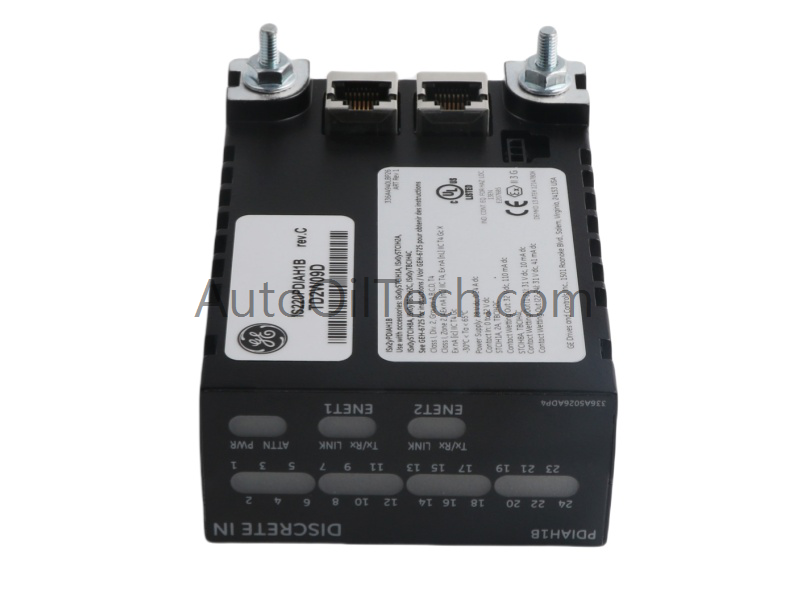

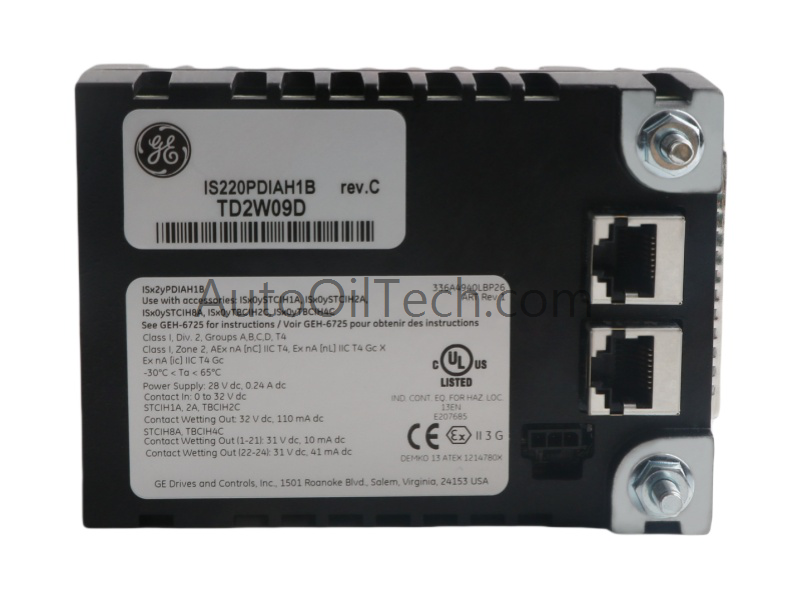

The General Electric IS220PDIAH1B I/O Pack supports Mark VIe turbine and industrial control systems with reliable discrete‑signal acquisition and robust environmental performance. Designed for both hazardous and non‑hazardous locations, this module provides stable operation in demanding power‑generation environments.
Functional Design
The GE IS220PDIAH1B interfaces with multiple GE terminal boards, including IS200STCIH1A, IS400TBCIH2C, and other Mark VIe power‑distribution boards. Its nominal 24 VDC rating (28.6 VDC maximum) supports contact inputs up to 32 VDC, ensuring stable performance across diverse industrial applications.
Technical Specifications
Key Parameters
Parameter
Value
Model Number
IS220PDIAH1B
Product Type
I/O Pack
Series
Mark VIe
Manufacturer
General Electric
System
DCS
Weight
0.36 kg
Dimensions
8.2 cm × 12.2 cm × 6 cm
Origin
USA
Condition
Brand New
HS Code
8537101190
MOQ
1
Lead Time
In Stock
Communication
Ethernet router interface
Nominal Voltage
24 VDC (max 28.6 VDC)
Input Support
Contact inputs up to 32 VDC
Operating Temperature
−30 °C to +65 °C
Certifications
UL hazardous and non‑hazardous locations
Compatible Boards
IS200STCIH1A, IS400TBCIH2C, Mark VIe PDBs
Architecture
Mark VIe discrete I/O
Additional Technical Notes
The IS220PDIAH1B supports hazardous‑location deployment with full UL certification.
Wide voltage tolerance ensures stable operation in fluctuating power conditions.
The module integrates with multiple terminal boards for flexible system design.
Rugged construction supports continuous operation in harsh turbine environments.
Applications and Compatibility
The General Electric IS220PDIAH1B supports gas turbines, steam turbines, and industrial automation systems requiring reliable discrete‑signal monitoring. It integrates with Mark VIe Speedtronic architectures and suits power‑generation facilities that demand high‑reliability I/O performance.
