The General Electric IS210BPPCH1ACA is a high-performance I/O expansion board within the EX2100 product family. Designed for compatibility with TMR and Dual terminal boards, it integrates seamlessly into GE’s Mark VI Turbine Control System. With dimensions of 33.5x17.5x3.5cm and a weight of 0.56kg, this daughterboard provides reliable functionality in demanding DCS environments.
Technical Specifications
Parameter
Value
Model Number
IS210BPPCH1ACA
Module Type
I/O Expansion Board
Manufacturer
GE
Product Range
EX2100 / Mark VI
Condition
Brand New
Weight
0.56 kg
Dimensions
33.5 x 17.5 x 3.5 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
DCS
Status
Active
Communication Service
Ethernet router
Functional Description
The GE IS210BPPCH1ACA supports automatic reconfiguration when replacing older BPPB units with BPPC components. It enables branding through ToolboxST, ensuring validated code sets for Safety Instrumented Functions (SIF). IEC 61511 certification is required before deployment in functional safety applications.

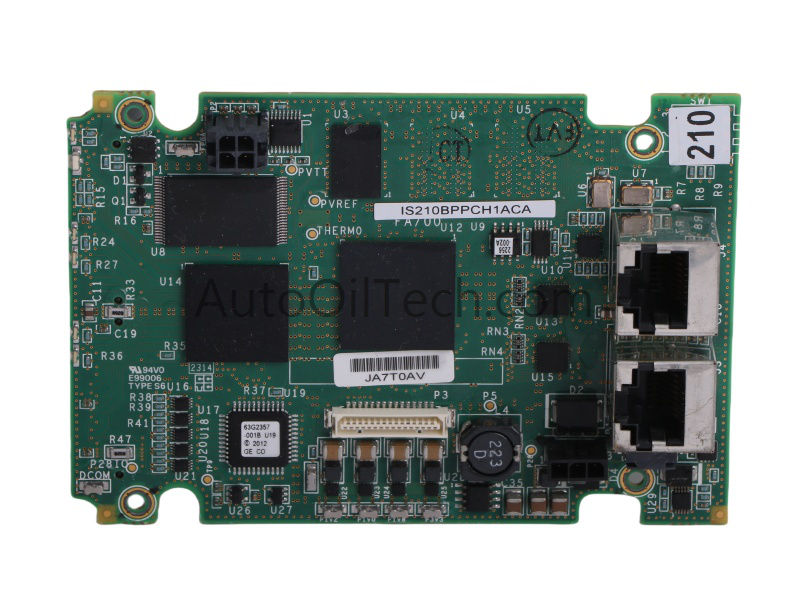

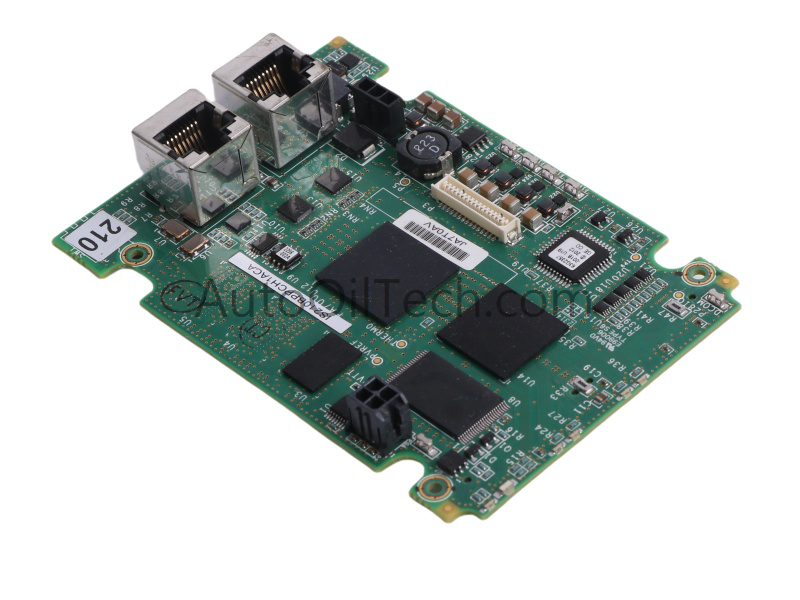

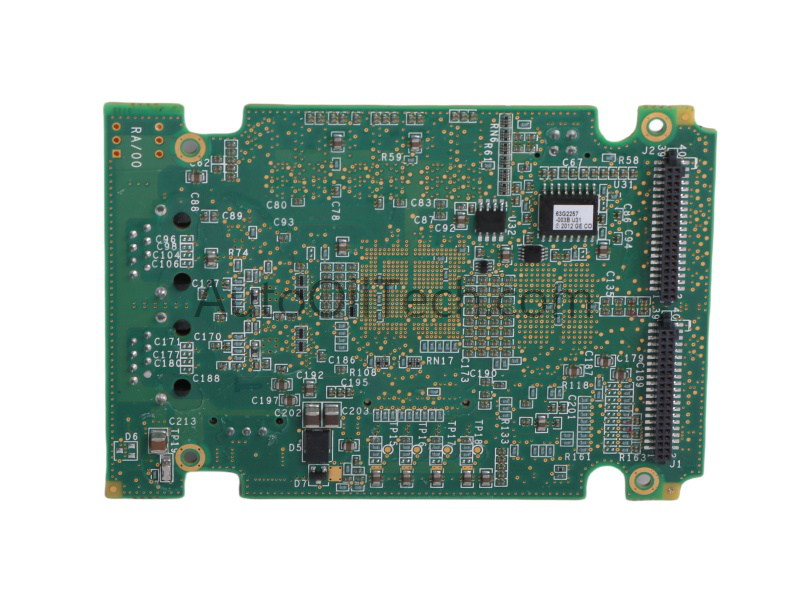

Physically, the board features two edge ports, integrated circuits, transistors, resistors, capacitors, chokes, diodes, and a fuse. Jumpers and test points enhance functionality, while factory-drilled holes reinforced with conductive material ensure durable connections. Built with Surface-Mount Technology (SMT), components are distributed across both sides of the board, each labeled for easy identification.
Applications and Compatibility
The IS210BPPCH1ACA is engineered for GE’s Mark VI Turbine Control System, offering advanced revision capabilities compared to earlier assemblies. It supports turbine control applications requiring high reliability, modular expansion, and compliance with functional safety standards. Industries such as power generation and heavy automation benefit from its robust design and compatibility with EX2100 architectures.
