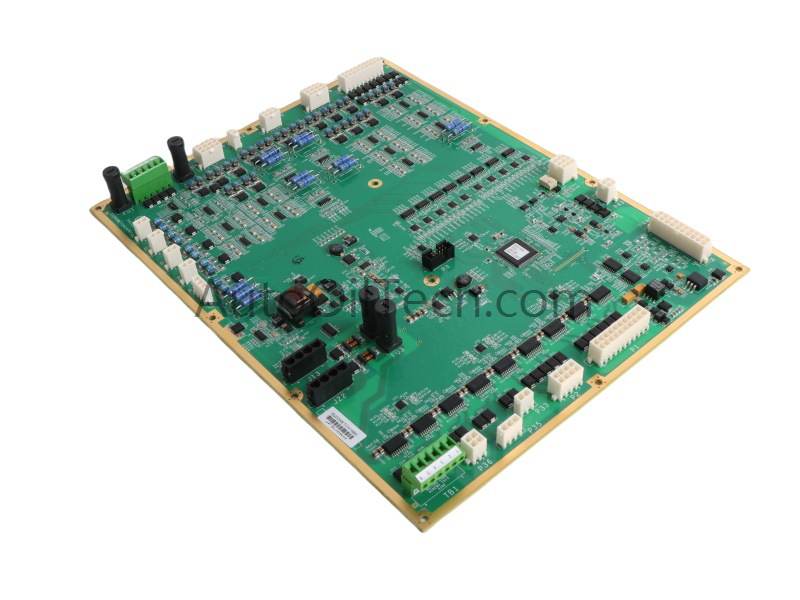

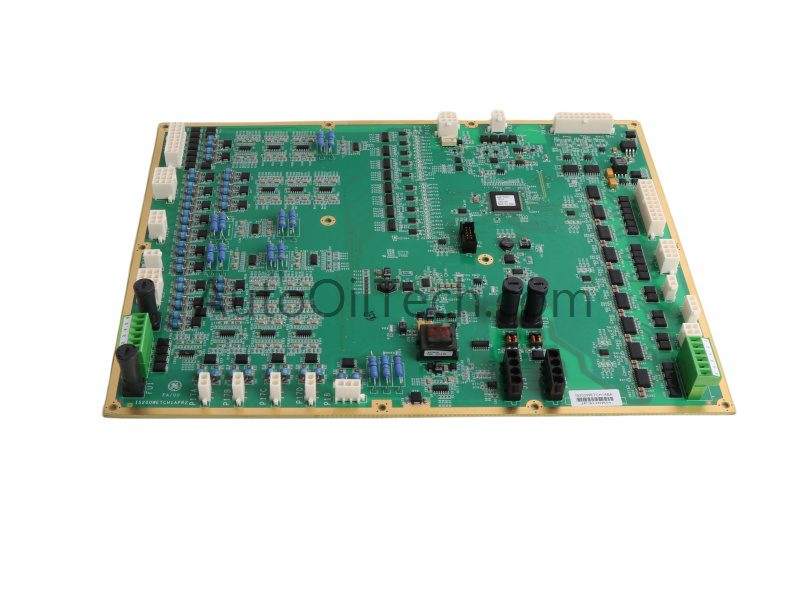

The IS200WETBH1BAA Elevator Control Board by General Electric is a densely populated module engineered for the EX2100 excitation system and Mark VI turbine control platform. It supports critical turbine functions such as synchronization, flame detection, and shaft voltage monitoring.
Technical Specifications
Specification
Detail
Model Number
IS200WETBH1BAA
Product Series
EX2100
Manufacturer
General Electric (GE)
Module Type
Elevator Control Board
System Compatibility
DCS / Mark VI
Dimensions (cm)
12.8 × 8.2 × 6
Weight
0.38 kg
Communication Interface
Ethernet router
HS Code
8537101190
Product Origin
USA
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Component Highlights
The IS200WETBH1BAA features over 65 connectors, including female jacks (4–12 positions) and three vertical male headers: 10-pin (P1), 6-pin (P2), and 4-pin (P3). It includes:
30+ relays in two types
10 fuses
7 heat sinks
9 voltage regulators
2 jumpers
1 switch
50+ integrated circuits
Coil inductors, varistors, and test points
High-voltage electrolytic capacitors and metal film resistors

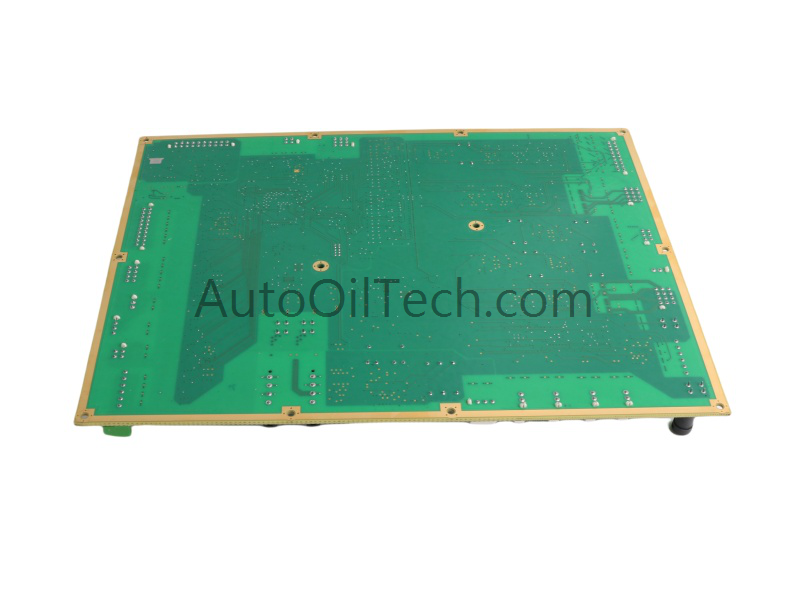

A copper grounding strip runs along the board’s edge, with factory-drilled mounting holes for secure installation.
Application & Compatibility
The IS200WETBH1BAA is optimized for Mark VI Speedtronic systems and supports both general-purpose and turbine-specific I/O. It integrates seamlessly with other EX2100 modules such as IS200EGPAG1A and IS200EMIOH1A, making it ideal for upgrades, replacements, or system expansions in gas and steam turbine environments.
