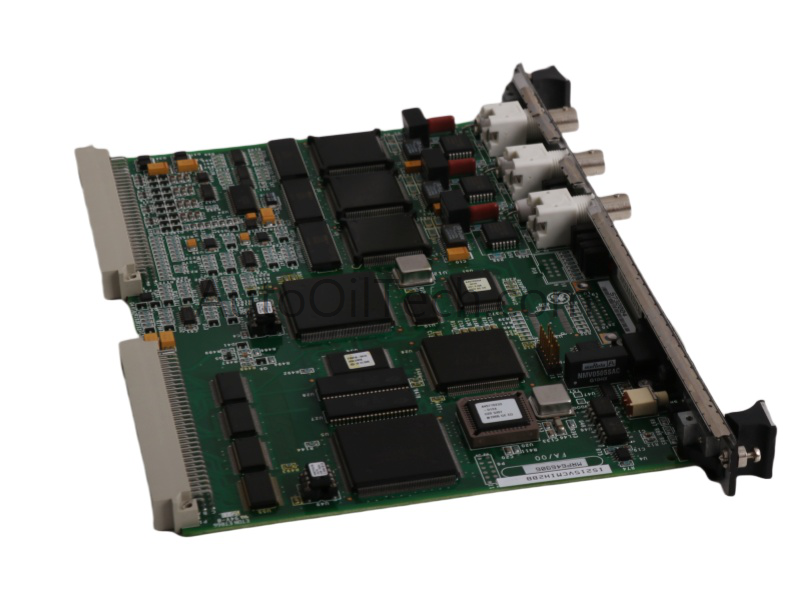

General Electric IS200VSVOH1BDC Servo Control Board

Description

The GE IS200VSVOH1BDC, also cataloged as the IS200VSVOH1B servo control board, operates as the primary hardware module for executing electrohydraulic servo‑valve control within the Mark VI platform. The board integrates a Texas Instruments TMS320C32 processor to run internal loop‑control algorithms and interface with TSVO terminal boards for valve actuation and LVDT‑based position feedback.

Suffix Breakdown & Model Matrix

• The IS200VSVOH1BDC identifier does not include decomposable suffix elements.

• No variant matrix is defined in the provided documentation.

• The part number is treated as a fixed Mark VI VSVO hardware designation.

Hardware Specifications

• Part Number: IS200VSVOH1BDC

• Brand: GE

• Series: Mark VI

• Product Type: Servo Control Board

• Country of Manufacture: United States

• Processor: Texas Instruments TMS320C32

• Operating Temperature: 0 deg C to 60 deg C

• Technology: Surface‑mount PCB

• Availability: In stock

Profinet / EtherNet/IP Deterministic Networks (Drive/Control Integration)

• The VSVO board aligns with Mark VI deterministic control‑loop timing, ensuring stable servo‑valve actuation.

• Internal firmware structures maintain compatibility across VSVO revisions, supporting mixed‑revision controller racks.

• I/O density scaling is achieved through distribution of four servo channels across two TSVO terminal boards.

• Trace routing minimizes cross‑talk between LVDT feedback channels and servo‑drive outputs.

Functional Description

• Controls four electrohydraulic servo valves used for steam and fuel valve actuation.

• Divides four channels across two TSVO terminal boards for optimized wiring and load distribution.

• Uses LVDT sensors for continuous valve‑position feedback.

• Executes loop‑control algorithms internally using the onboard TMS320C32 DSP.

• Reduces communication latency by performing real‑time control calculations on the board.

• Integrates seamlessly with Mark VI control modules for coordinated turbine and process control.

Frequently Asked Questions (FAQ)

• Q: Can the IS200VSVOH1BDC be inserted or removed under power? A: No. The VME rack must be powered down before installing or removing the VSVO board to avoid backplane damage.

• Q: How many servo channels does the VSVO support? A: Four channels, distributed across two TSVO terminal boards.

• Q: Does the VSVO require external computation for valve control? A: No. The onboard DSP executes the loop‑control algorithm internally.

Field Installation Guidelines

• Maintain ESD protection during handling; the DSP and analog front‑end circuits are MOS‑sensitive.

• Ensure TSVO terminal‑board wiring is correctly assigned to the appropriate servo channels.

• Route LVDT feedback wiring separately from high‑current servo‑valve wiring to avoid induced noise.

• Verify correct seating of the VSVO board in the VME rack before energizing the system.

• Confirm that all valve‑position feedback signals are calibrated after installation.

• Maintain adequate airflow around the board to avoid thermal accumulation in dense enclosures.
