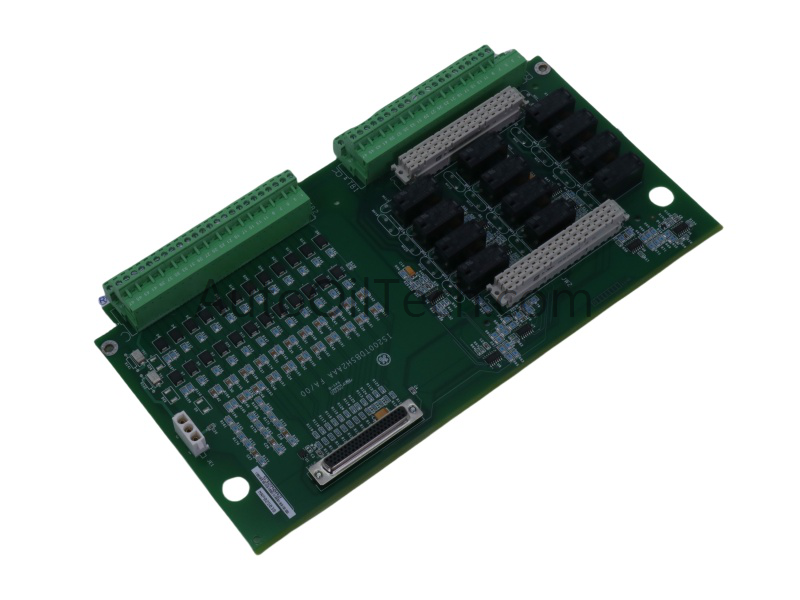

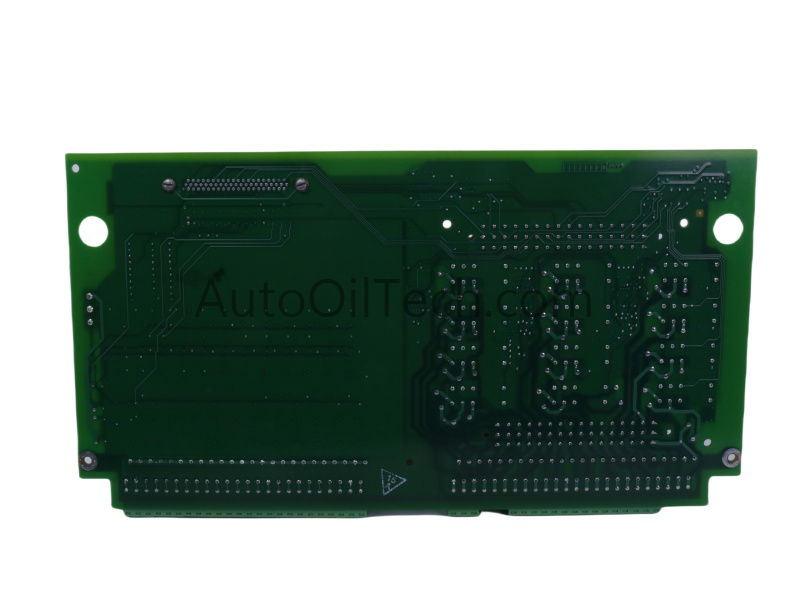

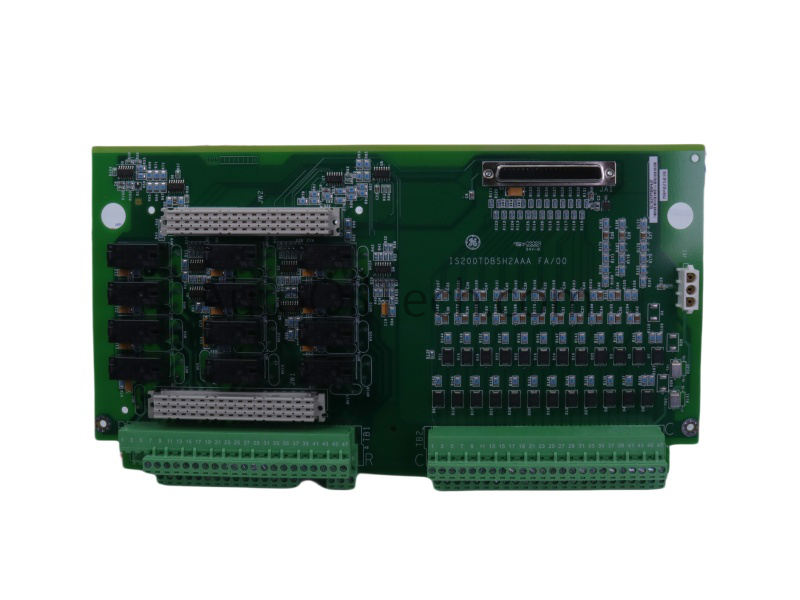

The GE IS200TDBSH2A Discrete Simplex Card supports Mark VIe turbine control systems and manages discrete input and output wiring with stable performance. The board ensures accurate signal handling for gas and steam turbine automation.
Core Features
The IS200TDBSH2A operates on a +24 VDC supply and maintains reliable performance from −40 °C to +70 °C. Two 48‑point terminal blocks simplify field wiring, while a multi‑pin connector supports flexible system interfacing.
Technical Specifications
Parameter
Value
Model
IS200TDBSH2A
Type
Discrete Simplex Card
Product Series
Mark VIe
Terminal Blocks
2 × 48‑point TB1/TB2
Power Supply
+24 VDC
Operating Temp
−40 °C to +70 °C
Dimensions
2.1 × 18.6 × 26.3 cm
Weight
0.22 kg
System
DCS
Communication
Ethernet Router
Origin
USA
HS Code
8537101190
Condition
Brand New
Applications and Compatibility
The IS200TDBSH2A supports turbine control, excitation systems, and industrial automation platforms that require organized discrete signal routing. It integrates seamlessly with Mark VIe racks and EX2100‑based architectures.
Why It Matters
The IS200TDBSH2A improves wiring efficiency and signal reliability through durable construction, high‑density terminal blocks, and broad environmental tolerance. Its design ensures dependable operation in demanding turbine control environments.
