The General Electric IS200SRTDH2ACB belongs to the EX2100 series and functions as a DIN-Rail RTD Terminal Board. It supports DCS systems with Ethernet router communication and ensures reliable integration within turbine excitation control. Its compact design, measuring 15.8x10.5x3.5cm and weighing 0.16kg, makes it suitable for space-constrained installations.
Technical Specifications
Parameter
Value
Model Number
IS200SRTDH2ACB
Module Type
DRL TERMBD RTD
Manufacturer
GE
Product Range
EX2100
Condition
Brand New
Weight
0.16 kg
Dimensions
15.8 x 10.5 x 3.5 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
DCS
Status
Active
Communication Service
Ethernet router
Functional Description

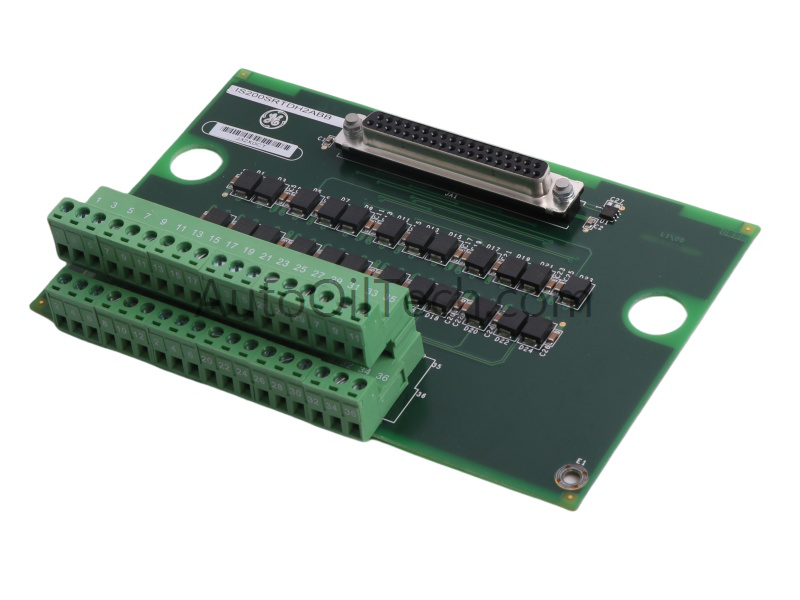

The GE IS200SRTDH2ACB features two vertical terminal blocks with thirty-six numbered silver terminals, enabling secure external connections. A large connector port at the upper edge allows attachment of additional boards. The PCB integrates twenty-four black diodes arranged in two rows, each paired with capacitors for stable performance. These components ensure precise signal handling within excitation control systems.
Applications and Compatibility
The IS200SRTDH2ACB is designed for the GE Speedtronic EX2100 Excitation Control system and supports integration with the Mark VI Turbine Control Series. Its functional number encodes critical design details, ensuring compatibility across GE Mark Series hardware. This module suits industries requiring reliable excitation control, including power generation and heavy industrial automation.
