The IS200ESELH1AAA Exciter Collector Board by General Electric is engineered for the EX2100 excitation control system within the Mark VI turbine platform. This compact module processes up to six gate pulse signals from the EMIO board and routes them to the EGPA gate pulse amplifier. It ensures precise voltage suppression and signal integrity across simplex and TMR configurations.
Technical Specifications
Specification
Detail
Model Number
IS200ESELH1AAA
Product Series
EX2100
Manufacturer
General Electric (GE)
Module Type
Exciter Collector Board
System Compatibility
DCS / Mark VI Turbine Control
Dimensions (cm)
2.1 × 18.6 × 26.3
Weight
0.22 kg
Communication Interface
Ethernet router
HS Code
8537101190
Product Origin
USA
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Component Highlights

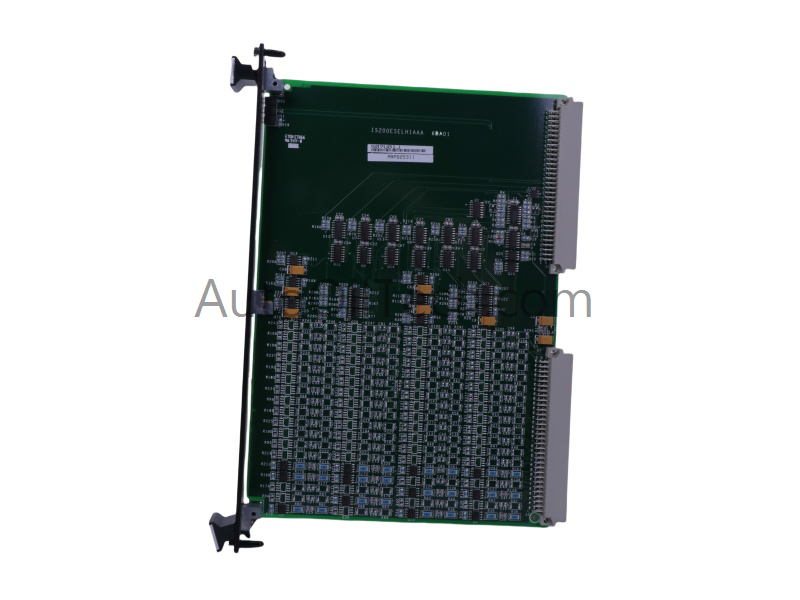

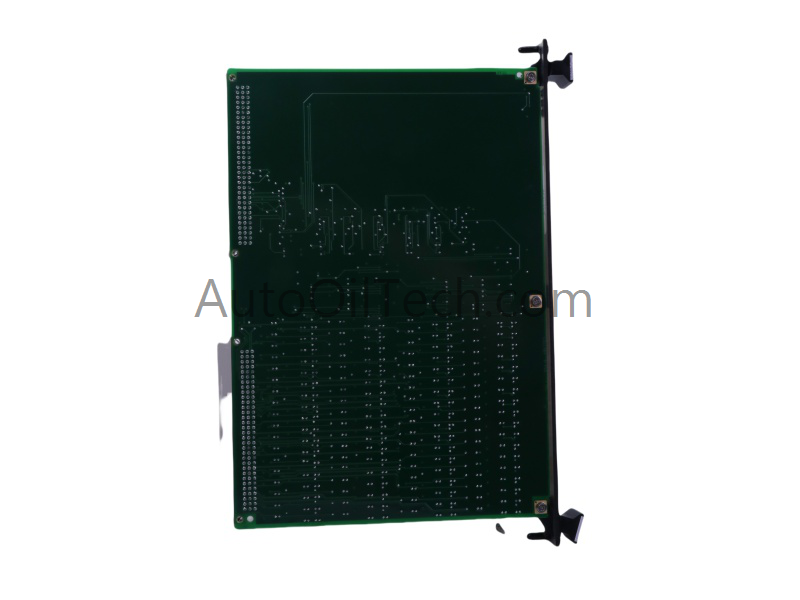

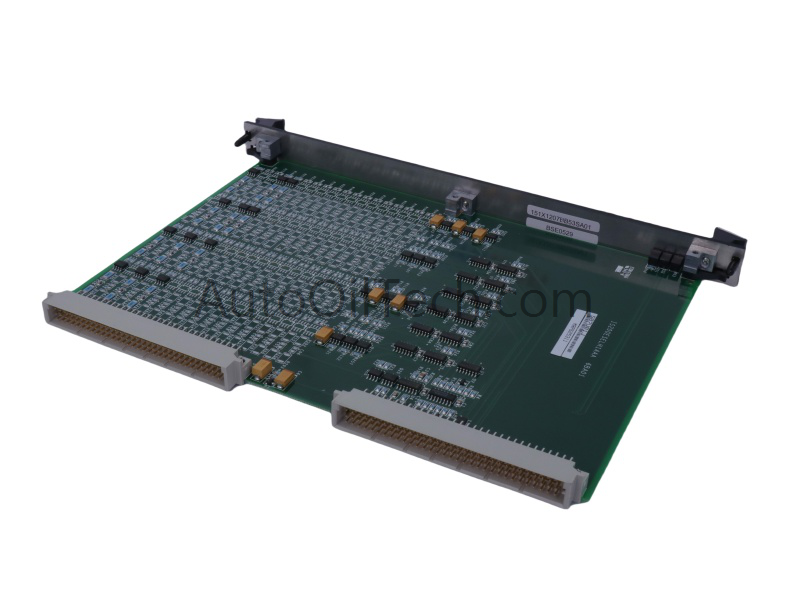

The IS200ESELH1AAA board includes two backplane connectors and a narrow faceplate with three LED indicators: power, active, and gating. Its surface integrates over 200 resistors, along with capacitors, transistors, diodes, and ICs. These components collectively manage energy distribution and voltage limitation within the excitation system.
