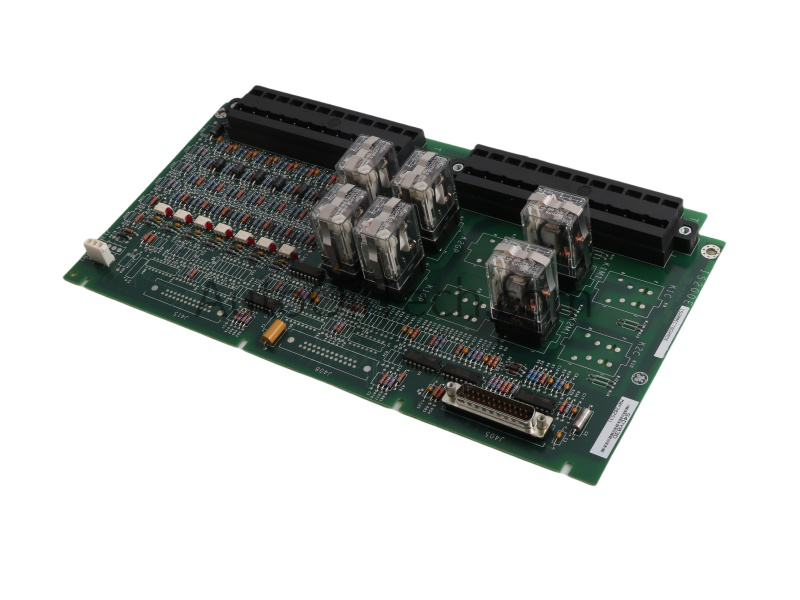

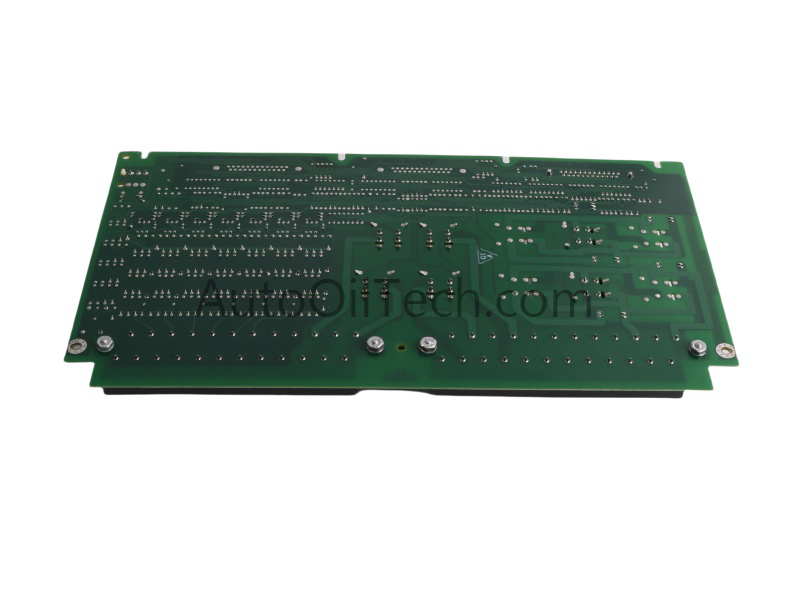

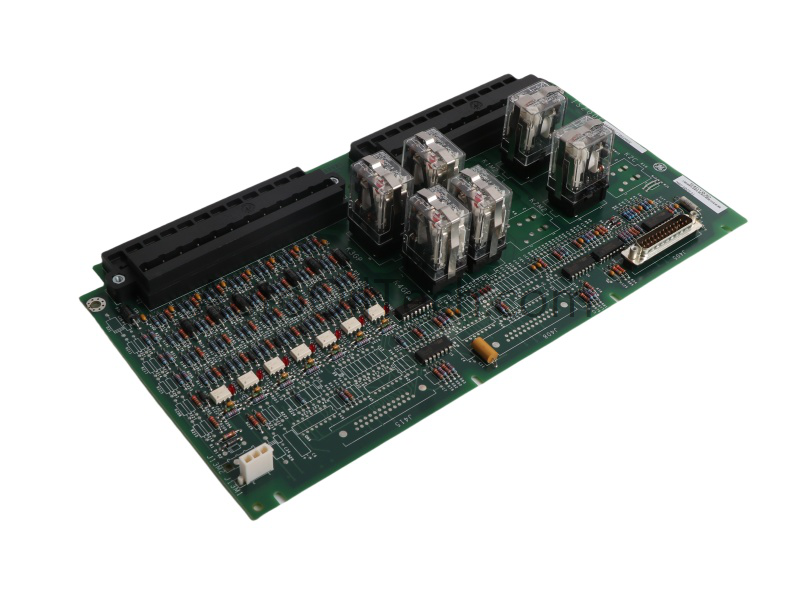

The General Electric IS200ECTBG2ADE is a vital Exciter Contact Terminal Board within the EX2100 excitation control system. Designed for Simplex Mode operation, it ensures precise monitoring and control in turbine power generation. Its robust build, measuring 33x17.7x5.5cm and weighing 0.66kg, supports reliable integration into DCS environments.
Technical Specifications
Parameter
Value
Model Number
IS200ECTBG2ADE
Module Type
Exciter DC Feedback Board
Manufacturer
GE
Product Range
EX2100
Condition
Brand New
Weight
0.66 kg
Dimensions
33 x 17.7 x 5.5 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
DCS
Status
Active
Communication Service
Ethernet router
Functional Description
The GE IS200ECTBG2ADE provides six auxiliary contact inputs, two trip contact outputs, and four Form-C relay outputs. It includes an isolated +70VDC supply for contact wetting, sourced from the EPSM module. Managed by the EMIO board, it transmits logic-level gate pulses to the ESEL board, ensuring stable excitation control. Compatible boards such as EXTB, EACF, and EPCT enhance system functionality. Monitoring functions include the 52G input for generator online status and the 86G input for lockout safety.
Applications and Compatibility
The IS200ECTBG2ADE integrates seamlessly into GE’s EX2100 excitation control systems, supporting turbine monitoring and control in power generation. Unlike the IS200ECTBG1A, which operates in redundant mode, the IS200ECTBG2ADE is optimized for Simplex Mode, making it ideal for applications requiring streamlined control. Industries such as energy production and heavy automation benefit from its reliability and compatibility with other EX2100 modules.
